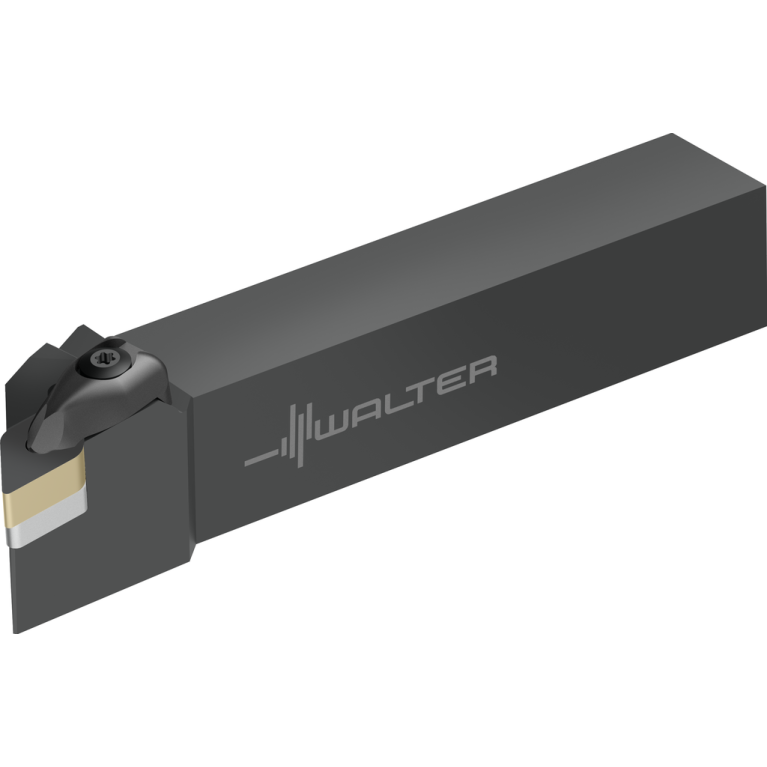

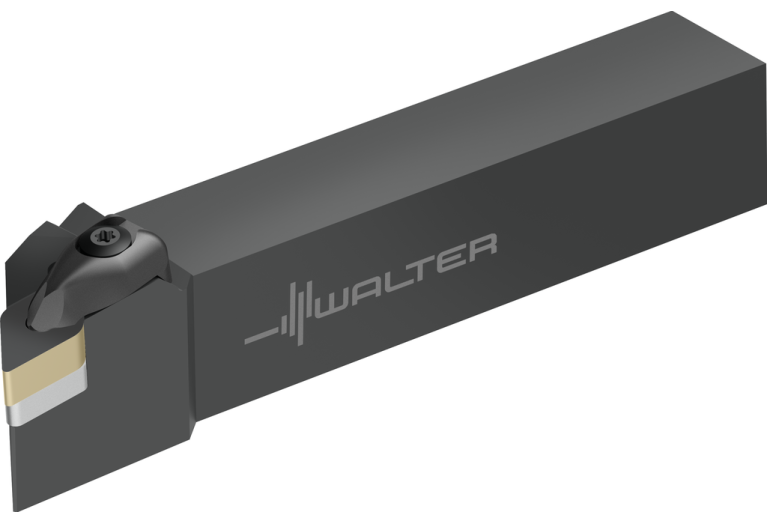

Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning DDJNR103A

DDJNR103A

Артикул: 6347706

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

CEATC Tool cutting edge angle type code

B - Side and front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

VKT10100125

DIN CSW1

DN1104992N

EPSR Insert included angle

55 Degree

FamilyProducts

Shank tool – Rigid clamping DDJN

GAMO Rake angle orthogonal

-6 Degree

HAND Cutting direction

R - Right

HF Functional height

15.875 mm

ID Technical product number

6347706

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A Indicator for ISO cutting plate Pos.A

ISO

VKT01B1010$$$$

ISO CSW1

ISO$DN1104002******

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

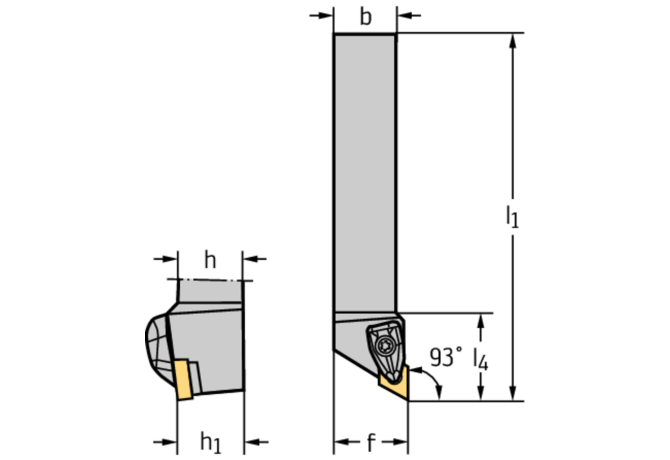

KAPR Tool cutting edge angle

93 Degree

L Cutting edge length

11.6 mm

LAMS Inclination angle

-7 Degree

LF Functional length

101.6 mm

LOC-03 B Shank width

15.875 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

2 Inch

LOC-03 CZCMS Size code

1010

LOC-03 H Shank height

15.875 mm

LOC-03 ISO

VKT01B1010$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT10100125

LPR Protruding length

101.6 mm

MIID Master insert identification

DNMG 332

MTP Clamping type code

Name Identifying order number

DDJNR103A

OAL Overall length

101.6 mm

WF Functional width

22.23 mm

Working process

DDA - External turning,DFA - External form turning

WT Weight of item

0.226 kg
