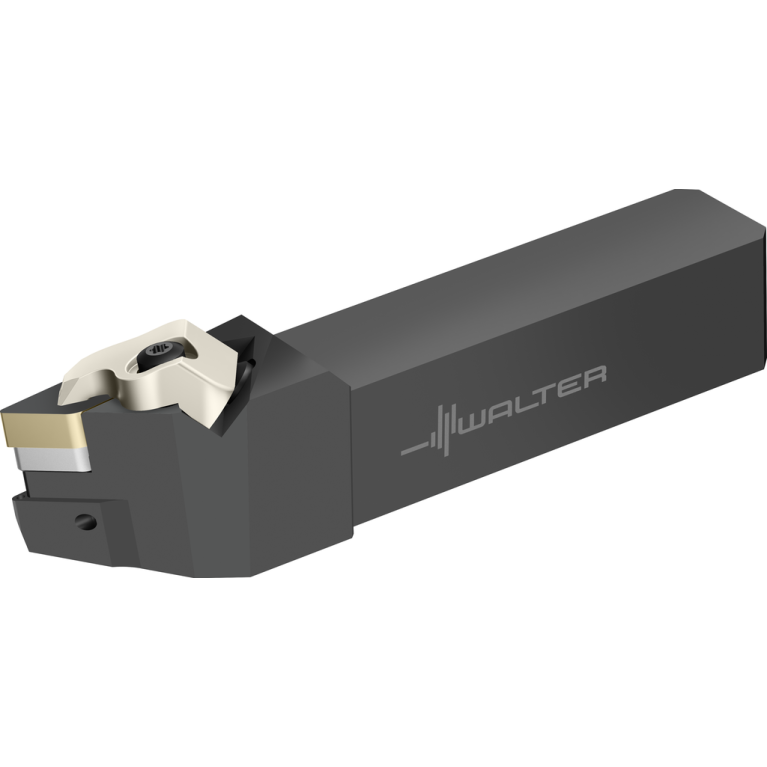

Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning DDJNL2525X11-P

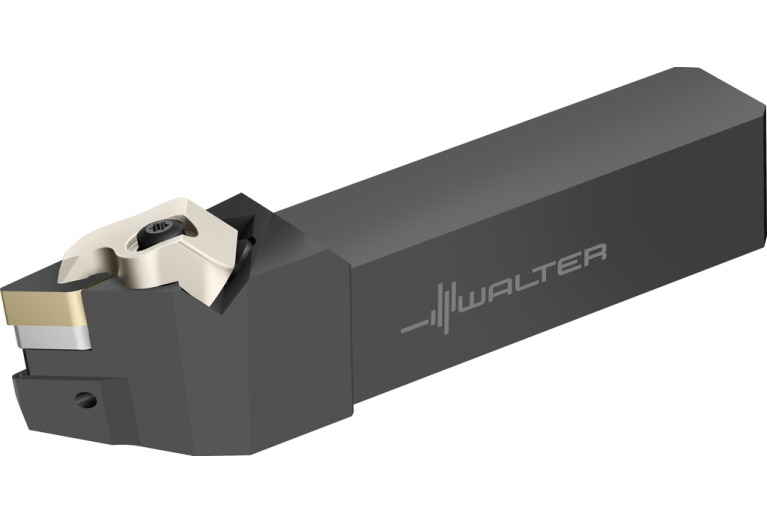

DDJNL2525X11-P

Артикул: 7031632

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

CEATC Tool cutting edge angle type code

B - Side and front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

3 - With Coolant entry, axial concentric and radial

COMPC Company code

W - Walter

CXSC Coolant exit style code

7 - With coolant supply (discharge), axial groove at shank

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

VKT25250115

DIN CSW1

DN1104992N

EPSR Insert included angle

55 Degree

FamilyProducts

Shank tool – Rigid clamping DDJN...-P

GAMO Rake angle orthogonal

-6 Degree

HAND Cutting direction

L - Left

HF Functional height

25 mm

ID Technical product number

7031632

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A Indicator for ISO cutting plate Pos.A

ISO

VKT01A2525$$$$

ISO CSW1

ISO$DN1104002******

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

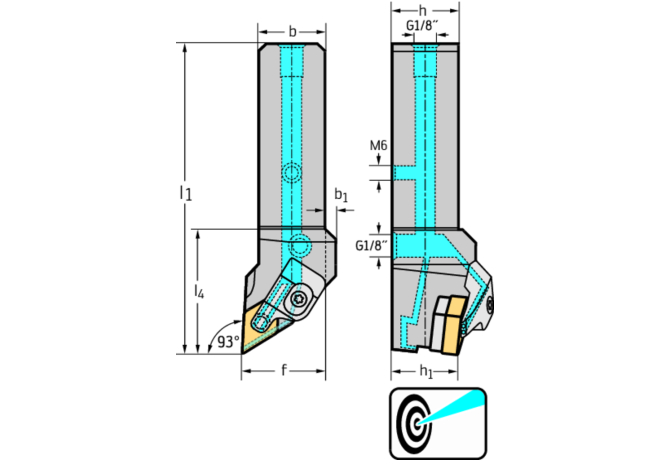

KAPR Tool cutting edge angle

93 Degree

L Cutting edge length

11.6 mm

LAMS Inclination angle

-7 Degree

LF Functional length

140 mm

LOC-03 B Shank width

25 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

2525

LOC-03 H Shank height

25 mm

LOC-03 ISO

VKT01A2525$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT25250115

LPR Protruding length

140 mm

MIID Master insert identification

DNMG 11 04 08

MTP Clamping type code

Name Identifying order number

DDJNL2525X11-P

OAL Overall length

140 mm

WF Functional width

32 mm

Working process

DDA - External turning,DFA - External form turning

WT Weight of item

0.655 kg
