Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning CTGPR1616-11

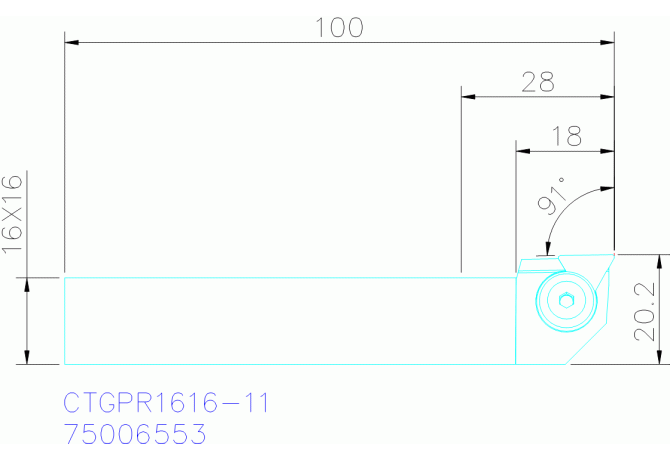

CTGPR1616-11

CTGPR1616-11 CTGPR1616-11

CTGPR1616-11

Seco
Артикул: 75006553
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
VKT16160105
DMIN Minimum bore diameter
16 mm
EPSR Insert included angle
60 Degree
FamilyProducts
CTGPR1616-11
GAMO Rake angle orthogonal
5 Degree
HAND Cutting direction
R - Right
ID Technical product number
75006553
Interface codes
J6 /
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO CSW1
ISO$TP1103**1RB****
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
91 Degree
LAMS Inclination angle
1 Degree
LF Functional length
100 mm
LH Head length
18 mm
LOC-03 B Shank width
16 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
1616
LOC-03 H Shank height
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT16160105
MIID Master insert identification
TP1103
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
CTGPR1616-11
STDDES Standard designation
CTGPR1616-11
THSC Tool holder shape code
A - offset shank design
WF Functional width
20.2 mm
Working process
No working processes available
WT Weight of item
0.198 kg
