Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning CTGPL3232-22

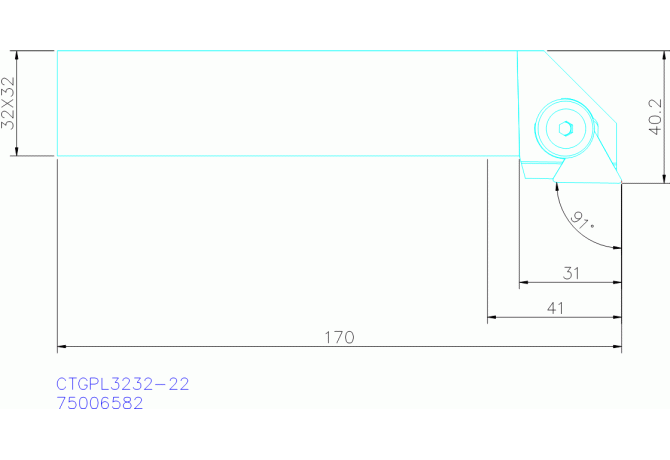

CTGPL3232-22

CTGPL3232-22

Seco

Артикул: 75006582

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

11 Degree

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

1

C1A Insert thickness Pos. A

4.76 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.2 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

VKT32320105

DMIN Minimum bore diameter

32 mm

EPSR Insert included angle

60 Degree

FamilyProducts

CTGPL3232-22

GAMO Rake angle orthogonal

5 Degree

HAND Cutting direction

L - Left

ID Technical product number

75006582

Interface codes

J6 /

Interface codes CSW1

/ J441

ISISO A Indicator for ISO cutting plate Pos.A

0

ISO CSW1

ISO$TP2204**1LB****

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

91 Degree

LAMS Inclination angle

1 Degree

LF Functional length

170 mm

LH Head length

31 mm

LOC-03 B Shank width

32 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

3232

LOC-03 H Shank height

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT32320105

MIID Master insert identification

TPGN220402

MTP Clamping type code

C - Top clamping without bore

Name Identifying order number

CTGPL3232-22

STDDES Standard designation

CTGPL3232-22

THSC Tool holder shape code

A - offset shank design

WF Functional width

40.2 mm

Working process

No working processes available

WT Weight of item

1.4 kg
