Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning CTEPL0016G11

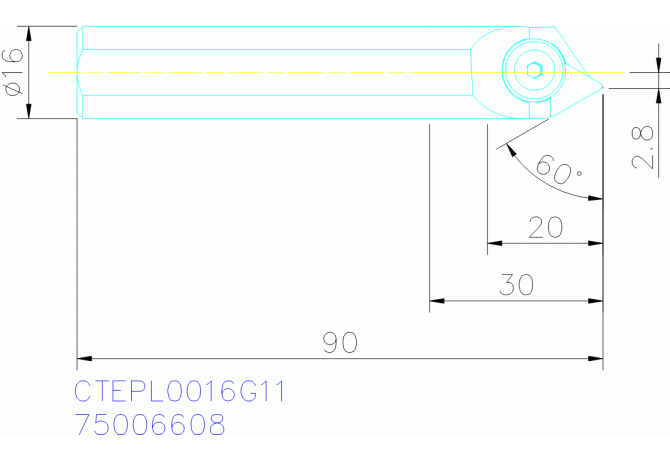

CTEPL0016G11

CTEPL0016G11 CTEPL0016G11

CTEPL0016G11

Seco
Артикул: 75006608
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYL01602215
EPSR Insert included angle
60 Degree
FamilyProducts
CTEPL0016G11
GAMO Rake angle orthogonal
5 Degree
HAND Cutting direction
L - Left
ID Technical product number
75006608
Interface codes
J6 /
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO CSW1
ISO$TP1603**1LB****
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
60 Degree
LAMS Inclination angle
3 Degree
LF Functional length
90 mm
LH Head length
20 mm
LOC-03 B Shank width
14.95 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03 H Shank height
14.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01602215
MIID Master insert identification
TP1103
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
CTEPL0016G11
STDDES Standard designation
CTEPL0016G11
WF Functional width
2.8 mm
Working process
No working processes available
WT Weight of item
0.114 kg
