Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning CTAPL0020K16

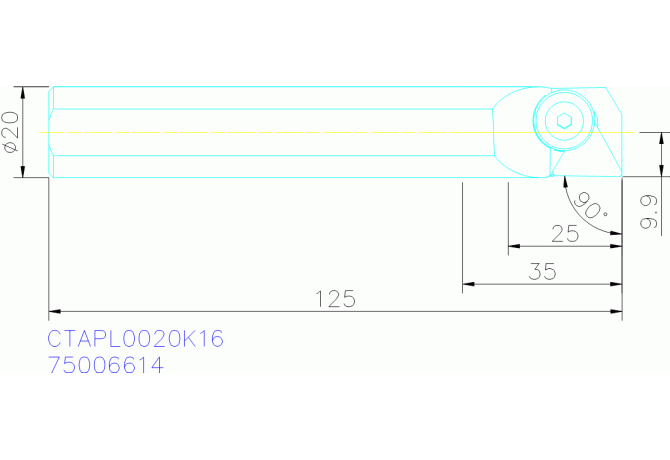

CTAPL0020K16

CTAPL0020K16

Seco

Артикул: 75006614

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

11 Degree

B3A Inscribed circle diameter Pos. A

9.525 mm

BLDA Tool style code Position A

1

C1A Insert thickness Pos. A

3.175 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

ZYL02002215

EPSR Insert included angle

60 Degree

FamilyProducts

CTAPL0020K16

GAMO Rake angle orthogonal

5 Degree

HAND Cutting direction

L - Left

ID Technical product number

75006614

Interface codes

J6 /

Interface codes CSW1

/ J441

ISISO A Indicator for ISO cutting plate Pos.A

0

ISO CSW1

ISO$TP1603**1LB****

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

90 Degree

LAMS Inclination angle

3 Degree

LF Functional length

125 mm

LH Head length

25 mm

LOC-03 B Shank width

18.58 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 H Shank height

18 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02002215

MIID Master insert identification

TPUN160308T

MTP Clamping type code

C - Top clamping without bore

Name Identifying order number

CTAPL0020K16

STDDES Standard designation

CTAPL0020K16

WF Functional width

9.9 mm

Working process

No working processes available

WT Weight of item

0.255 kg
