Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning CSRNR4040R12

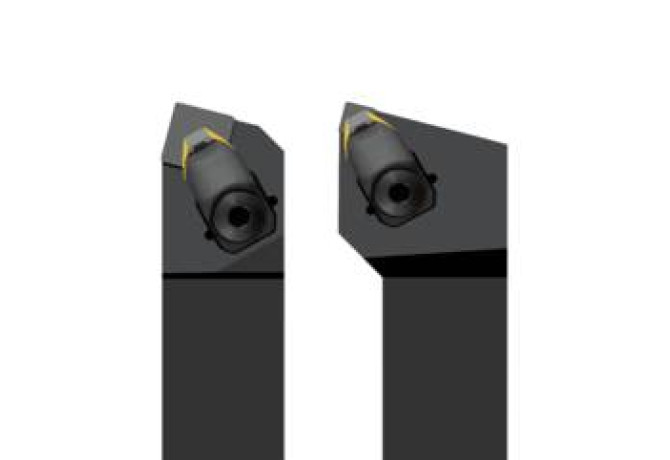

CSRNR4040R12

CSRNR4040R12

Seco

Артикул: 02424474

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

2

C1A Insert thickness Pos. A

4.76 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.794 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

VKT40400105

EPSR Insert included angle

90 Degree

FamilyProducts

CSRNR4040R12

GAMO Rake angle orthogonal

-6 Degree

HAND Cutting direction

R - Right

ID Technical product number

02424474

Interface codes

J6 /

Interface codes CSW1

/ J441

ISISO A Indicator for ISO cutting plate Pos.A

0

ISO CSW1

ISO$SN1204**1RB****

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

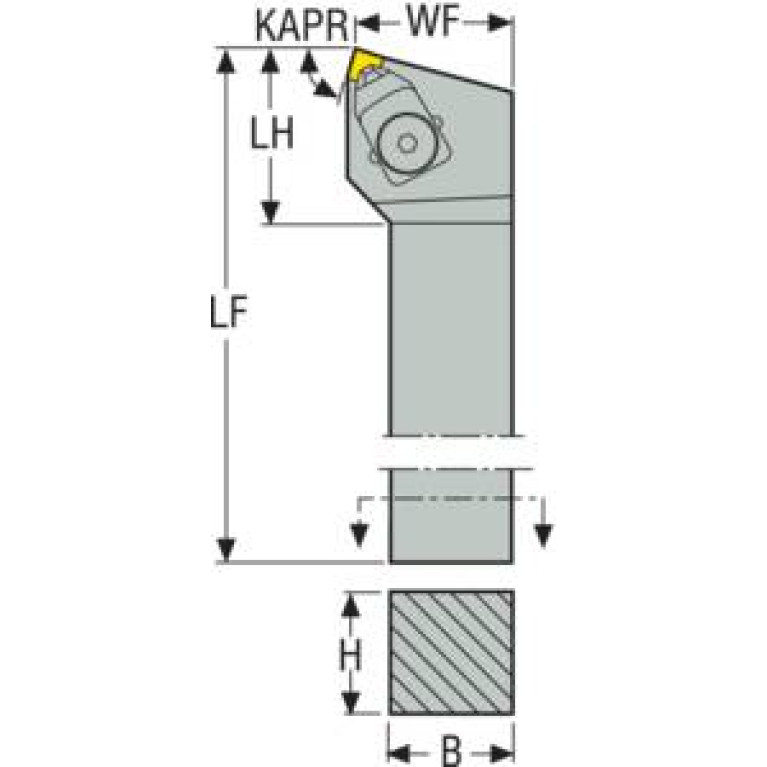

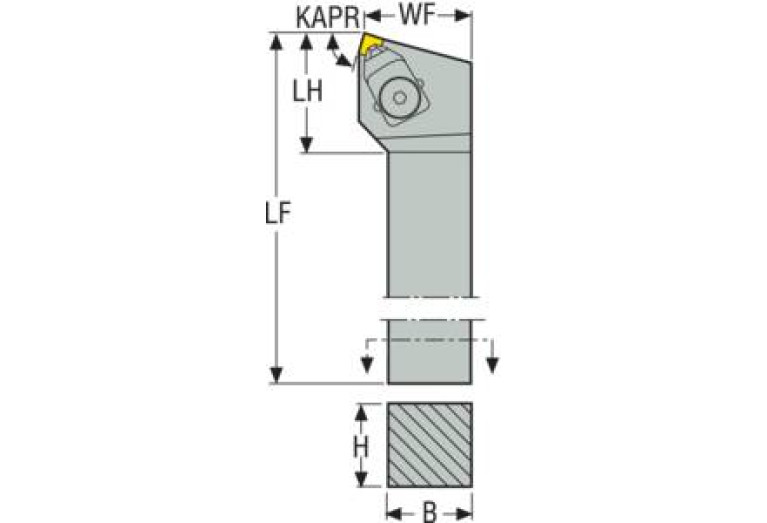

KAPR Tool cutting edge angle

75 Degree

LAMS Inclination angle

-6 Degree

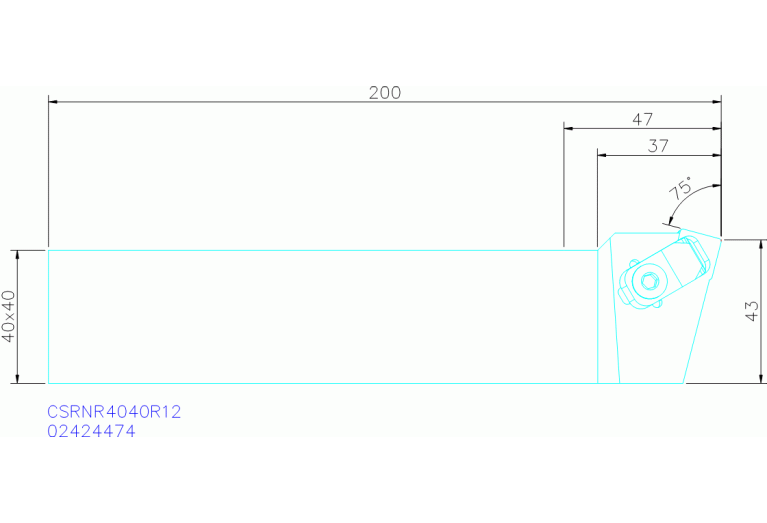

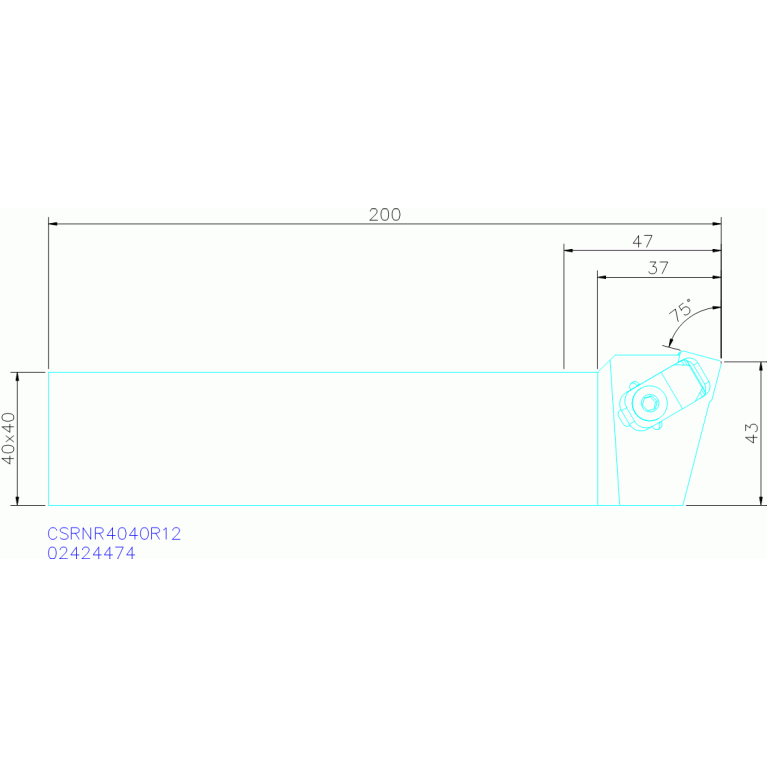

LF Functional length

200 mm

LH Head length

36.9 mm

LOC-03 B Shank width

40 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

4040

LOC-03 H Shank height

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT40400105

MIID Master insert identification

SNMN120408S-02020P-WZ85

MTP Clamping type code

C - Top clamping without bore

Name Identifying order number

CSRNR4040R12

STDDES Standard designation

CSRNR4040R12

THSC Tool holder shape code

A - offset shank design

WF Functional width

43.2 mm

Working process

No working processes available

WT Weight of item

2.5 kg
