Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning CSRNR2525M06

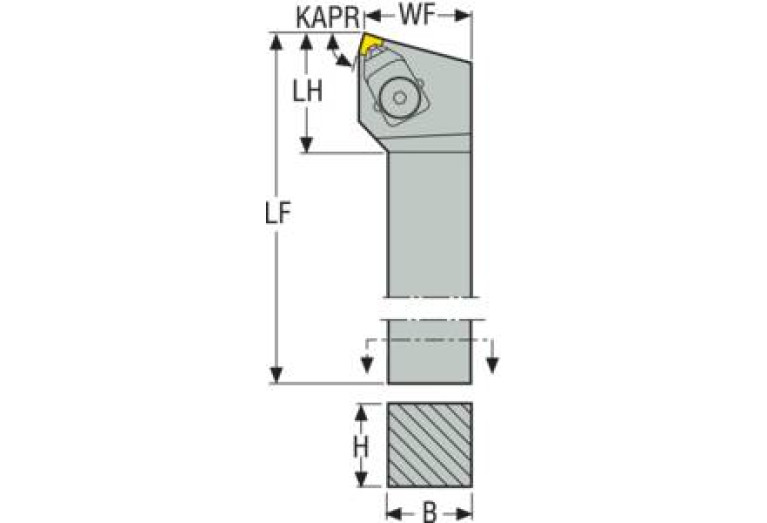

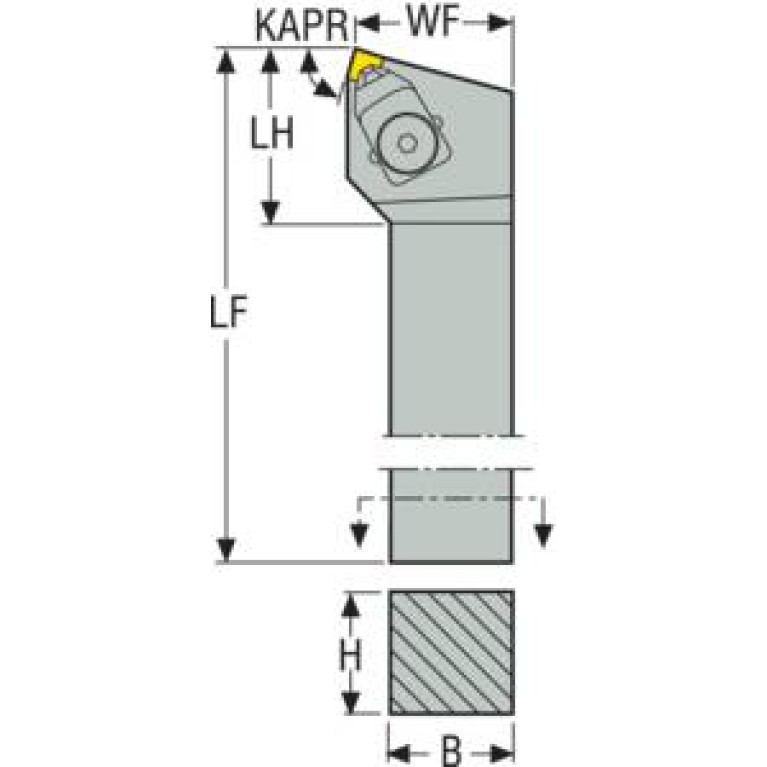

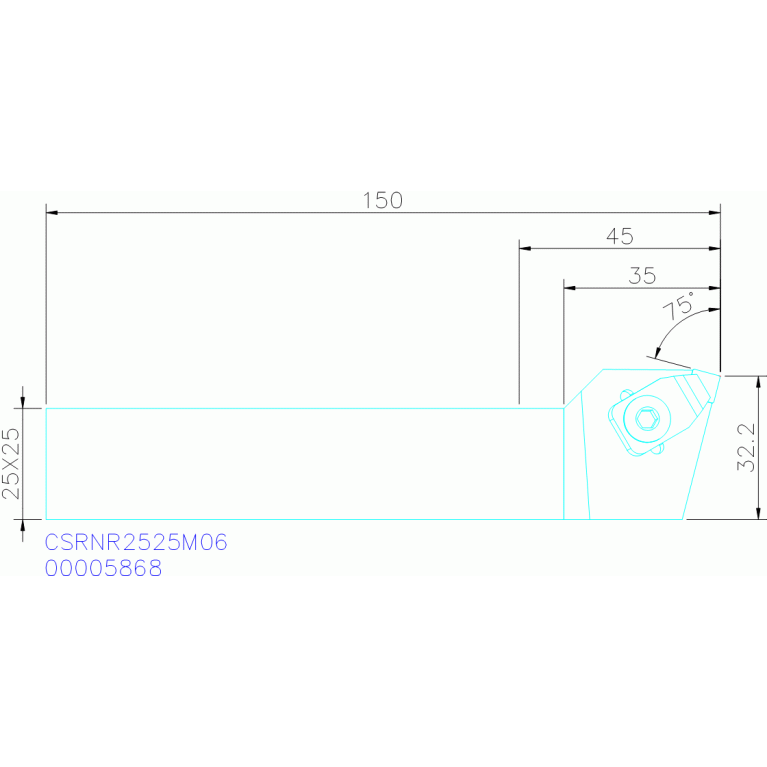

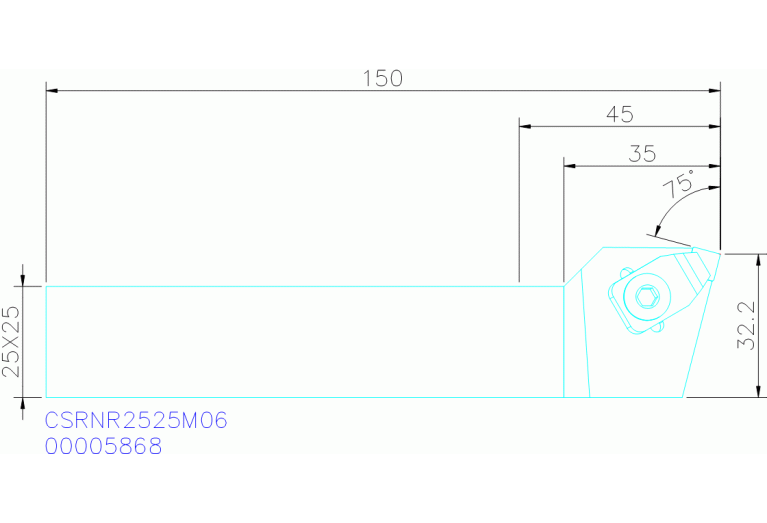

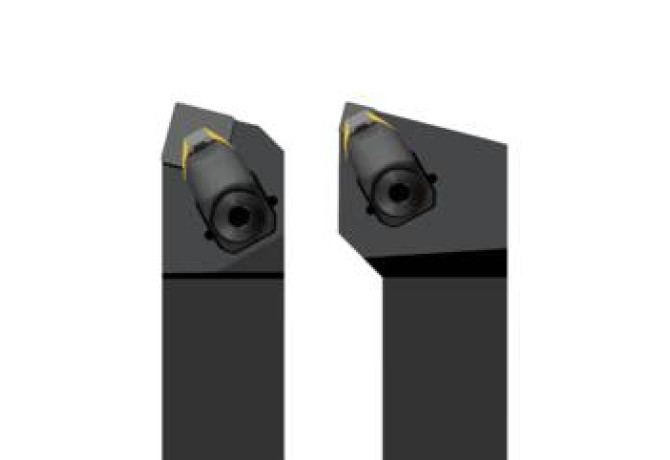

CSRNR2525M06

CSRNR2525M06

Seco

Артикул: 00005868

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

6.35 mm

BLDA Tool style code Position A

2

C1A Insert thickness Pos. A

3.18 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.794 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

VKT25250105

EPSR Insert included angle

90 Degree

FamilyProducts

CSRNR2525M06

GAMO Rake angle orthogonal

-6 Degree

HAND Cutting direction

R - Right

ID Technical product number

00005868

Interface codes

J6 /

Interface codes CSW1

/ J441

ISISO A Indicator for ISO cutting plate Pos.A

0

ISO CSW1

ISO$SN0603**1RB****

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

75 Degree

L Cutting edge length

6.35 mm

LAMS Inclination angle

-6 Degree

LF Functional length

150 mm

LH Head length

35 mm

LOC-03 B Shank width

25 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

2525

LOC-03 H Shank height

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT25250105

MIID Master insert identification

SNGN060308S-01020

MTP Clamping type code

C - Top clamping without bore

Name Identifying order number

CSRNR2525M06

STDDES Standard designation

CSRNR2525M06

THSC Tool holder shape code

A - offset shank design

WF Functional width

32 mm

Working process

No working processes available

WT Weight of item

0.764 kg
