Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning CSDNN-16-4

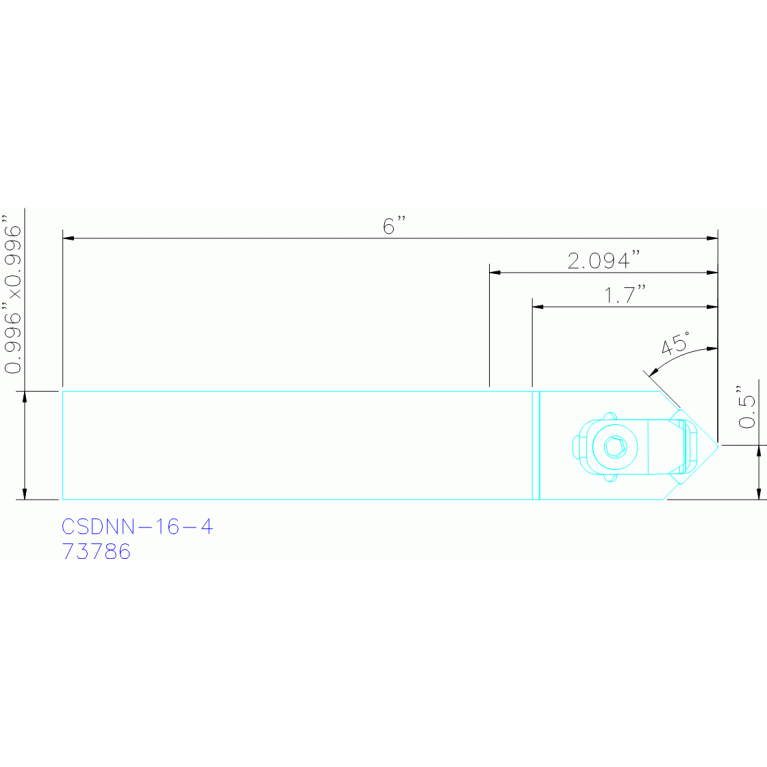

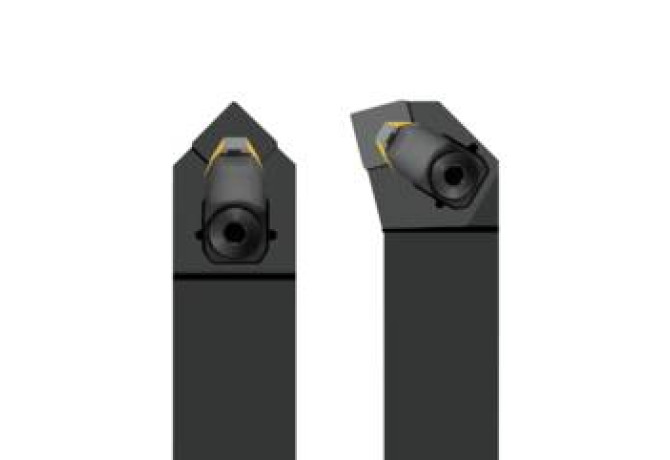

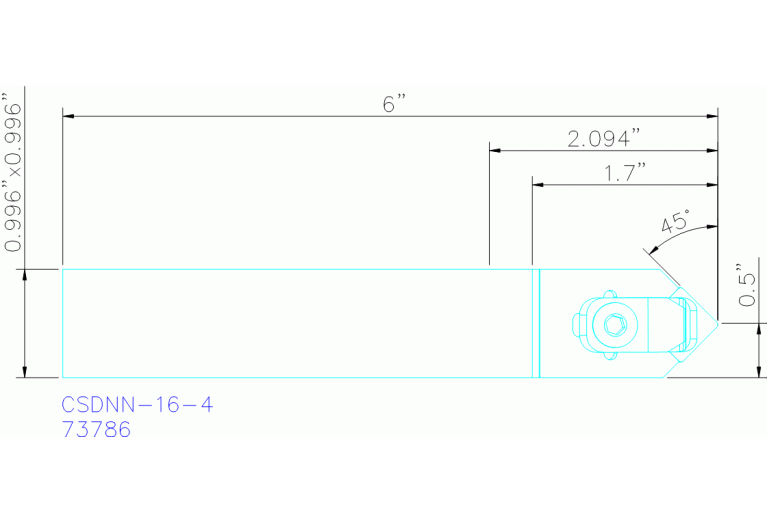

CSDNN-16-4

CSDNN-16-4

Seco

Артикул: 00073786

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

2

C1A Insert thickness Pos. A

3.18 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

1.191 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

VKT16160125

EPSR Insert included angle

90 Degree

FamilyProducts

CSDNN-16-4

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

N - Neutral

ID Technical product number

00073786

Interface codes

J6 /

Interface codes CSW1

/ J441

ISISO A Indicator for ISO cutting plate Pos.A

0

ISO CSW1

ISO$SN1203**1NB****

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

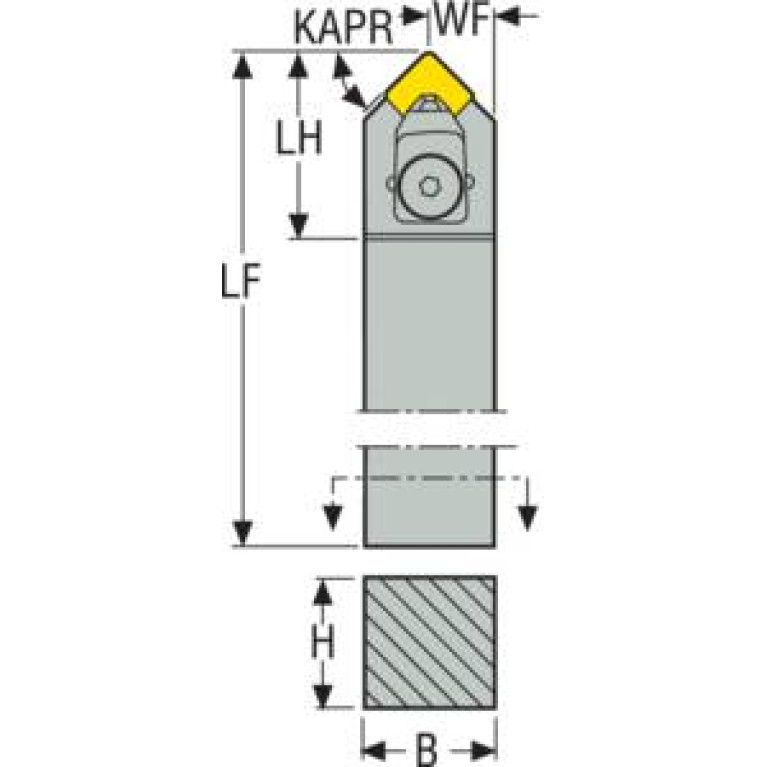

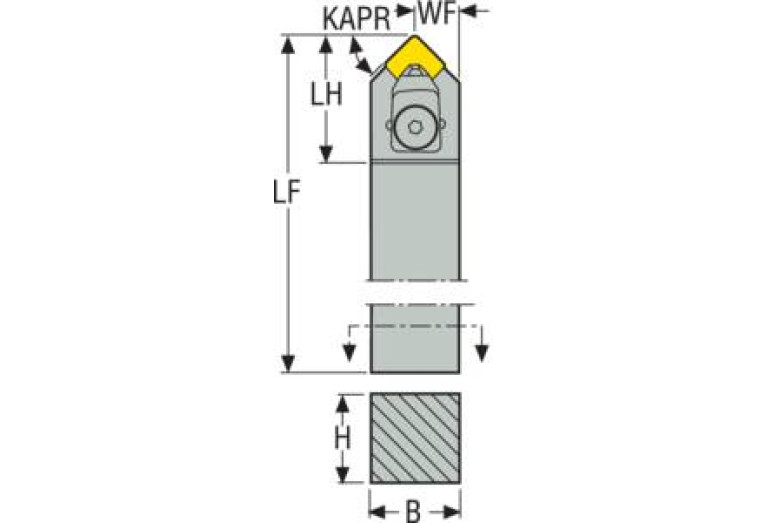

KAPR Tool cutting edge angle

45 Degree

LAMS Inclination angle

-7 Degree

LF Functional length

152.4 mm

LH Head length

43.2 mm

LOC-03 B Shank width

25.4 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

1616

LOC-03 H Shank height

25.4 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT16160125

MIID Master insert identification

SNMN120312S

MTP Clamping type code

C - Top clamping without bore

Name Identifying order number

CSDNN-16-4

STDDES Standard designation

CSDNN-16-4

THSC Tool holder shape code

G - straight shank design

WF Functional width

12.7 mm

Working process

No working processes available

WT Weight of item

0.78 kg
