CRSNL4040R09

CRSNL4040R09 CRSNL4040R09 CRSNL4040R09 CRSNL4040R09

CRSNL4040R09

Seco
Артикул: 02424439
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
9.52 mm
BLDA Tool style code Position A
10
C1A Insert thickness Pos. A
3.18 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
VKT40400105
FamilyProducts
CRSNL4040R09
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
L - Left
ID Technical product number
02424439
Interface codes
J6 /
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO CSW1
ISO$RN0903**1LB****
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
45 Degree
LAMS Inclination angle
-6 Degree

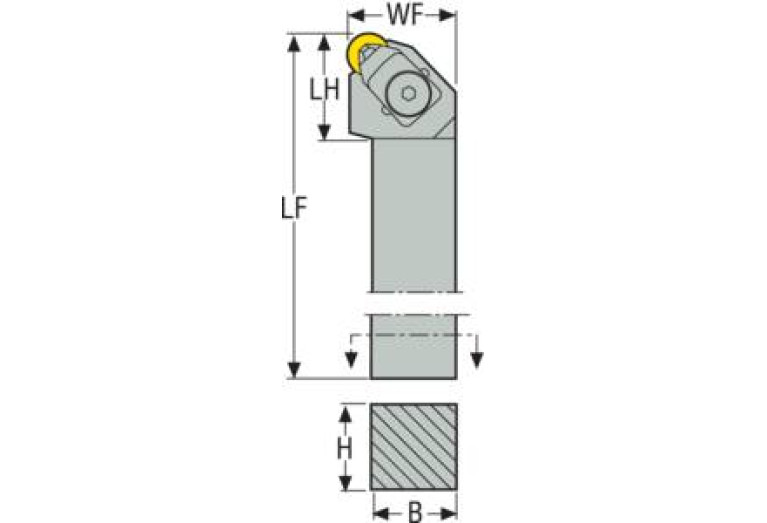

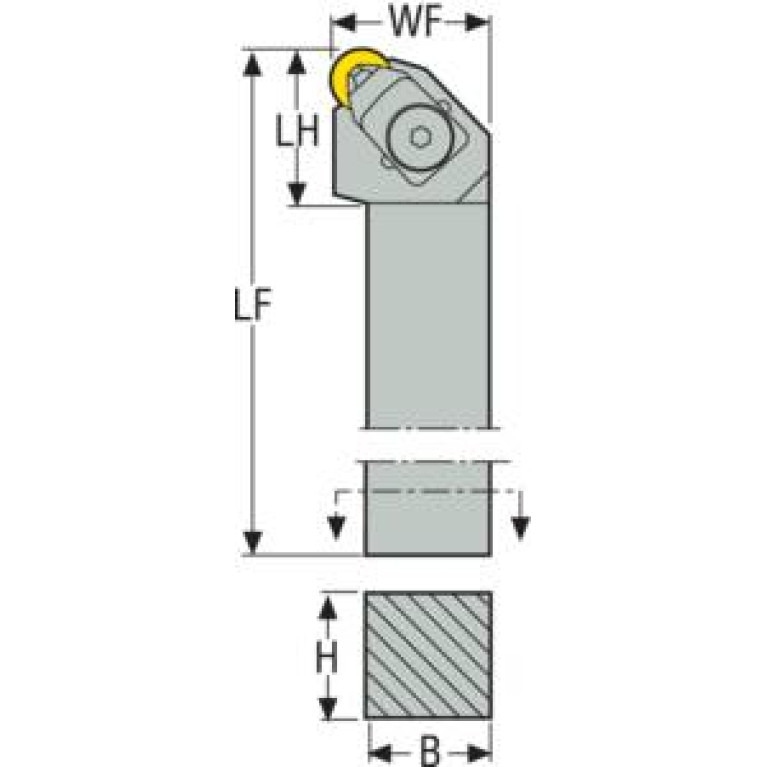

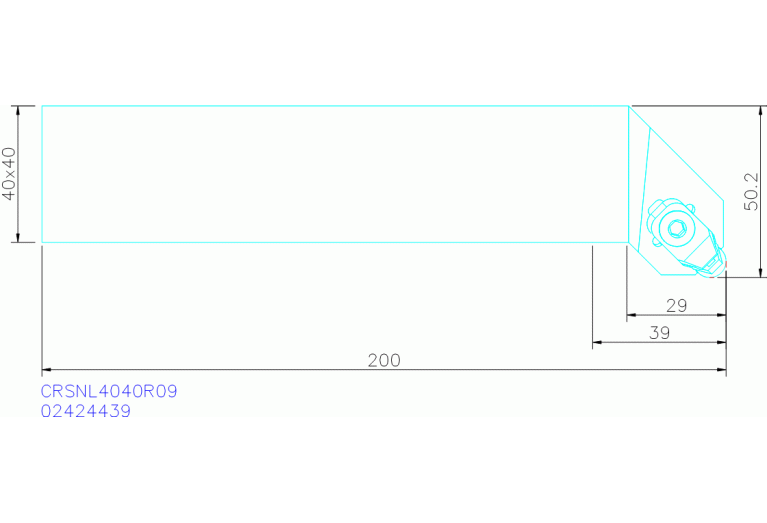

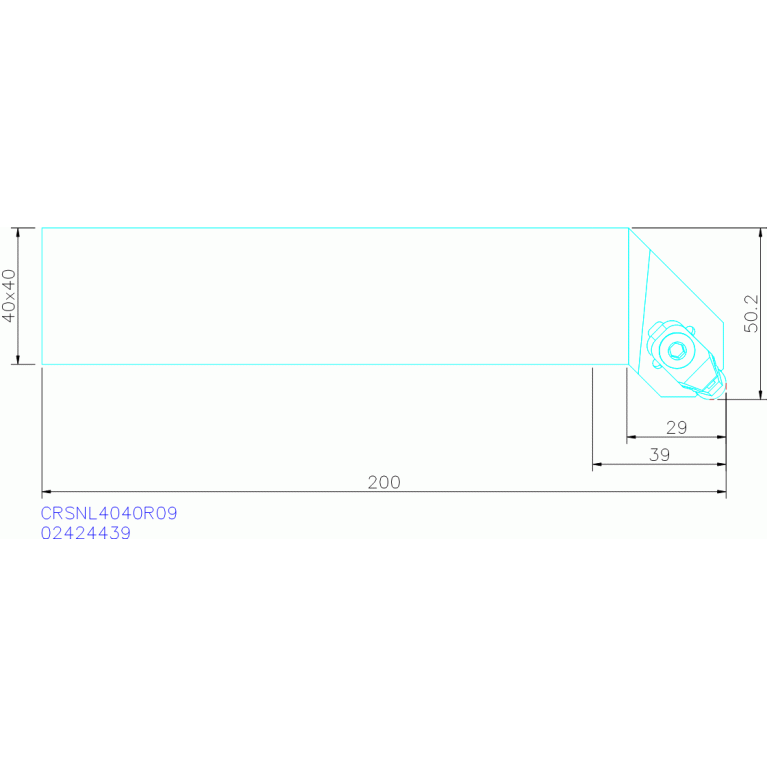

LF Functional length
200 mm
LH Head length
29 mm
LOC-03 B Shank width
40 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
4040
LOC-03 H Shank height
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT40400105
MIID Master insert identification
RNGN090300E25
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
CRSNL4040R09
STDDES Standard designation
CRSNL4040R09
THSC Tool holder shape code
A - offset shank design
WF Functional width
50 mm
Working process
No working processes available
WT Weight of item
2.46 kg
