Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning CRDNN3225P12

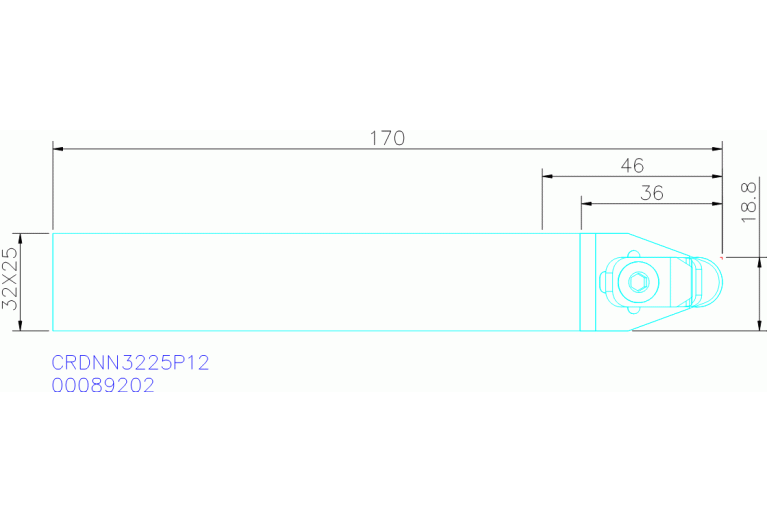

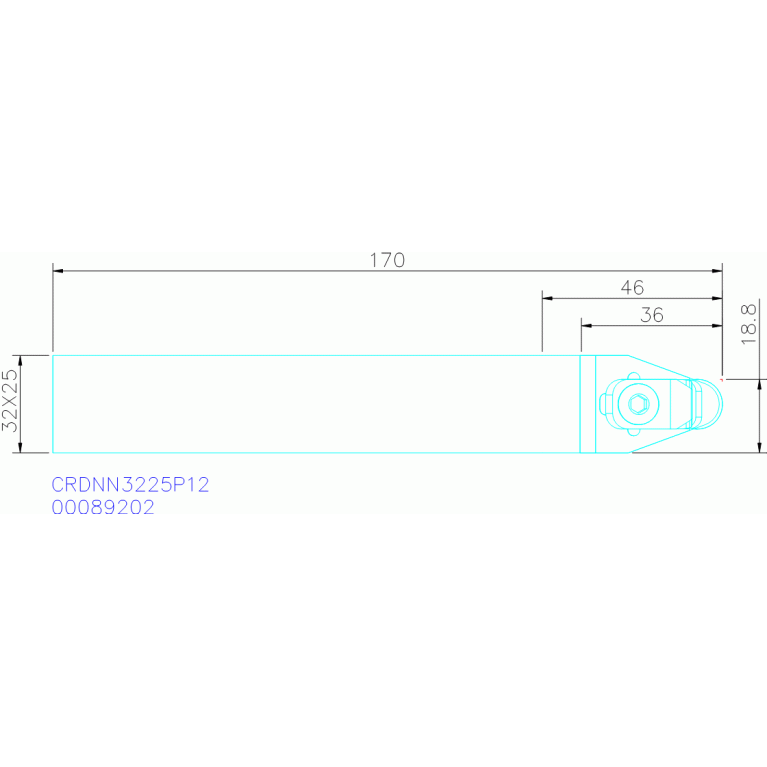

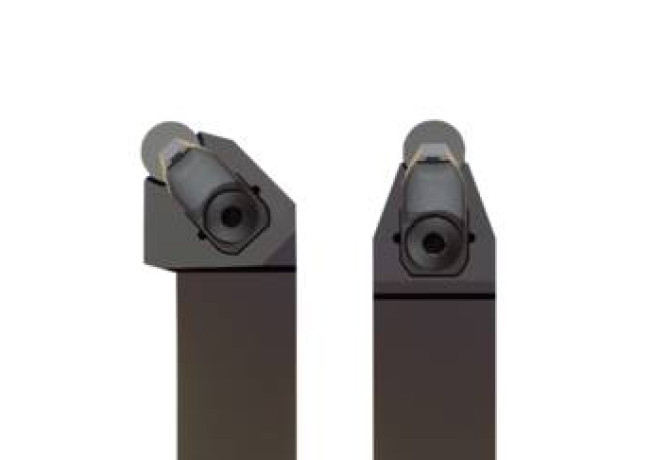

CRDNN3225P12

CRDNN3225P12 CRDNN3225P12 CRDNN3225P12 CRDNN3225P12

CRDNN3225P12

Seco
Артикул: 00089202
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
12.7 mm
BLDA Tool style code Position A
10
C1A Insert thickness Pos. A
3.18 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
VKT32250105
FamilyProducts
CRDNN3225P12
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
N - Neutral
ID Technical product number
00089202
Interface codes
J6 /
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO CSW1
ISO$RN1203**1NB****
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
45 Degree
LAMS Inclination angle
-8 Degree

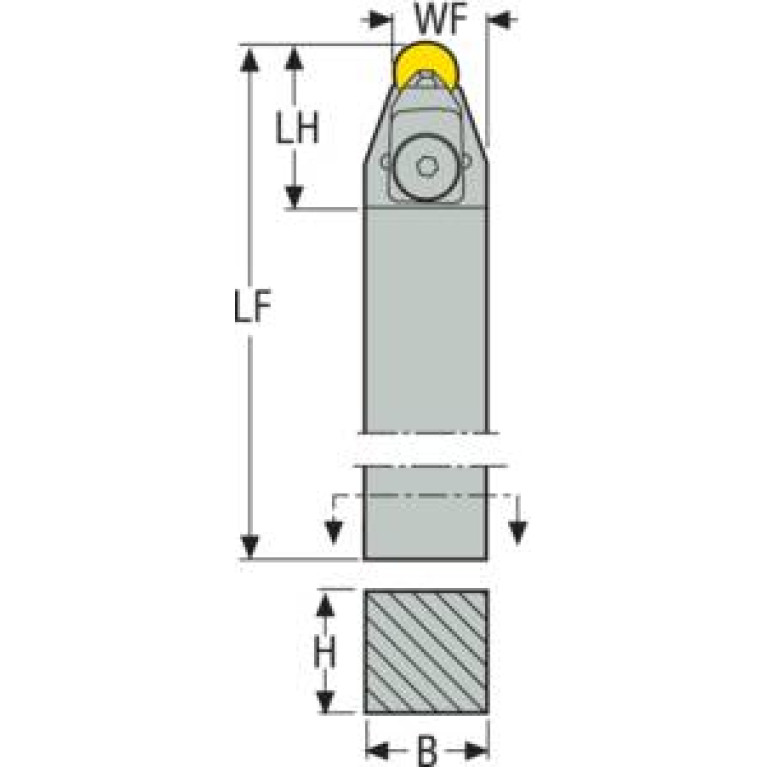

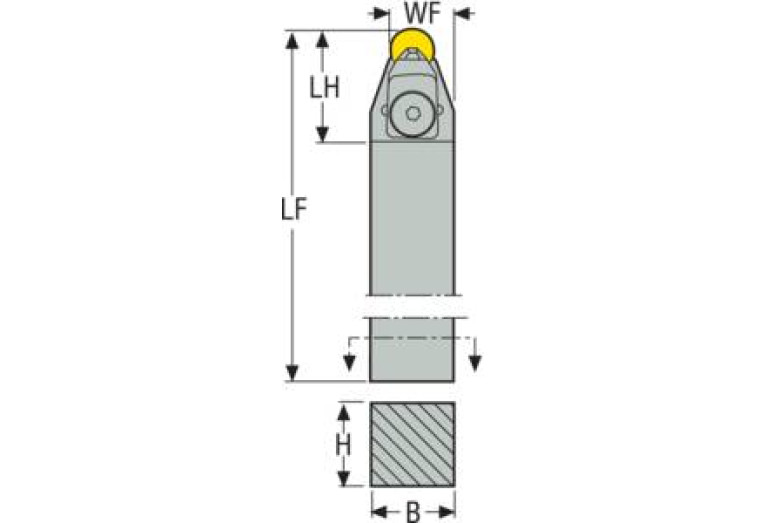

LF Functional length
170 mm
LOC-03 B Shank width
25 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
3225
LOC-03 H Shank height
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT32250105
MIID Master insert identification
RNGN120300F-LF
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
CRDNN3225P12
STDDES Standard designation
CRDNN3225P12
THSC Tool holder shape code
G - straight shank design
WF Functional width
18.5 mm
Working process
No working processes available
WT Weight of item
1.006 kg
