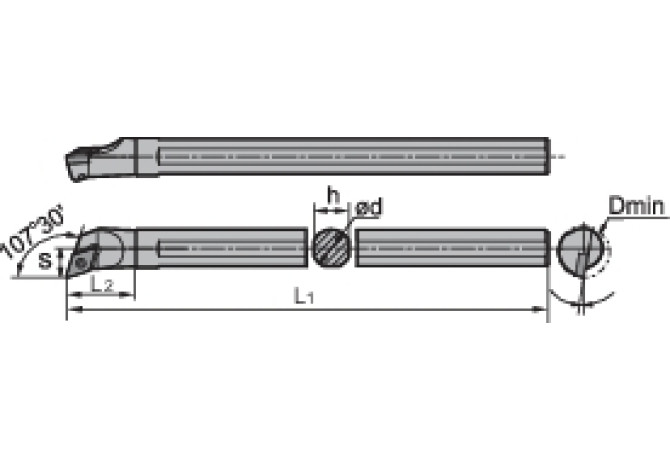

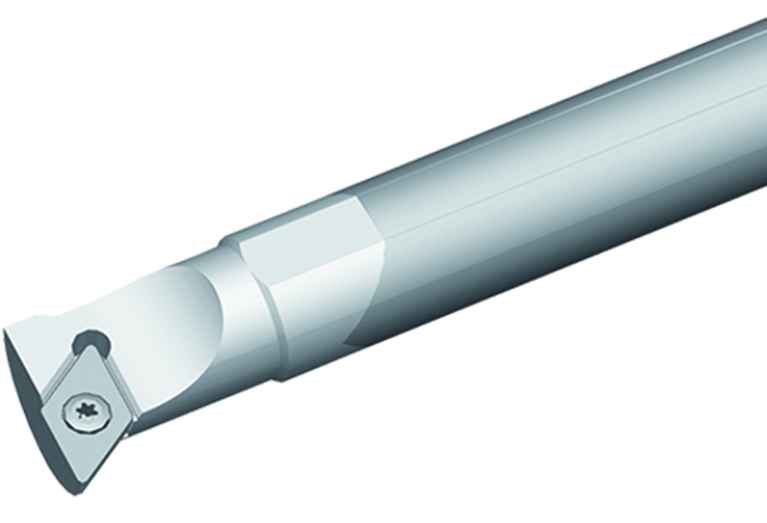

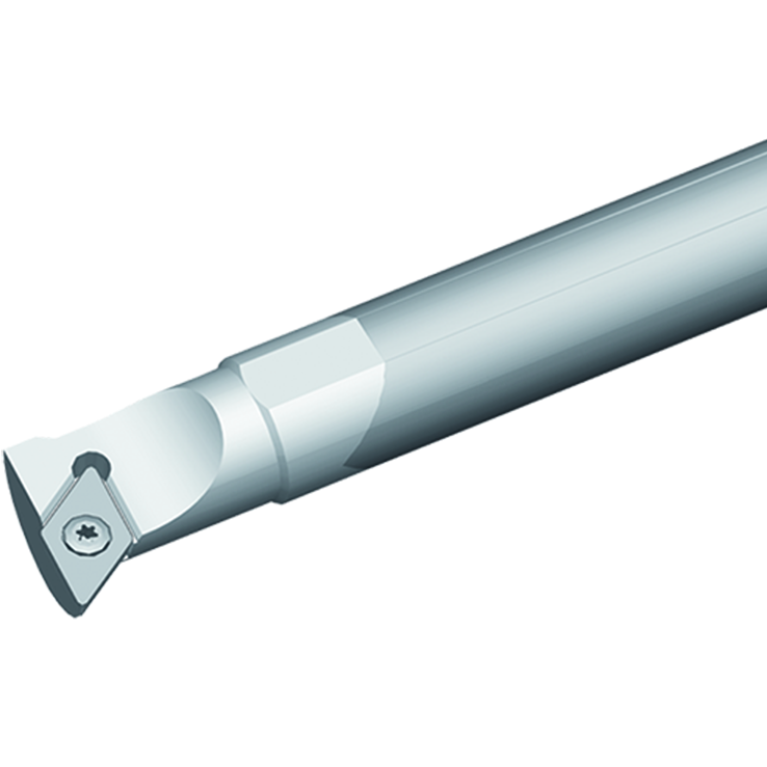

C20S-SDQPR11

Артикул: C20S-SDQPR11

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

11 Degree

B3A Inscribed circle diameter Pos. A

9.525 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

3.97 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.1 mm

DCC Design configuration style code

C - Hard metal shank with steel head, no construction features

DCP Data chip provision

0 - Without data chip

Delivery state valid from

10.4 kg

DIN

ZYL02002205

DIN CSW1

DP11T3083N

DMIN Minimum bore diameter

25 mm

EPSR Insert included angle

55 Degree

FamilyProducts

DP** solid carbide boring bar

GAMF Rake angle radial

6 Degree

HAND Cutting direction

R - Right

ID Identifying order number

C20S-SDQPR11

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

107.5 Degree

L Cutting edge length

11.6 mm

LF Functional length

250 mm

LH Head length

33 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 H Shank height

18 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02002205

MIID Master insert identification

DPGT11T301

MTP Clamping type code

S - Screwed across bore with, counter bore

OAL Overall length

250 mm

STDDES Standard designation

C20S-SDQPR11

SX Shank cross section shape code

31 - (left) Round shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

13 mm

Working process

DDB - External and internal turning,DFI - Internal form turning,DPI - Profiling internal
