Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning C12Q-STUPL11

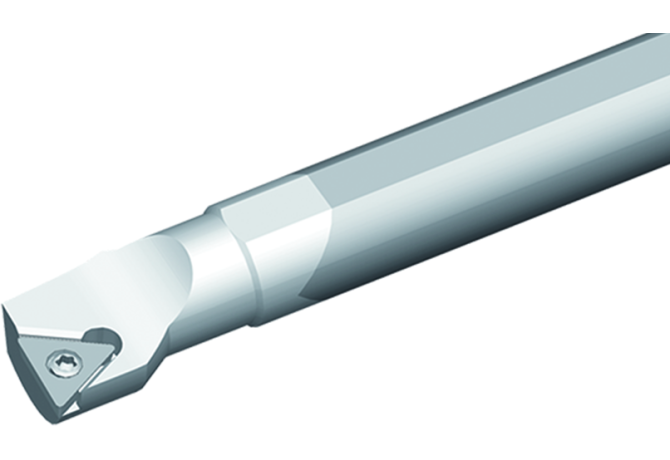

C12Q-STUPL11

C12Q-STUPL11

Артикул: C12Q-STUPL11

В наличии

В корзину

Описание

Характеристики

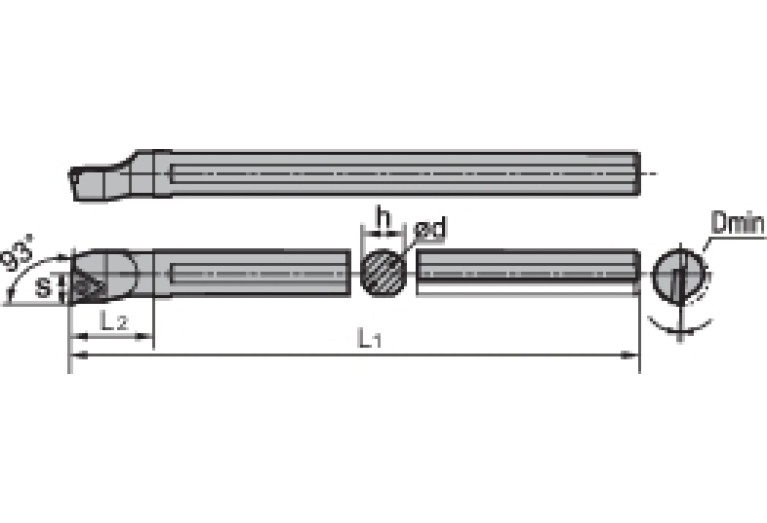

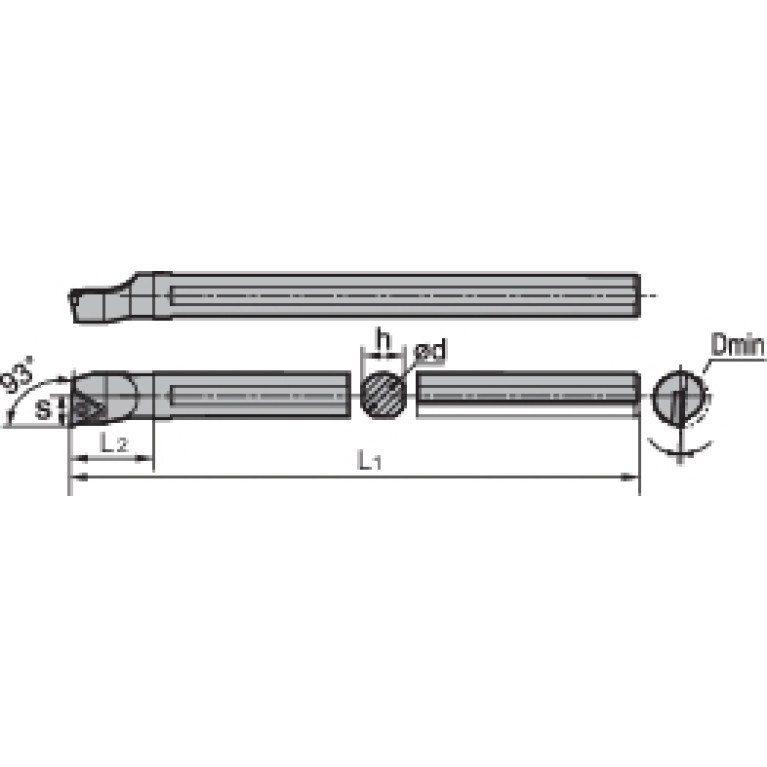

A2A Clearance angle major Pos. A

11 Degree

B3A Inscribed circle diameter Pos. A

6.35 mm

BLDA Tool style code Position A

1

C1A Insert thickness Pos. A

3.18 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.2 mm

DCC Design configuration style code

C - Hard metal shank with steel head, no construction features

DCP Data chip provision

0 - Without data chip

Delivery state

NL - Discontinued

DIN

ZYL01202205

DIN CSW1

TP1103083N

DMIN Minimum bore diameter

16 mm

EPSR Insert included angle

60 Degree

FamilyProducts

TP** solid carbide boring bar

GAMF Rake angle radial

4 Degree

HAND Cutting direction

L - Left

ID Identifying order number

C12Q-STUPL11

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

L Cutting edge length

11 mm

LF Functional length

180 mm

LH Head length

25 mm

LOC-03 CCFMS Form

22

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 H Shank height

11 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01202205

MIID Master insert identification

TPGT110302

MTP Clamping type code

S - Screwed across bore with, counter bore

OAL Overall length

180 mm

STDDES Standard designation

C12Q-STUPL11

SX Shank cross section shape code

31 - (left) Round shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

8 mm

Working process

DDB - External and internal turning
