Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning A78502

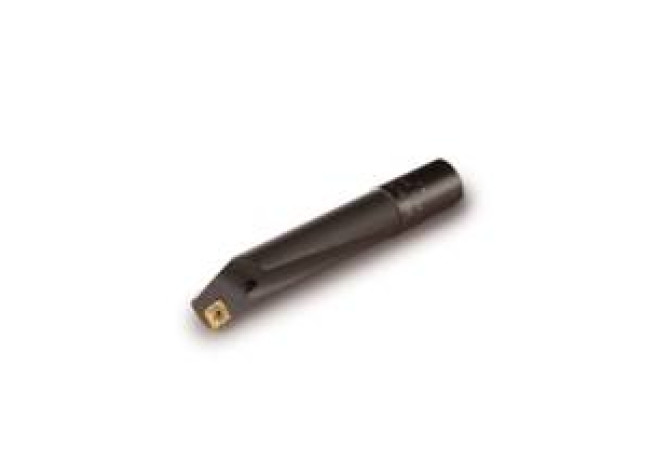

A78502

A78502 A78502 A78502 A78502

A78502

Seco
Артикул: 02749625
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
6.35 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
2.38 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYL01602205
DIN CSW1
SO-CC3-0602N
EPSR Insert included angle
80 Degree
FamilyProducts
A78502
ID Technical product number
02749625
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01602205
MIID Master insert identification
CCGT060200
Name Identifying order number
A78502

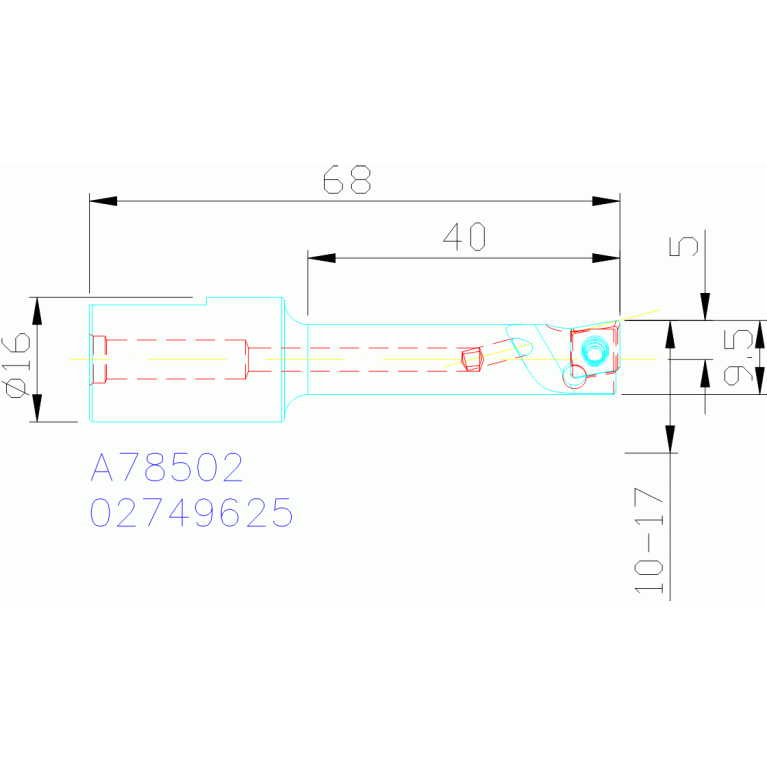

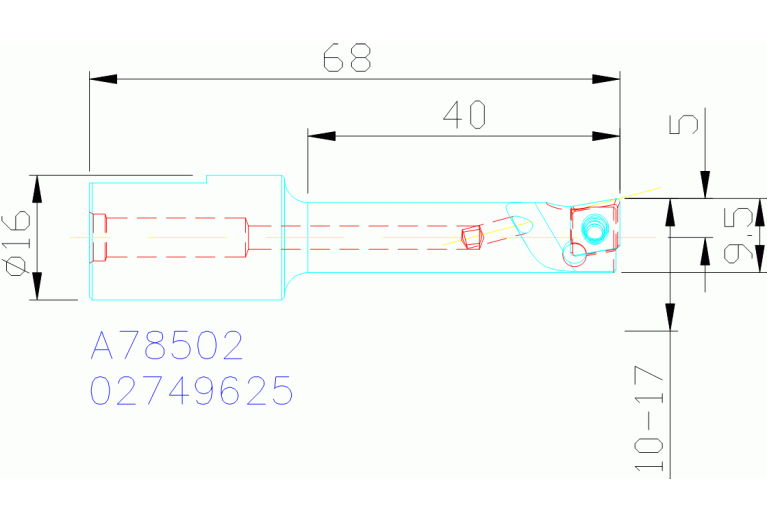

OAL Overall length
40 mm
STDDES Standard designation
A78502
WF Functional width
5 mm
Working process
No working processes available
WT Weight of item
0.06 kg
