Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning A50V-PCLNL19

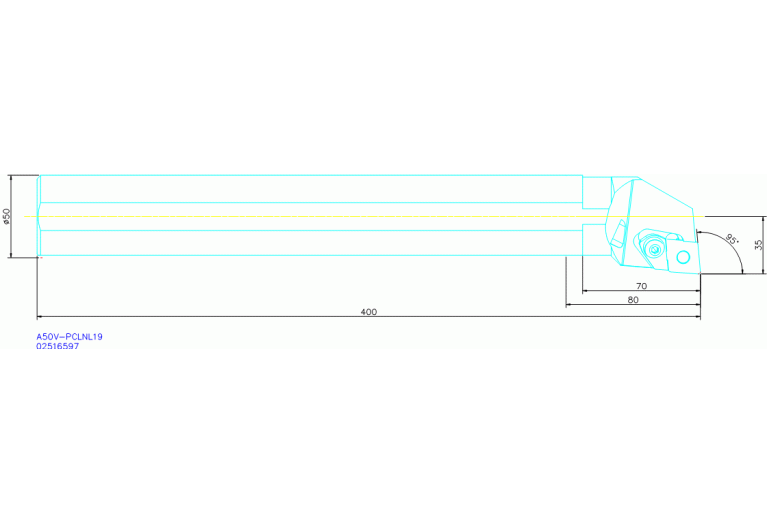

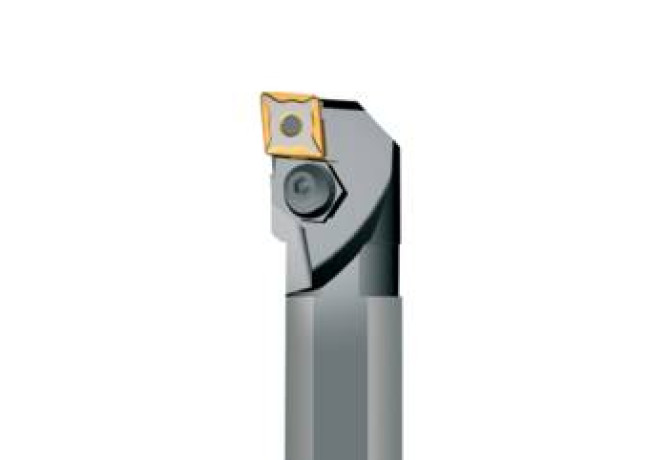

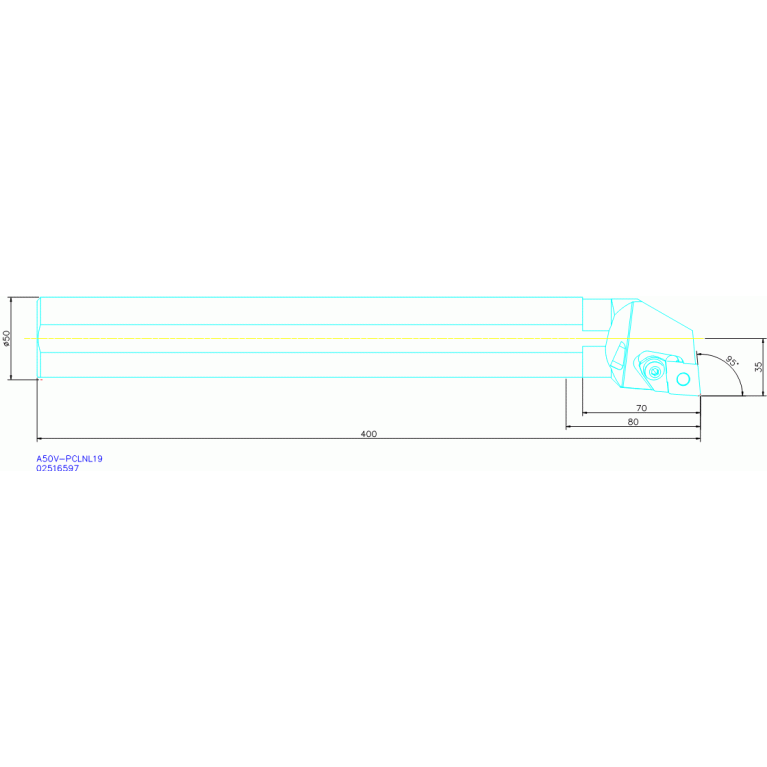

A50V-PCLNL19

A50V-PCLNL19

Seco

Артикул: 02516597

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

ZYL05002215

DMIN Minimum bore diameter

63 mm

EPSR Insert included angle

80 Degree

FamilyProducts

A50V-PCLNL19

GAMO Rake angle orthogonal

-6 Degree

HAND Cutting direction

L - Left

ID Technical product number

02516597

Interface codes

J6 /

Interface codes CSW1

/ J441

ISISO A Indicator for ISO cutting plate Pos.A

0

ISO CSW1

ISO$CN1906**2LB****

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

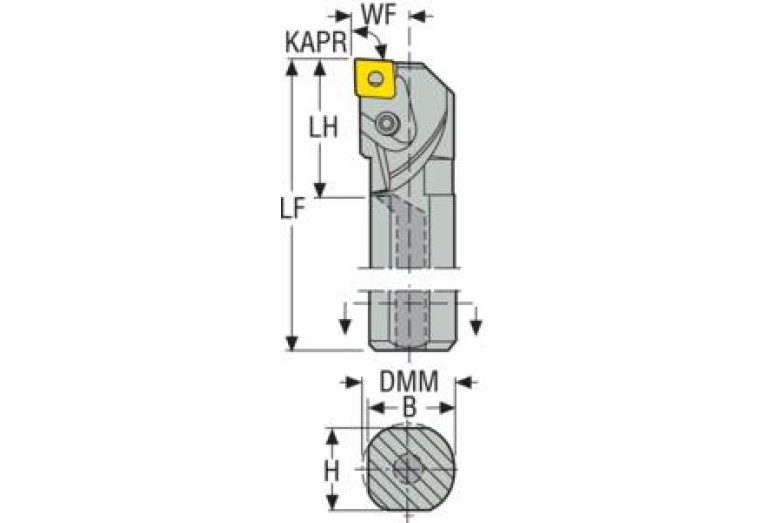

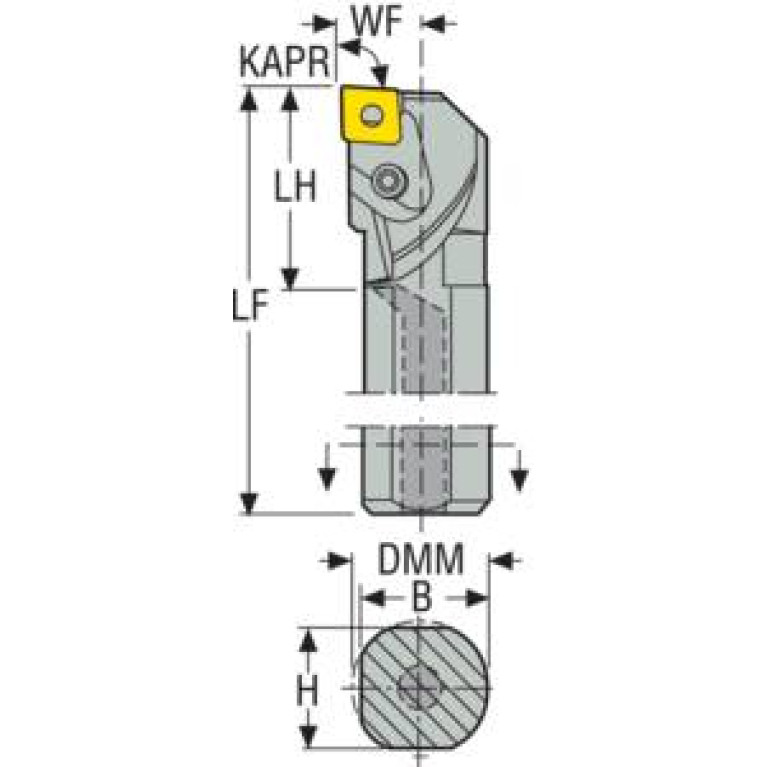

KAPR Tool cutting edge angle

95 Degree

LAMS Inclination angle

-8 Degree

LF Functional length

400 mm

LH Head length

70 mm

LOC-03 B Shank width

48.5 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03 DCONMS Diameter

50 mm

LOC-03 H Shank height

47 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL05002215

MIID Master insert identification

CN1906

MTP Clamping type code

W

Name Identifying order number

A50V-PCLNL19

STDDES Standard designation

A50V-PCLNL19

THSC Tool holder shape code

A - offset shank design

WF Functional width

35 mm

Working process

No working processes available

WT Weight of item

5.4 kg
