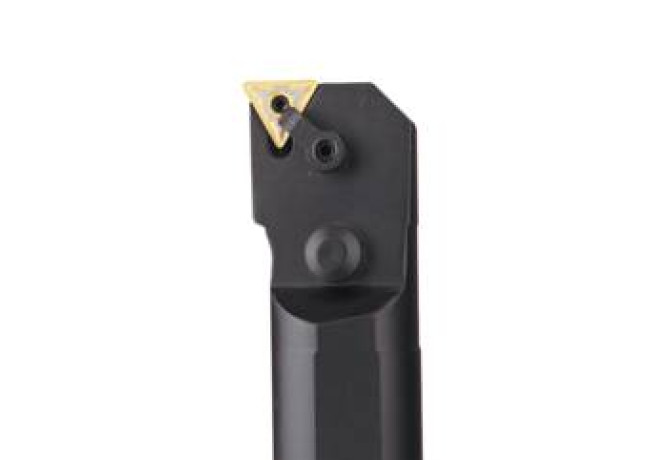

Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning A48-MTFNR-5

A48-MTFNR-5

A48-MTFNR-5

Seco

Артикул: 00041104

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

15.875 mm

BLDA Tool style code Position A

1

C1A Insert thickness Pos. A

6.35 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

ZYL07622215

DIN CSW1

SO-TN2-2706N

DMIN Minimum bore diameter

90.42 mm

EPSR Insert included angle

60 Degree

FamilyProducts

A48-MTFNR-5

GAMO Rake angle orthogonal

-5 Degree

GAMP Rake angle axial

-8 Degree

HAND Cutting direction

R - Right

ID Technical product number

00041104

Interface codes

J6 /

Interface codes CSW1

J41 /

ISISO A Indicator for ISO cutting plate Pos.A

0

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

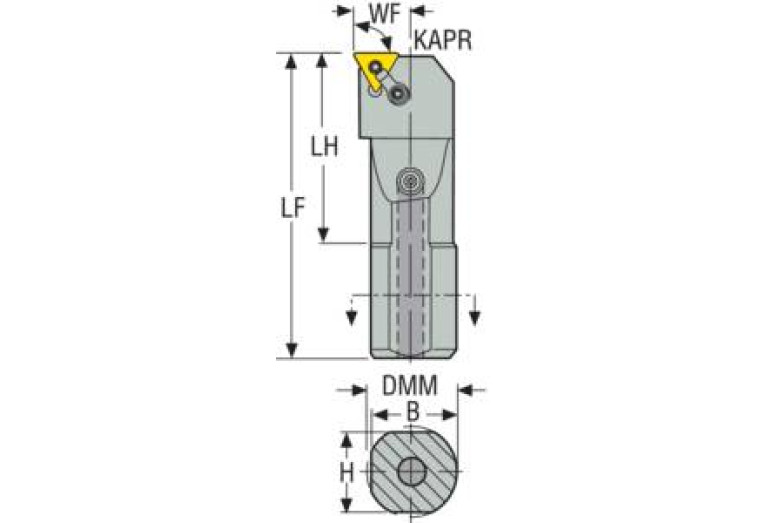

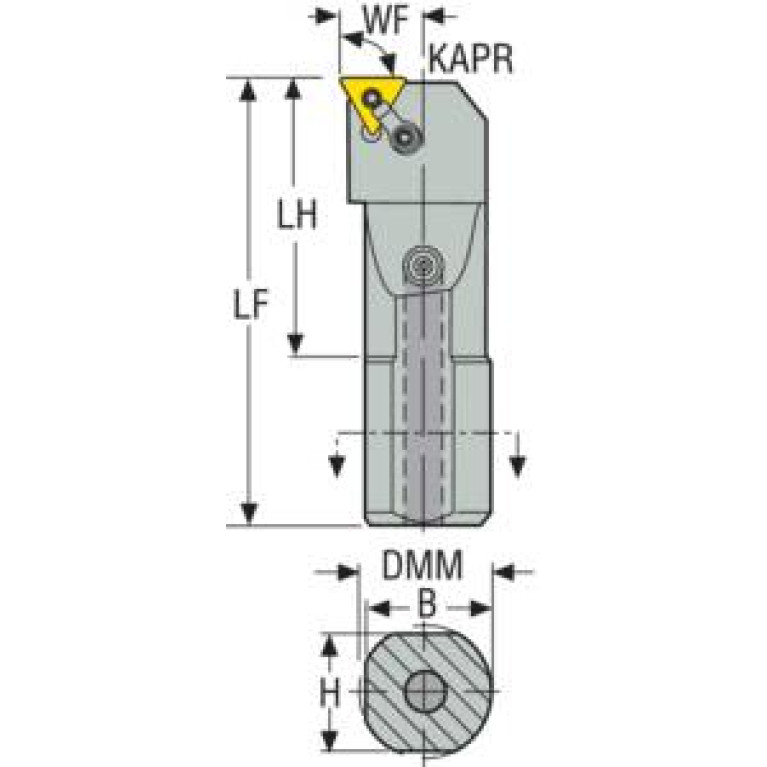

KAPR Tool cutting edge angle

90 Degree

LAMS Inclination angle

-8 Degree

LF Functional length

559 mm

LH Head length

28.5 mm

LOC-03 B Shank width

74.9 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0762

LOC-03 DCONMS Diameter

76.2 mm

LOC-03 H Shank height

73.15 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL07622215

MIID Master insert identification

TNMG270608-M5

MTP Clamping type code

M - Top and hole clamping, with cylindrical bore

Name Identifying order number

A48-MTFNR-5

STDDES Standard designation

A48-MTFNR-5

THSC Tool holder shape code

A - offset shank design

WF Functional width

45.2 mm

Working process

No working processes available

WT Weight of item

18.6 kg
