Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning A25S-PCLNR09

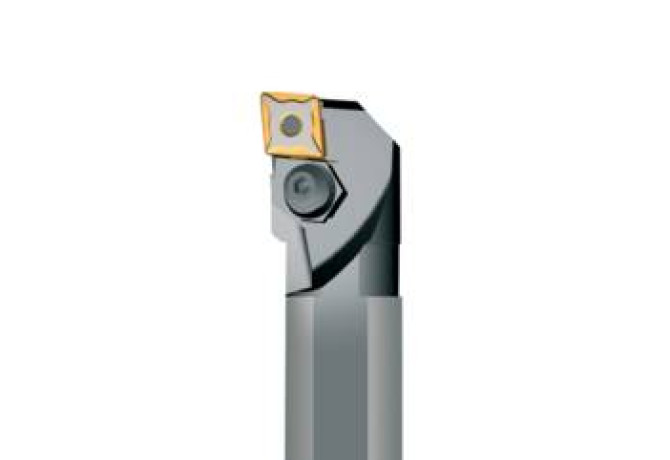

A25S-PCLNR09

A25S-PCLNR09 A25S-PCLNR09 A25S-PCLNR09 A25S-PCLNR09

A25S-PCLNR09

Seco
Артикул: 00092005
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYL02502215
DMIN Minimum bore diameter
32 mm
FamilyProducts
A25S-PCLNR09
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
R - Right
ID Technical product number
00092005
Interface codes
J6 /
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO CSW1
ISO$CN0903**2RB****
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

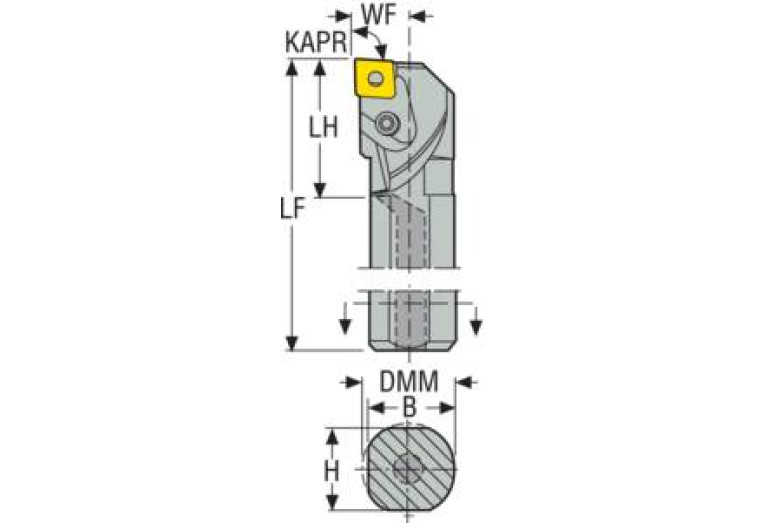

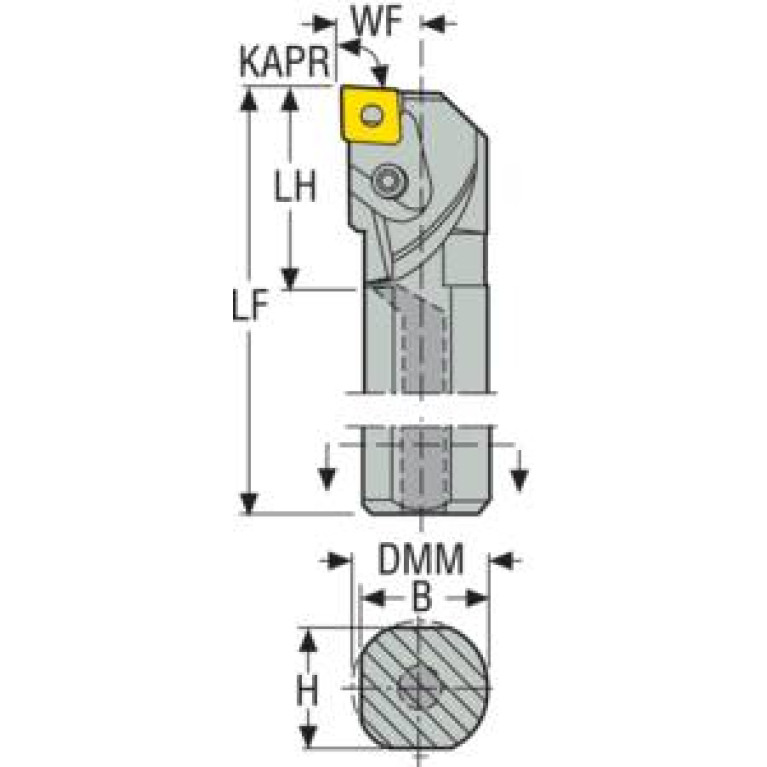

KAPR Tool cutting edge angle
95 Degree
LAMS Inclination angle
-11 Degree

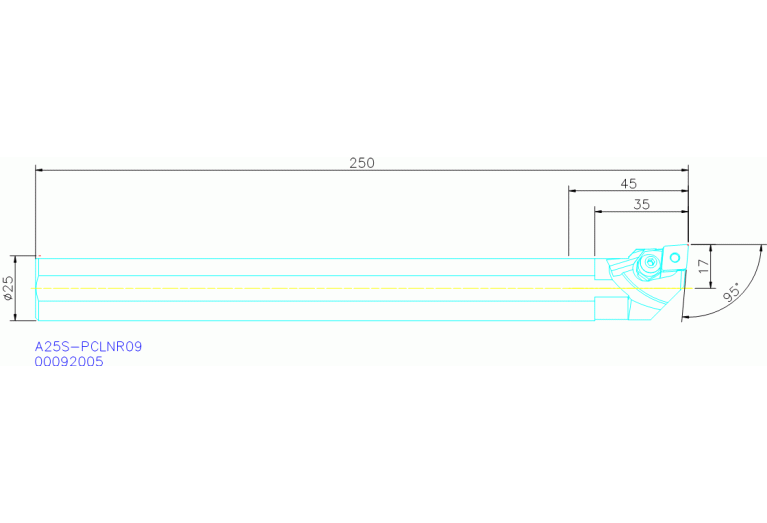

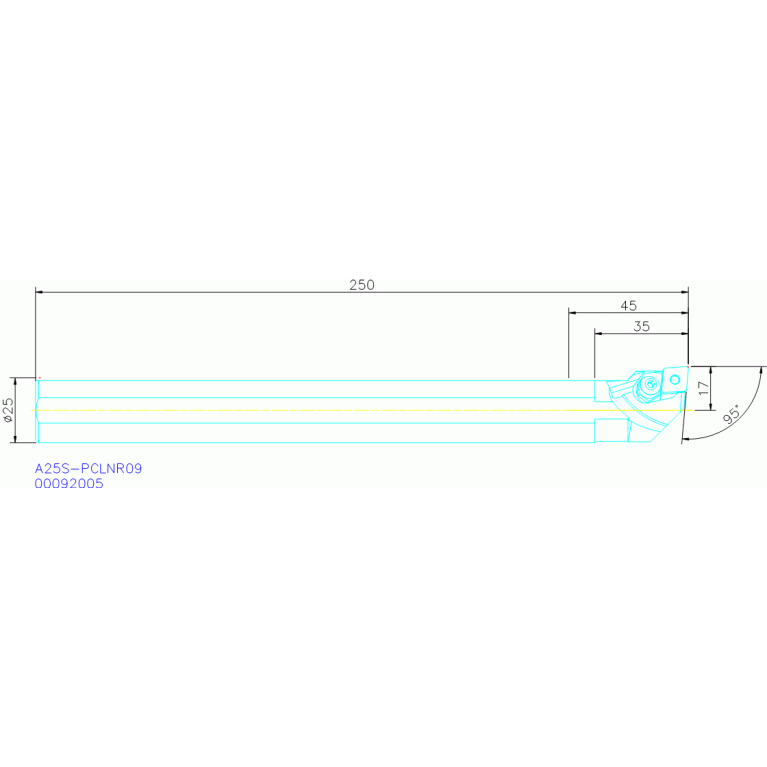

LF Functional length
250 mm
LH Head length
35 mm
LOC-03 B Shank width
24 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 H Shank height
23 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02502215
MIID Master insert identification
CN0903
MTP Clamping type code
W
Name Identifying order number
A25S-PCLNR09
STDDES Standard designation
A25S-PCLNR09
THSC Tool holder shape code
A - offset shank design
WF Functional width
17 mm
Working process
No working processes available
WT Weight of item
0.718 kg
