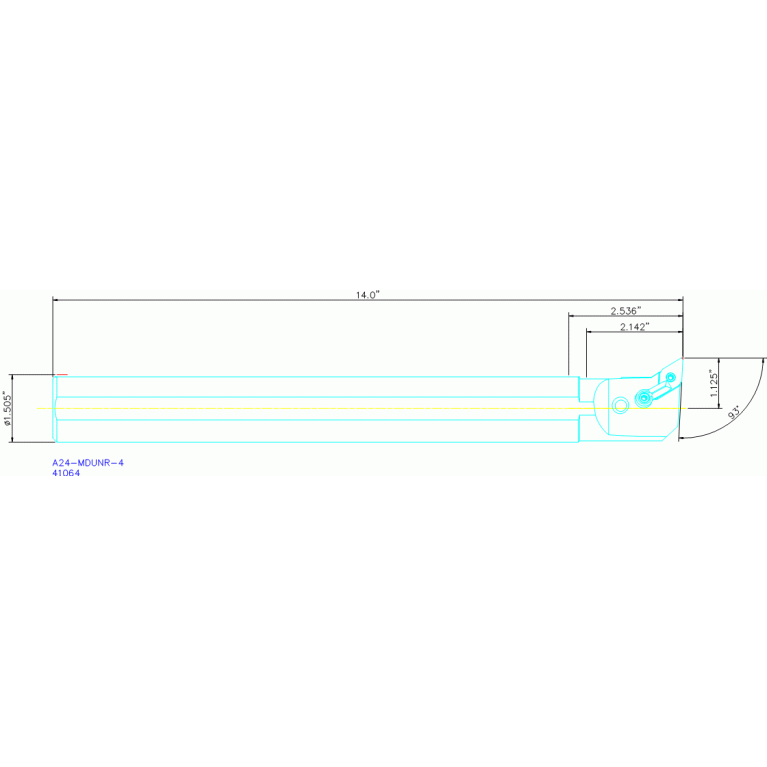

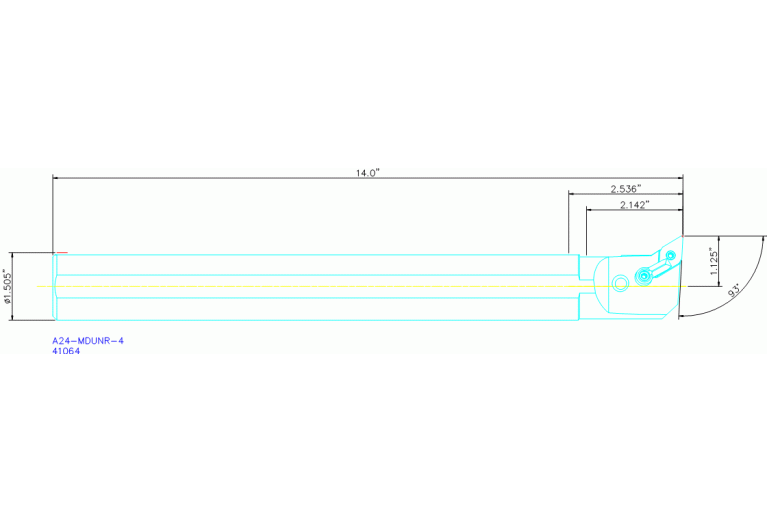

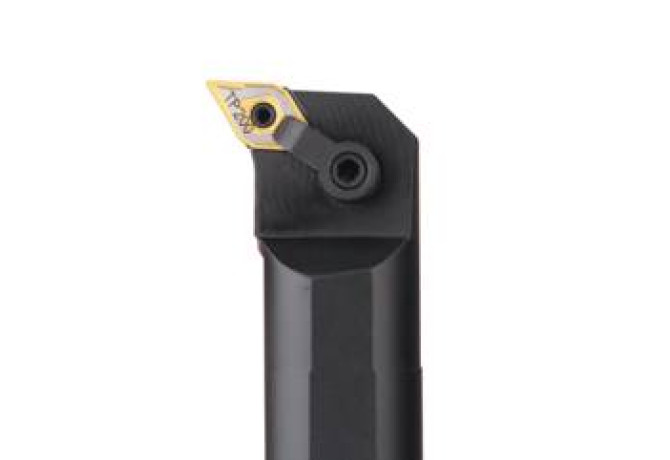

Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning A24-MDUNR-4

A24-MDUNR-4

A24-MDUNR-4

Seco

Артикул: 00041064

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

4.76 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.4 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

ZYL03812215

DIN CSW1

SO-DN2-1504N

DMIN Minimum bore diameter

57.15 mm

EPSR Insert included angle

55 Degree

FamilyProducts

A24-MDUNR-4

GAMO Rake angle orthogonal

-5 Degree

GAMP Rake angle axial

-10 Degree

HAND Cutting direction

R - Right

ID Technical product number

00041064

Interface codes

J6 /

Interface codes CSW1

J41 /

ISISO A Indicator for ISO cutting plate Pos.A

0

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

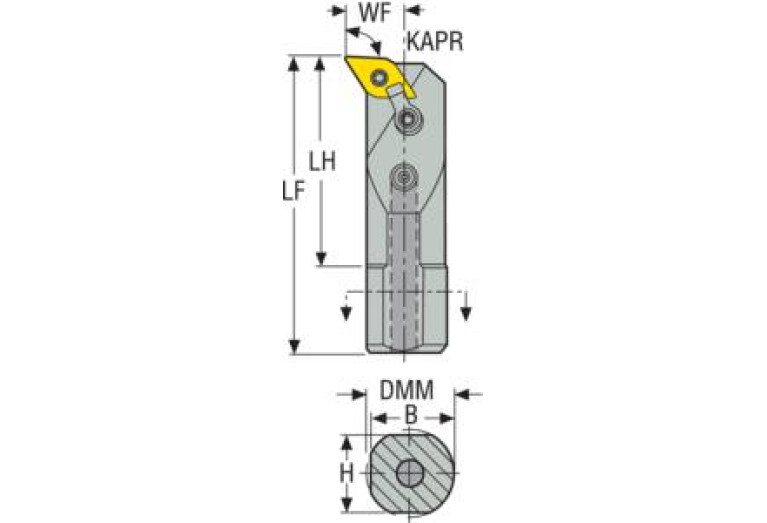

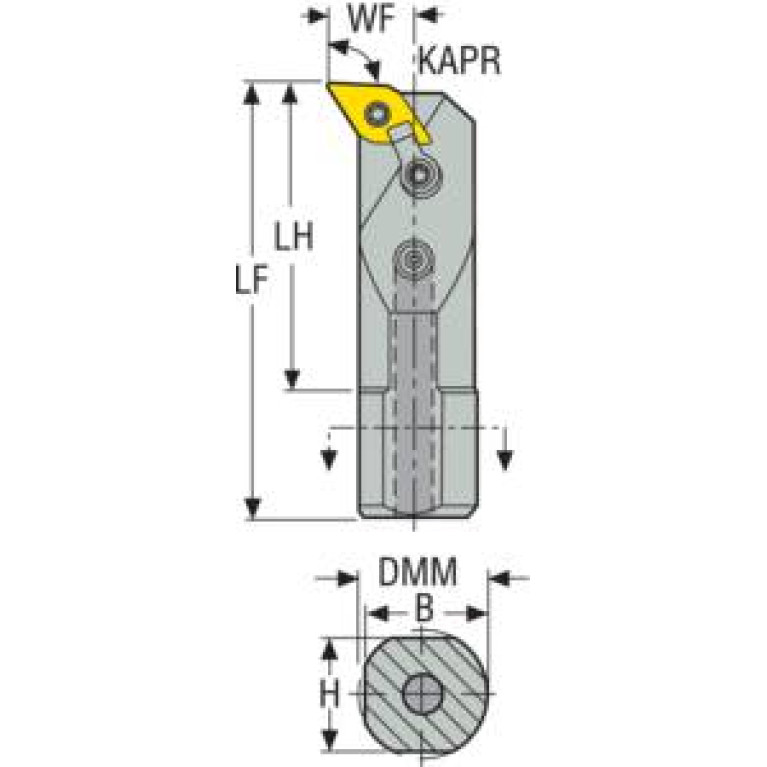

KAPR Tool cutting edge angle

93 Degree

LAMS Inclination angle

-10 Degree

LF Functional length

355.6 mm

LH Head length

54.38 mm

LOC-03 B Shank width

36.05 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0381

LOC-03 DCONMS Diameter

38.1 mm

LOC-03 H Shank height

34 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03812215

MIID Master insert identification

DNGA150404S-01020-L1-B

MTP Clamping type code

M - Top and hole clamping, with cylindrical bore

Name Identifying order number

A24-MDUNR-4

STDDES Standard designation

A24-MDUNR-4

THSC Tool holder shape code

A - offset shank design

WF Functional width

28.58 mm

Working process

No working processes available

WT Weight of item

2.91 kg
