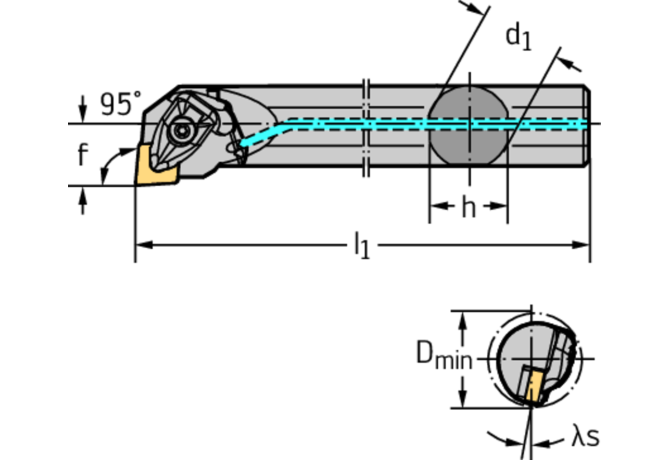

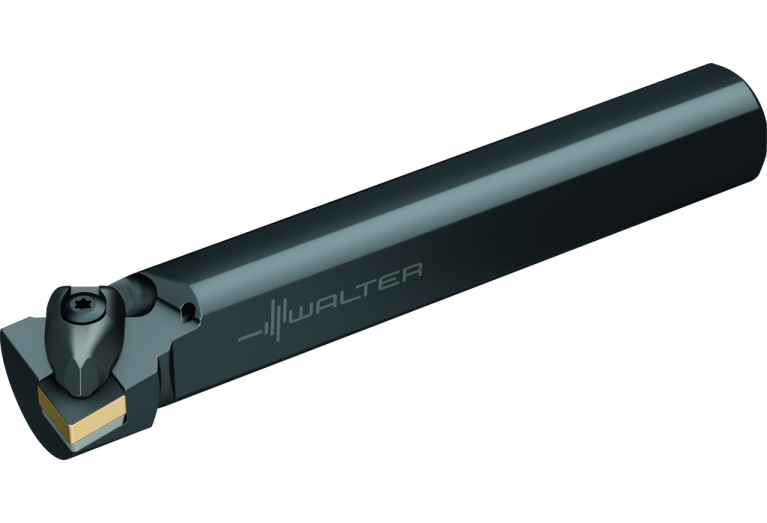

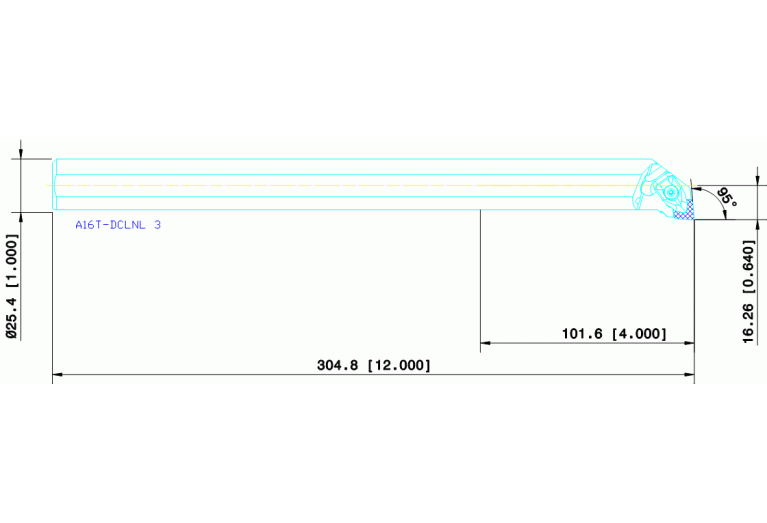

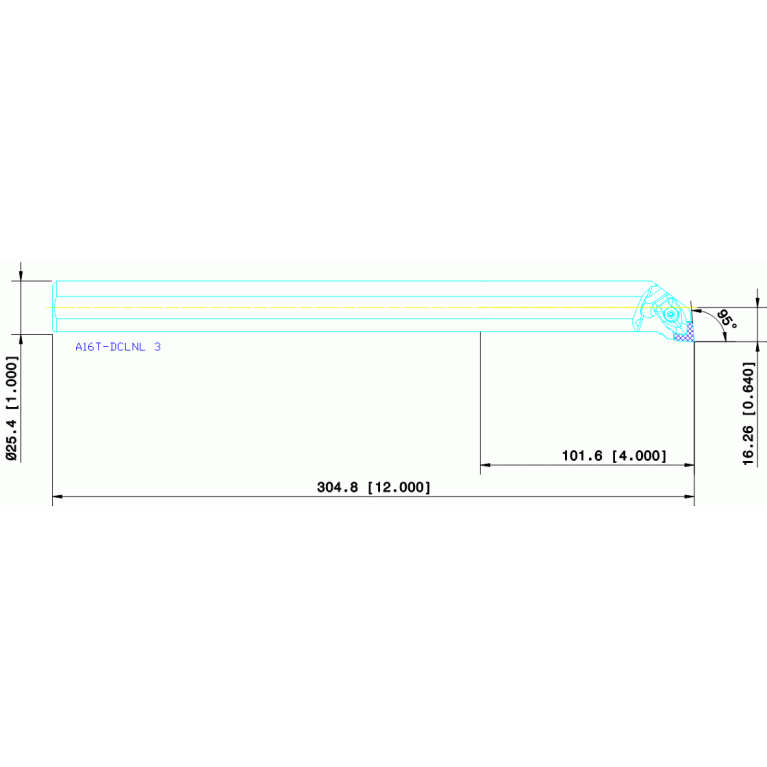

A16T-DCLNL3

Артикул: 6351476

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL10002235

DIN CSW1

CN0903992N

DMIN Minimum bore diameter

30.5 mm

EPSR Insert included angle

80 Degree

FamilyProducts

Boring bar – Rigid clamping A...-DCLN

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

L - Left

HF Functional height

0 mm

ID Technical product number

6351476

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A Indicator for ISO cutting plate Pos.A

ISO

ZYL22S1000$$$$

ISO CSW1

ISO$CN0903002******

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

L Cutting edge length

9.6 mm

LF Functional length

304.8 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

3 Inch with coolant

LOC-03 CZCMS Size code

1000

LOC-03 DCONMS Diameter

25.4 mm

LOC-03 H Shank height

23 mm

LOC-03 ISO

ZYL22S1000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL10002235

LPR Protruding length

304.8 mm

MIID Master insert identification

CNMG 322

MTP Clamping type code

Name Identifying order number

A16T-DCLNL3

OAL Overall length

304.8 mm

WF Functional width

12.7 mm

Working process

DDA - External turning,DDI - Internal turning,DFI - Internal form turning

WT Weight of item

1.034 kg
