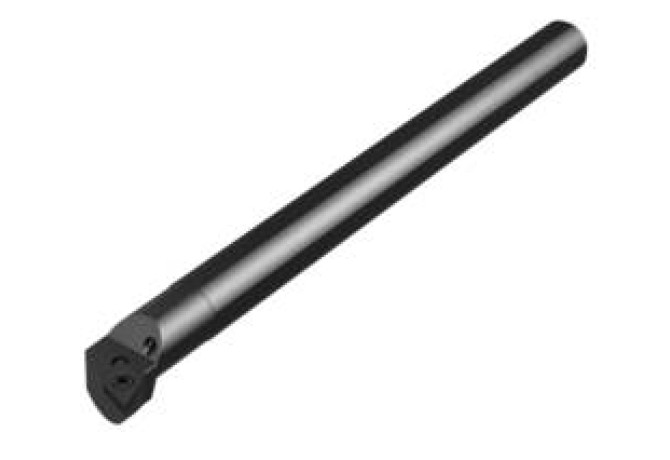

Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning A16-SDQCR-3

A16-SDQCR-3

A16-SDQCR-3

Seco

Артикул: 02829698

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

9.525 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

3.97 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.1 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

ZYL01902215

DIN CSW1

SO-DC3-11T3N

DMIN Minimum bore diameter

38.1 mm

EPSR Insert included angle

55 Degree

FamilyProducts

A16-SDQCR-3

GAMF Rake angle radial

0 Degree

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

R - Right

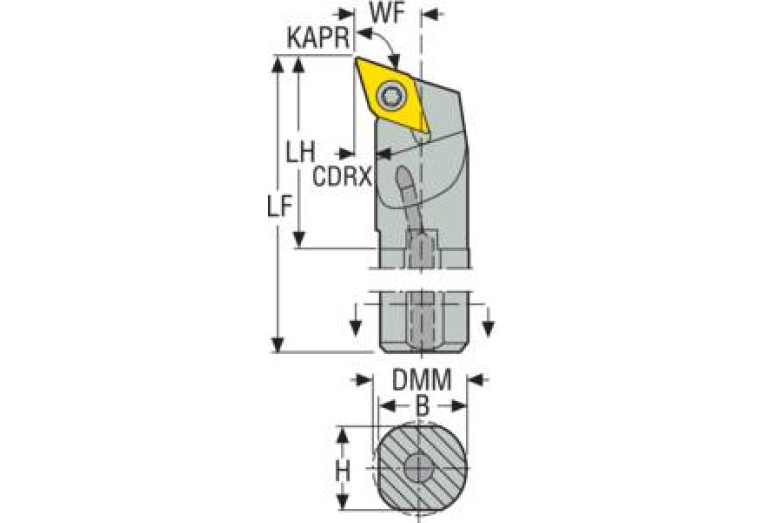

HF Functional height

21.8 mm

ID Technical product number

02829698

Interface codes

J6 /

Interface codes CSW1

J41 /

ISISO A Indicator for ISO cutting plate Pos.A

0

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

107.5 Degree

LAMS Inclination angle

-3.27 Degree

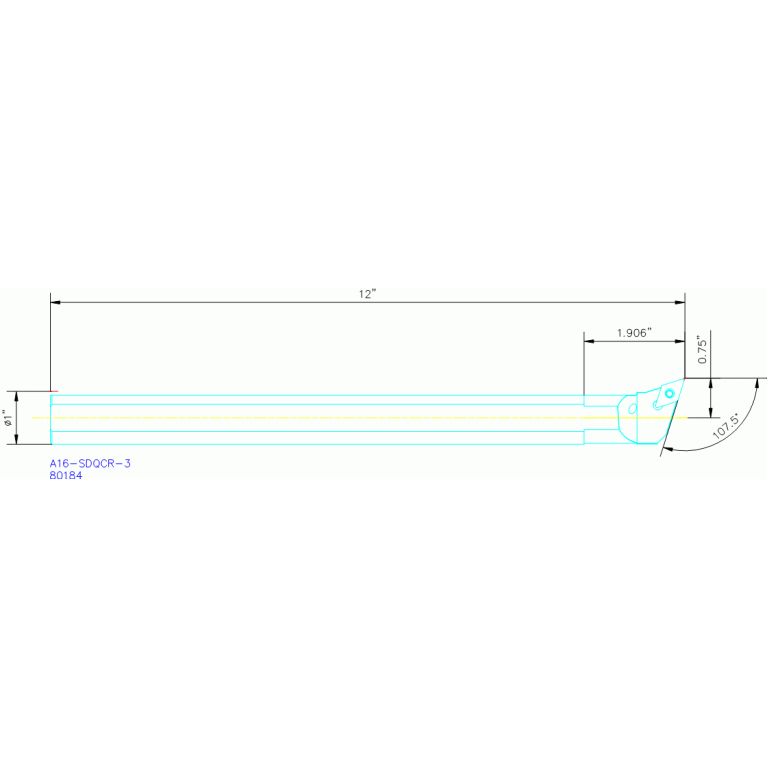

LF Functional length

304.8 mm

LH Head length

23.01 mm

LOC-03 B Shank width

23.6 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0190

LOC-03 DCONMS Diameter

19.05 mm

LOC-03 H Shank height

21.8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01902215

MIID Master insert identification

DCGT11T301-F1

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

A16-SDQCR-3

STDDES Standard designation

A16-SDQCR-3

WF Functional width

19.05 mm

Working process

No working processes available

WT Weight of item

0.96 kg
