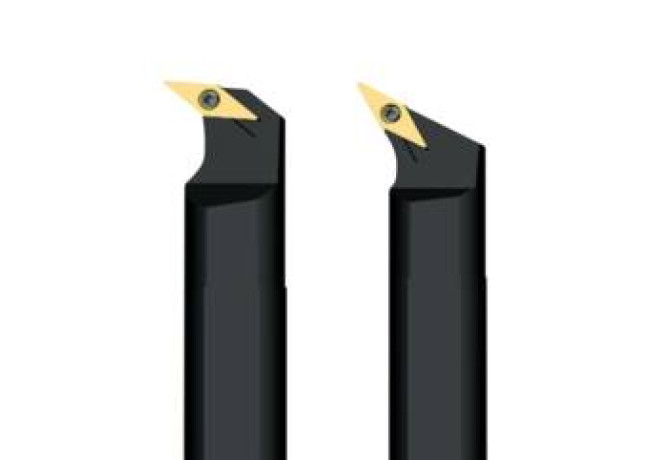

Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning A16-PVPNL-2.5

A16-PVPNL-2.5

A16-PVPNL-2.5

Seco

Артикул: 00015235

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

ZYL02542215

DIN CSW1

SO-VN2-1304N

DMIN Minimum bore diameter

33.02 mm

EPSR Insert included angle

35 Degree

FamilyProducts

A16-PVPNL-2.5

GAMO Rake angle orthogonal

-3 Degree

GAMP Rake angle axial

-12 Degree

HAND Cutting direction

L - Left

ID Technical product number

00015235

Interface codes

J6 /

Interface codes CSW1

J41 /

ISISO A Indicator for ISO cutting plate Pos.A

0

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

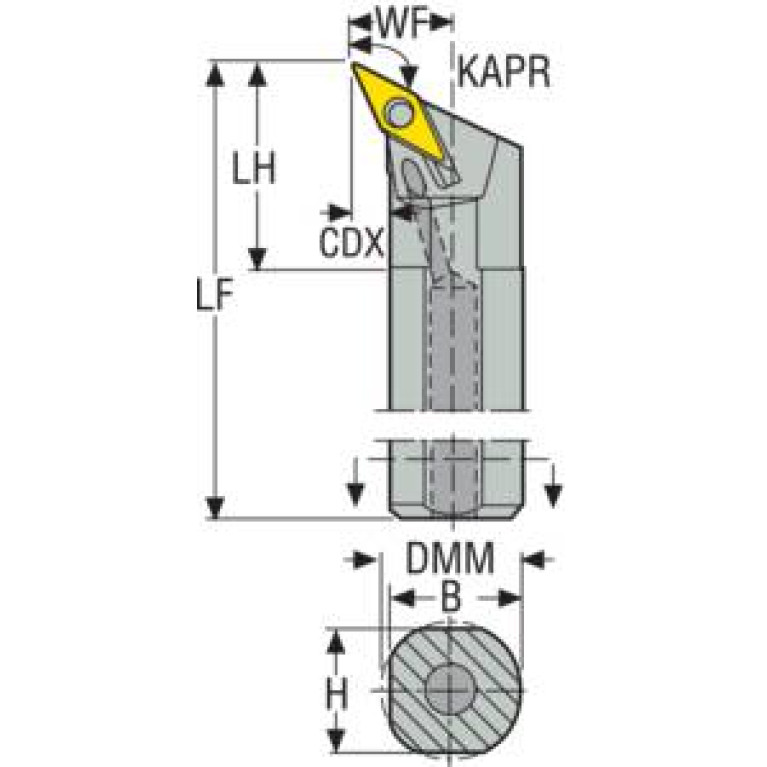

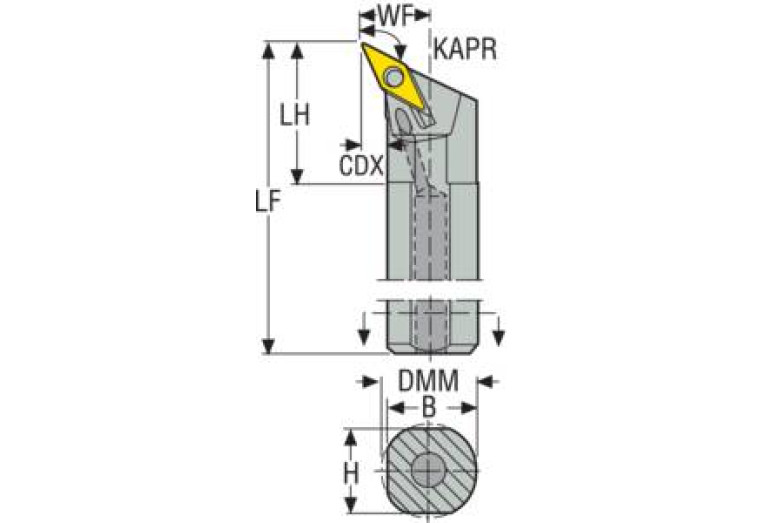

KAPR Tool cutting edge angle

117.5 Degree

LAMS Inclination angle

-12 Degree

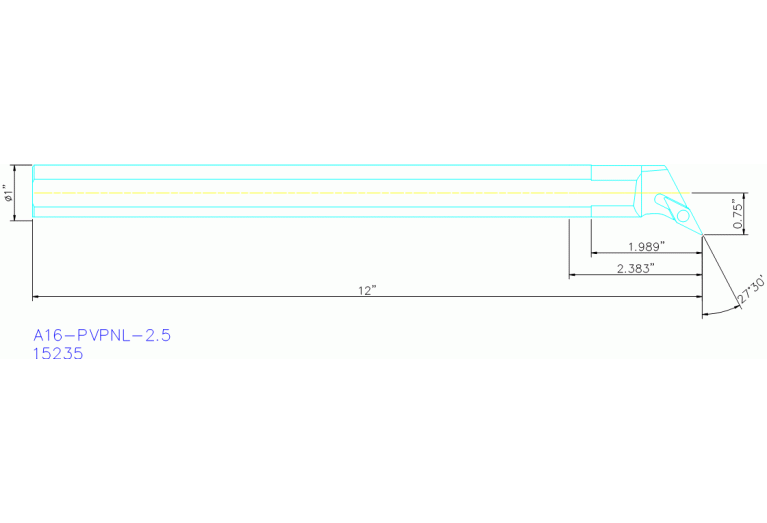

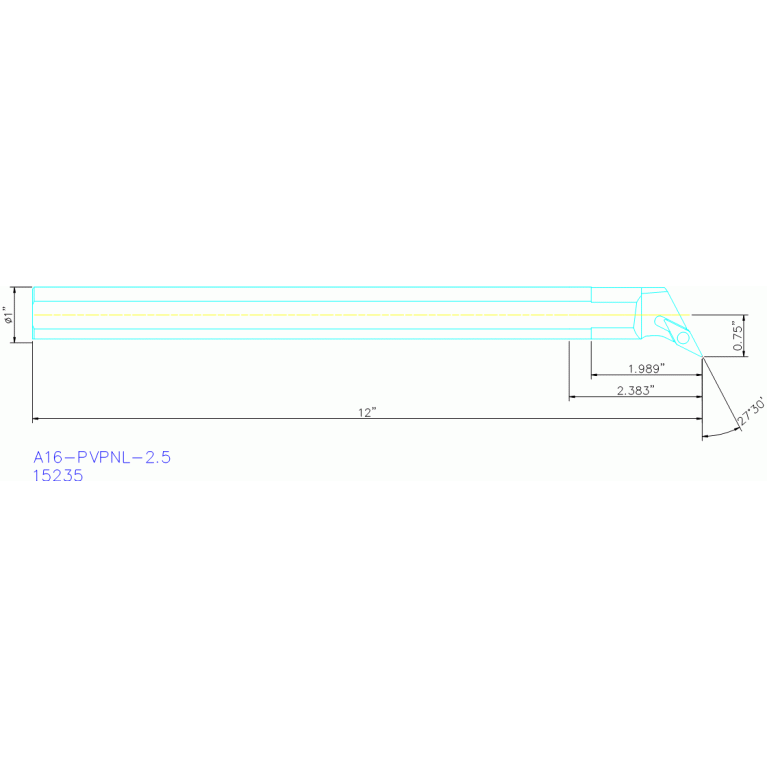

LF Functional length

304.8 mm

LH Head length

27.9 mm

LOC-03 B Shank width

23 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0254

LOC-03 DCONMS Diameter

25.4 mm

LOC-03 H Shank height

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02542215

MIID Master insert identification

VN1304

MTP Clamping type code

P - Hole clamping, with straight bore

Name Identifying order number

A16-PVPNL-2.5

STDDES Standard designation

A16-PVPNL-2.5

THSC Tool holder shape code

A - offset shank design

WF Functional width

19.05 mm

Working process

No working processes available

WT Weight of item

1.08 kg
