Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning A16-MTFNR-3

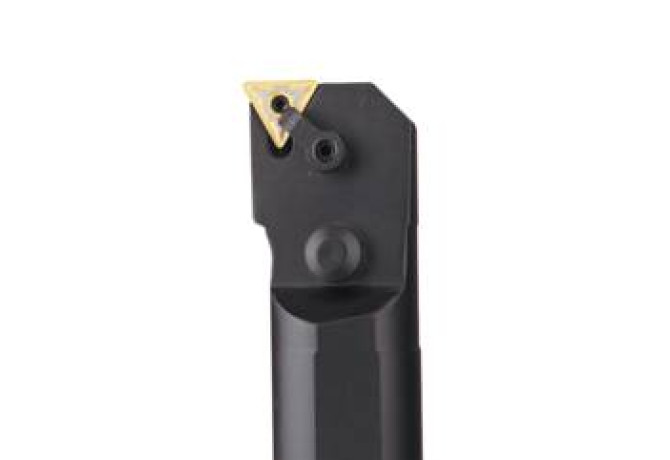

A16-MTFNR-3

A16-MTFNR-3

Seco

Артикул: 00041090

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

9.525 mm

BLDA Tool style code Position A

1

C1A Insert thickness Pos. A

4.76 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.4 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

ZYL02542215

DIN CSW1

SO-TN2-1604N

DMIN Minimum bore diameter

32.5 mm

EPSR Insert included angle

60 Degree

FamilyProducts

A16-MTFNR-3

GAMO Rake angle orthogonal

-5 Degree

GAMP Rake angle axial

-12 Degree

HAND Cutting direction

R - Right

ID Technical product number

00041090

Interface codes

J6 /

Interface codes CSW1

J41 /

ISISO A Indicator for ISO cutting plate Pos.A

0

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

90 Degree

LAMS Inclination angle

-12 Degree

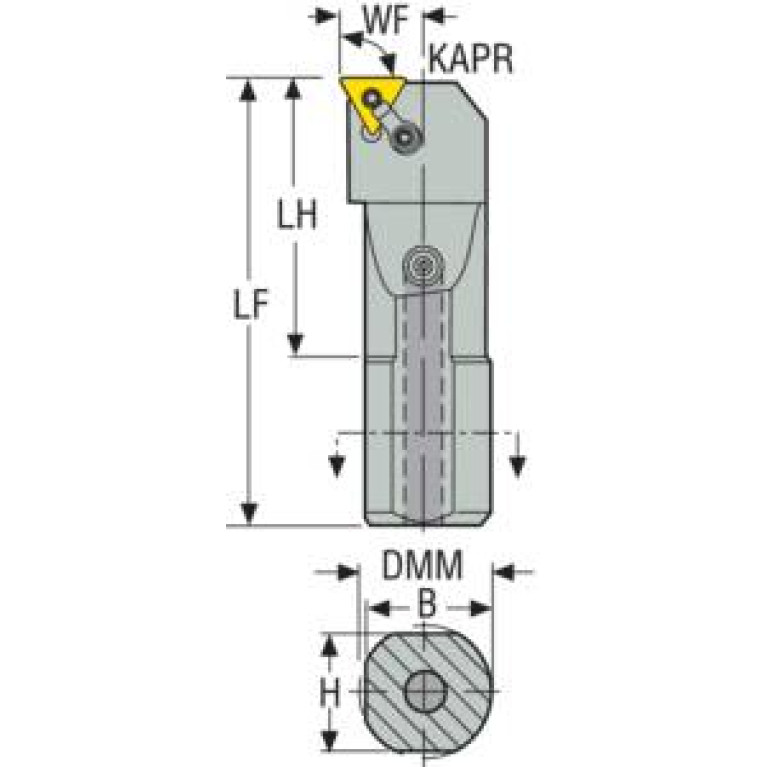

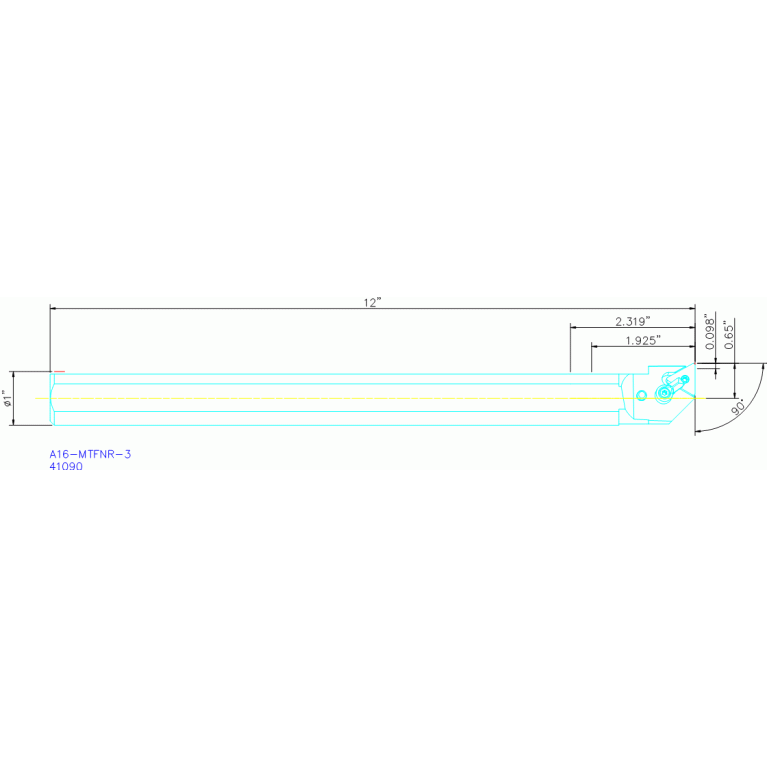

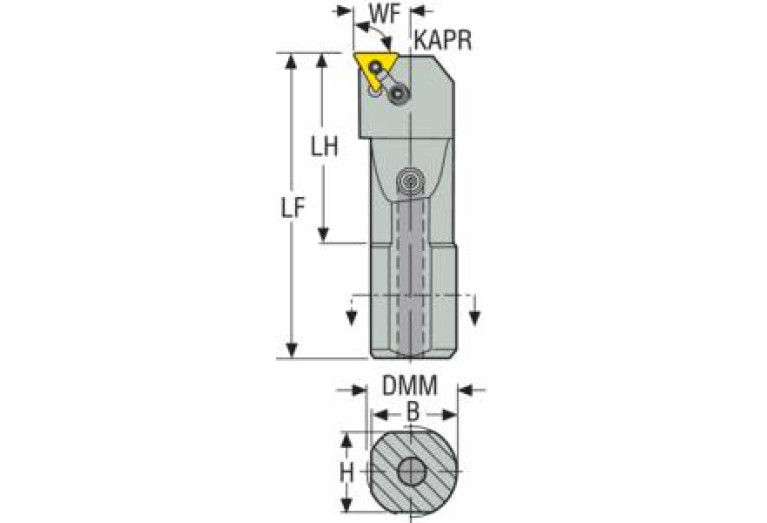

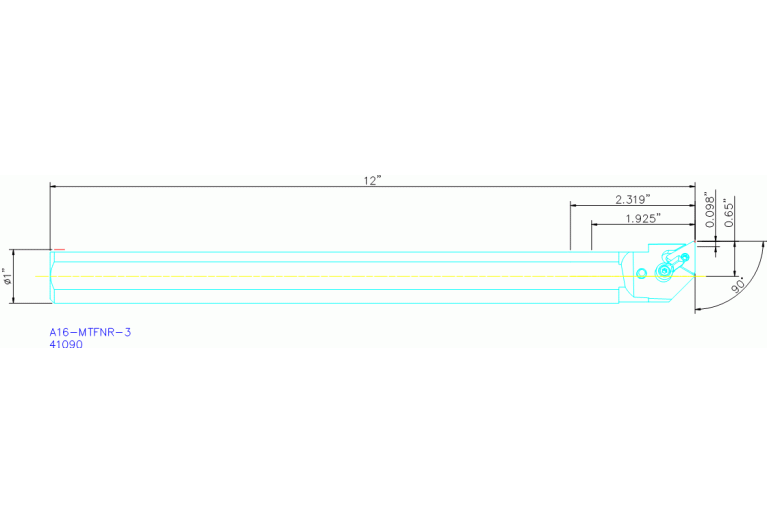

LF Functional length

304.8 mm

LH Head length

48.87 mm

LOC-03 B Shank width

23.7 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0254

LOC-03 DCONMS Diameter

25.4 mm

LOC-03 H Shank height

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02542215

MIID Master insert identification

TNGA160404S-01020-L1-C

MTP Clamping type code

M - Top and hole clamping, with cylindrical bore

Name Identifying order number

A16-MTFNR-3

STDDES Standard designation

A16-MTFNR-3

THSC Tool holder shape code

A - offset shank design

WF Functional width

16.26 mm

Working process

No working processes available

WT Weight of item

1.1 kg
