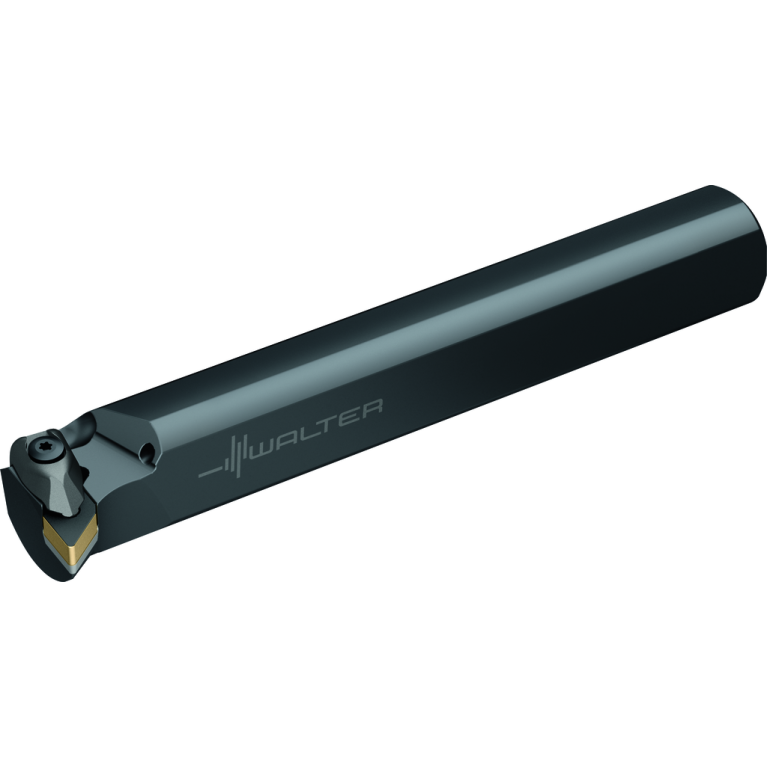

Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning A12S-DDUNL3

A12S-DDUNL3

Артикул: 6351538

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

CEATC Tool cutting edge angle type code

B - Side and front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL07502235

DIN CSW1

DN1104992N

DMIN Minimum bore diameter

31.75 mm

EPSR Insert included angle

55 Degree

FamilyProducts

Boring bar – Rigid clamping A...-DDUN

GAMO Rake angle orthogonal

-6 Degree

HAND Cutting direction

L - Left

HF Functional height

0 mm

ID Technical product number

6351538

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A Indicator for ISO cutting plate Pos.A

ISO

ZYL22R7500$$$$

ISO CSW1

ISO$DN1104002******

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

93 Degree

L Cutting edge length

11.6 mm

LF Functional length

254 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

3 Inch with coolant

LOC-03 CZCMS Size code

0750

LOC-03 DCONMS Diameter

19.05 mm

LOC-03 H Shank height

18 mm

LOC-03 ISO

ZYL22R7500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL07502235

LPR Protruding length

254 mm

MIID Master insert identification

DNMG 332

MTP Clamping type code

Name Identifying order number

A12S-DDUNL3

OAL Overall length

254 mm

THSC Tool holder shape code

G - straight shank design

WF Functional width

15.87 mm

Working process

DDI - Internal turning,DFI - Internal form turning

WT Weight of item

0.53 kg
