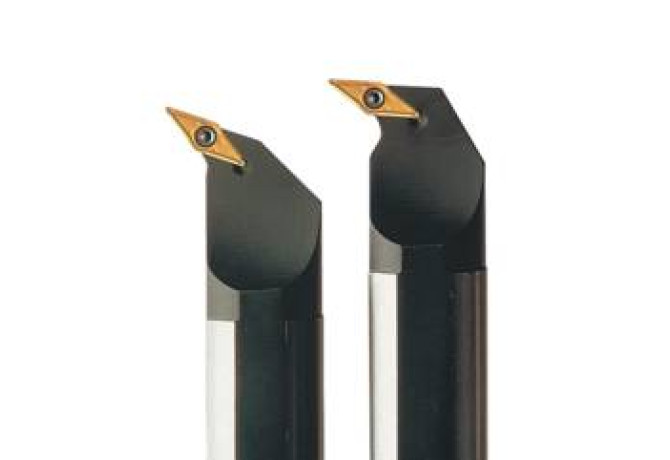

Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning A12-SVQBR-2

A12-SVQBR-2

A12-SVQBR-2

Seco

Артикул: 00002730

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

5 Degree

B3A Inscribed circle diameter Pos. A

6.35 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

2.38 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.1 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

ZYL01902215

DIN CSW1

SO-VB3-1102N

DMIN Minimum bore diameter

28.58 mm

EPSR Insert included angle

35 Degree

FamilyProducts

A12-SVQBR-2

GAMO Rake angle orthogonal

0 Degree

GAMP Rake angle axial

-5 Degree

HAND Cutting direction

R - Right

ID Technical product number

00002730

Interface codes

J6 /

Interface codes CSW1

J41 /

ISISO A Indicator for ISO cutting plate Pos.A

0

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

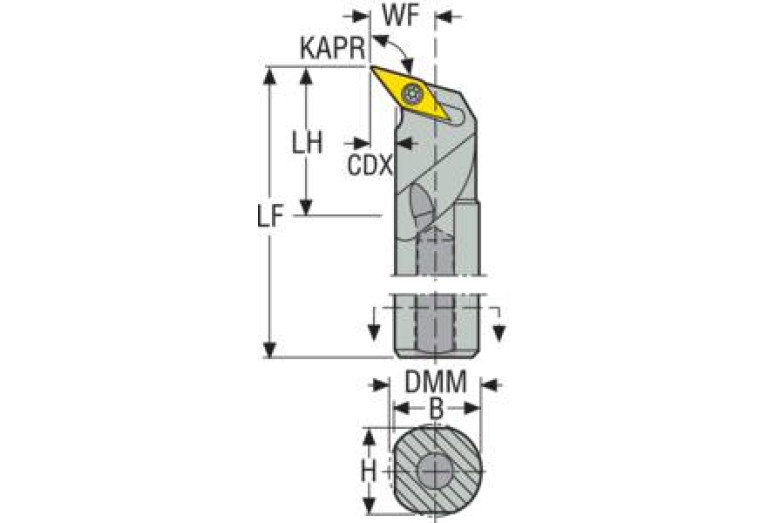

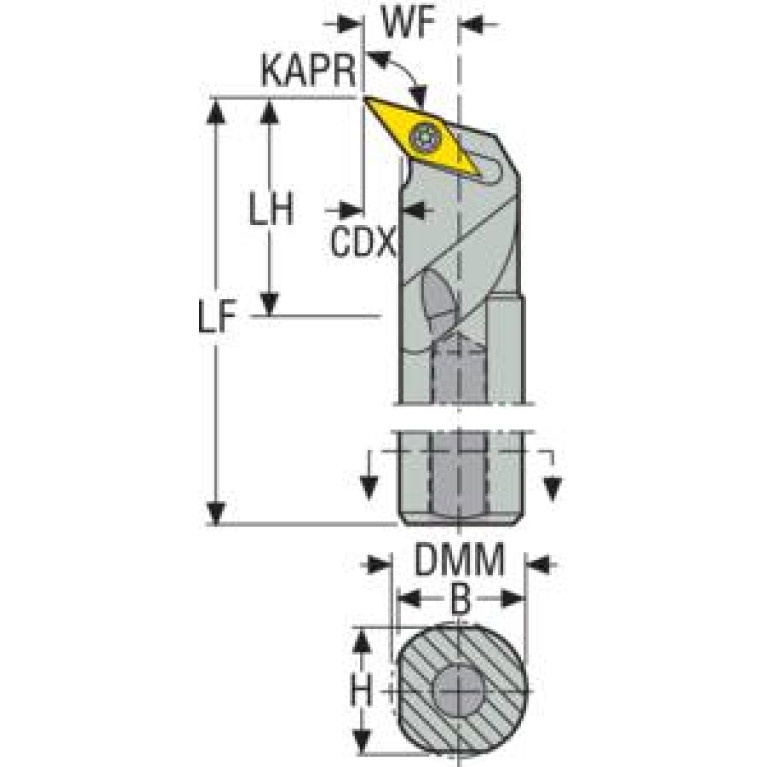

KAPR Tool cutting edge angle

107.5 Degree

LAMS Inclination angle

-5 Degree

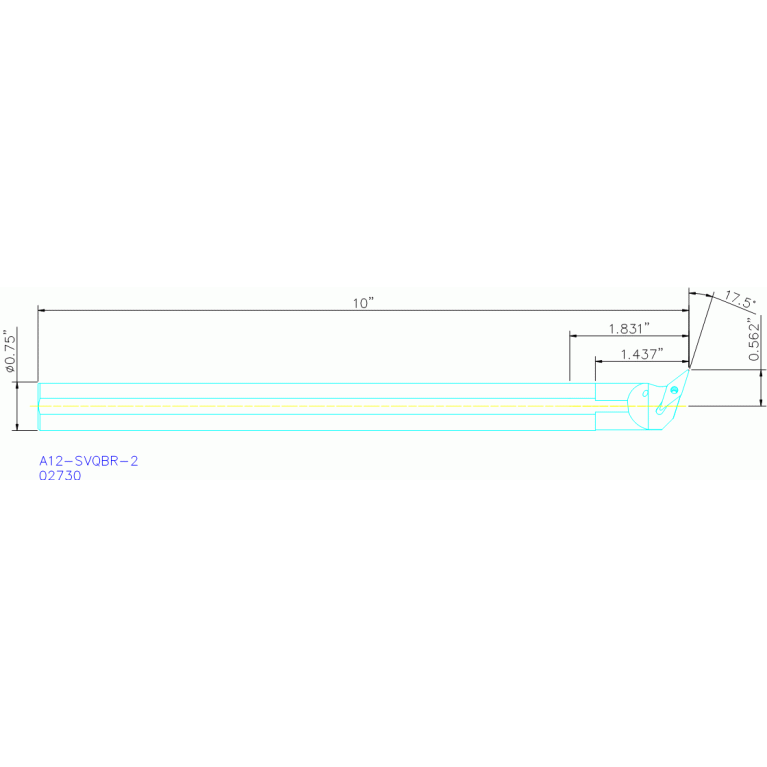

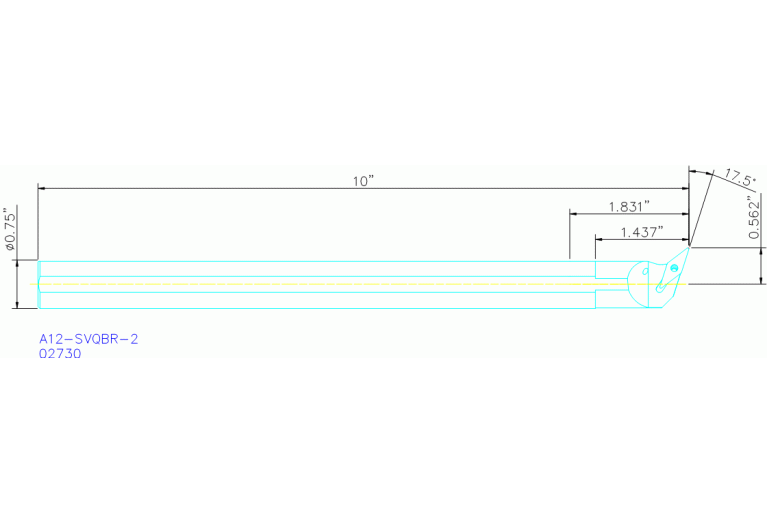

LF Functional length

254 mm

LH Head length

36.3 mm

LOC-03 B Shank width

18.5 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0190

LOC-03 DCONMS Diameter

19.05 mm

LOC-03 H Shank height

18 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01902215

MIID Master insert identification

VBGT110201-F1

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

A12-SVQBR-2

STDDES Standard designation

A12-SVQBR-2

WF Functional width

28.58 mm

Working process

No working processes available

WT Weight of item

0.56 kg
