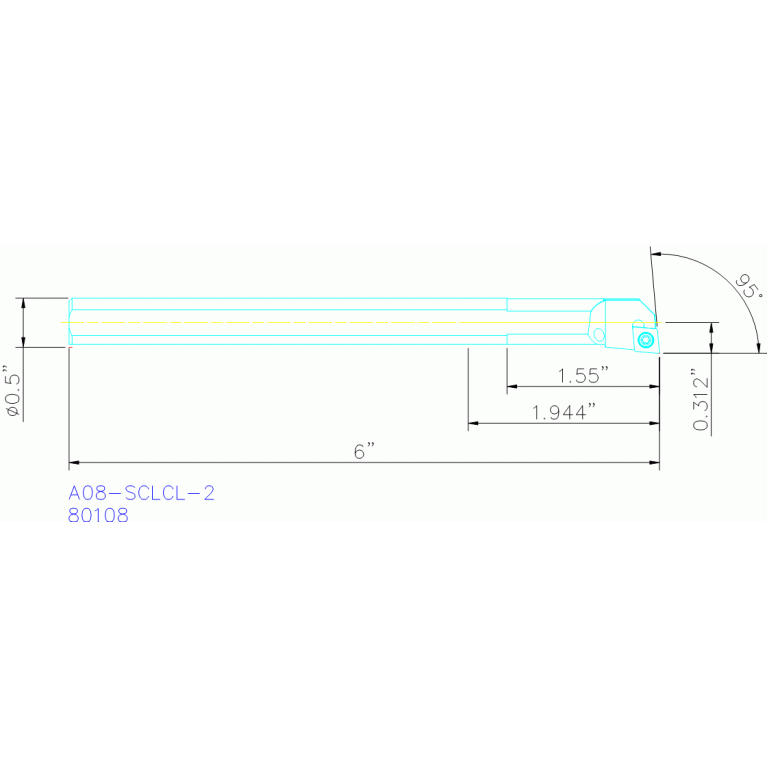

Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning A08-SCLCL-2

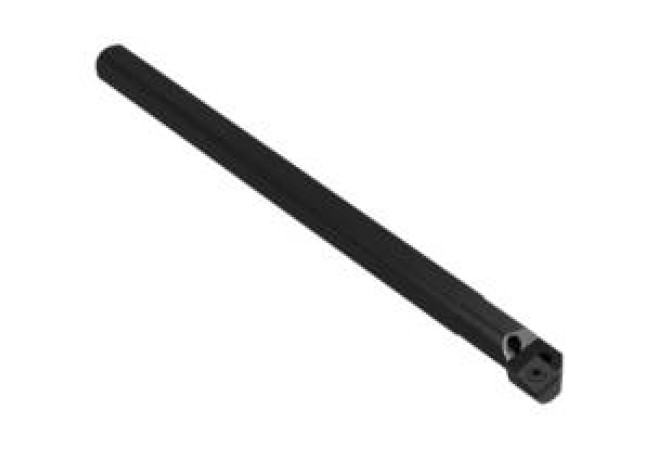

A08-SCLCL-2

A08-SCLCL-2

Seco

Артикул: 02829671

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

6.35 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

2.38 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

ZYL01272215

DIN CSW1

SO-CC3-0602N

DMIN Minimum bore diameter

14.5 mm

EPSR Insert included angle

80 Degree

FamilyProducts

A08-SCLCL-2

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

L - Left

HF Functional height

0 mm

ID Technical product number

02829671

Interface codes

J6 /

Interface codes CSW1

J41 /

ISISO A Indicator for ISO cutting plate Pos.A

0

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

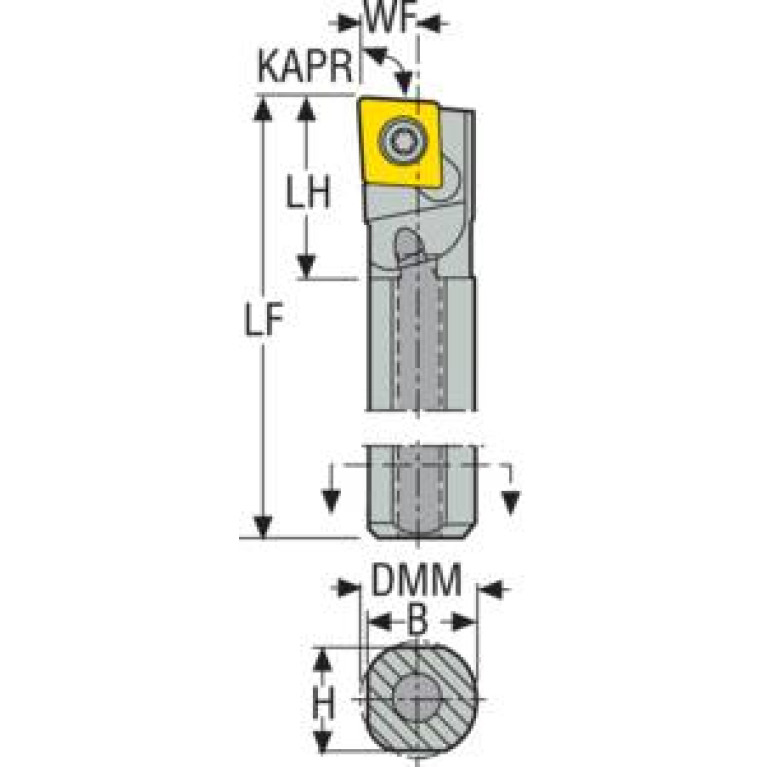

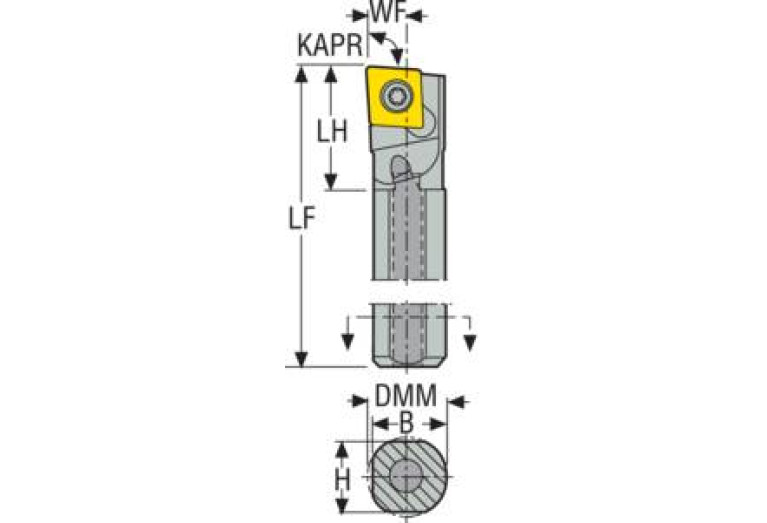

KAPR Tool cutting edge angle

95 Degree

LAMS Inclination angle

-7.9 Degree

LF Functional length

152.4 mm

LH Head length

39.37 mm

LOC-03 B Shank width

11.75 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0127

LOC-03 DCONMS Diameter

12.7 mm

LOC-03 H Shank height

10.8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01272215

MIID Master insert identification

CCGT060200

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

A08-SCLCL-2

STDDES Standard designation

A08-SCLCL-2

THSC Tool holder shape code

A - offset shank design

WF Functional width

7.92 mm

Working process

No working processes available

WT Weight of item

0.34 kg
