Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning SSSCL2020K12

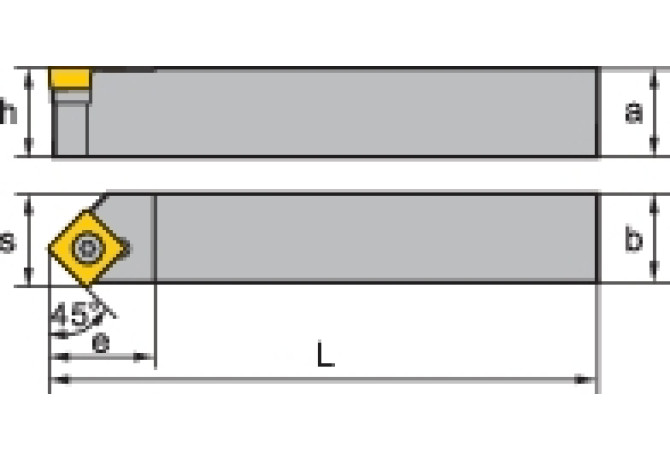

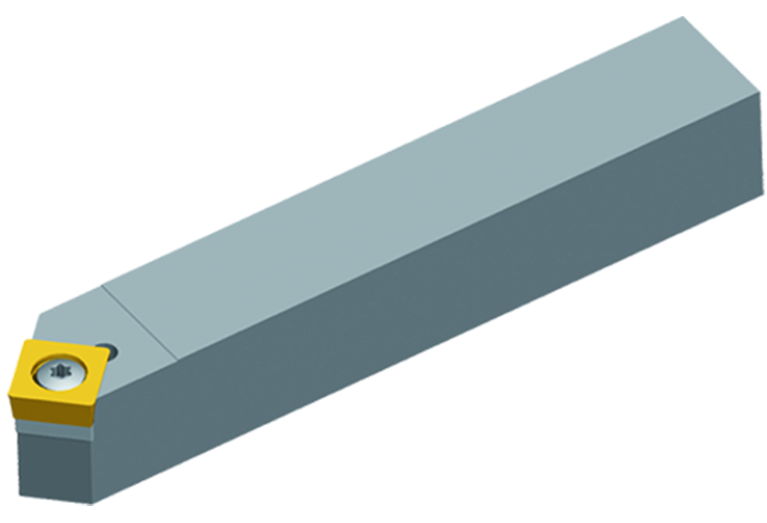

SSSCL2020K12

SSSCL2020K12

Артикул: SSSCL2020K12

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

2

C1A Insert thickness Pos. A

4.76 mm

CEATC Tool cutting edge angle type code

S - Side lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.4 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3.7 kg

DIN

VKT20200105

DIN CSW1

SC1204123N

EPSR Insert included angle

90 Degree

FamilyProducts

SC** steel boring bar

HAND Cutting direction

L - Left

HF Functional height

20 mm

ID Identifying order number

SSSCL2020K12

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

45 Degree

L Cutting edge length

12.7 mm

LF Functional length

125 mm

LH Head length

21 mm

LOC-03 B Shank width

20 mm

LOC-03 CCFMS Form

01

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

2020

LOC-03 H Shank height

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT20200105

MIID Master insert identification

SCMT120404

MTP Clamping type code

S - Screwed across bore with, counter bore

OAL Overall length

125 mm

STDDES Standard designation

SSSCL2020K12

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

G - straight shank design

WF Functional width

21 mm

Working process

DDA - External turning
