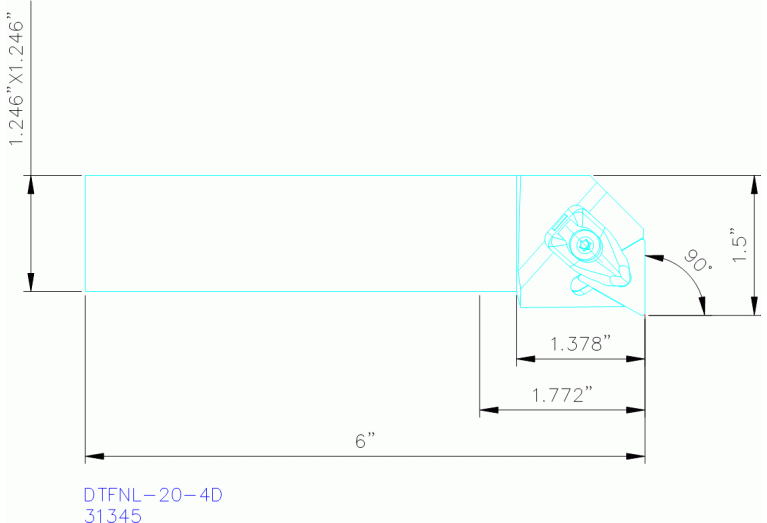

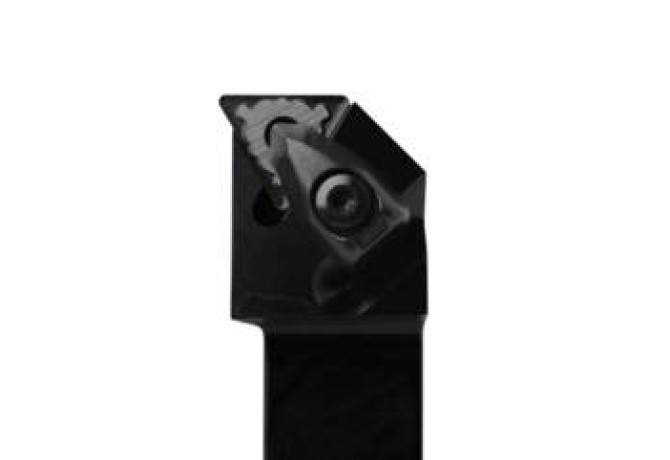

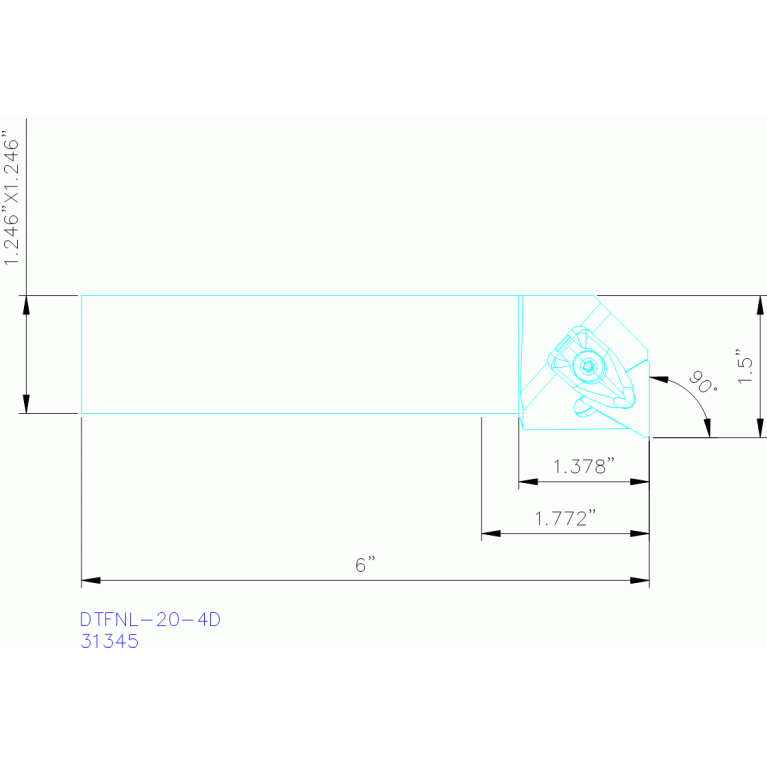

Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning DTFNL-20-4D

DTFNL-20-4D

DTFNL-20-4D DTFNL-20-4D DTFNL-20-4D DTFNL-20-4D

DTFNL-20-4D

Seco
Артикул: 02565882
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
VKT20200125
EPSR Insert included angle
60 Degree
FamilyProducts
DTFNL-20-4D
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
L - Left
HF Functional height
31.75 mm
ID Technical product number
02565882
Interface codes
J6 /
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO CSW1
ISO$TN2204**2LB****
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

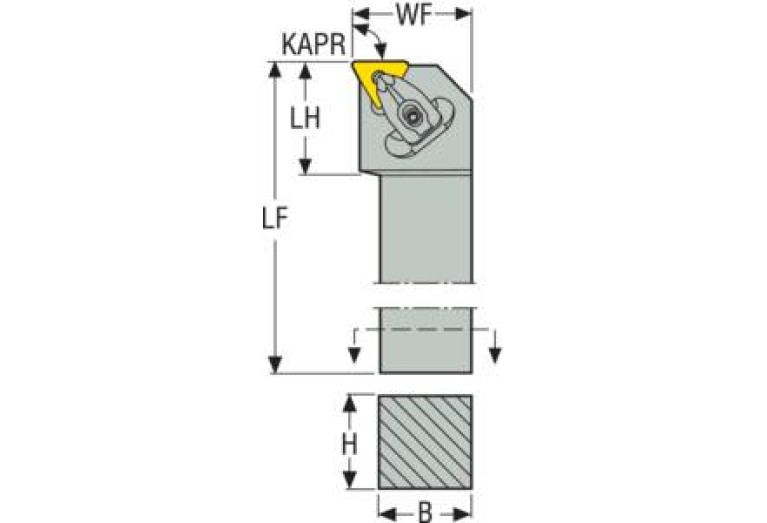

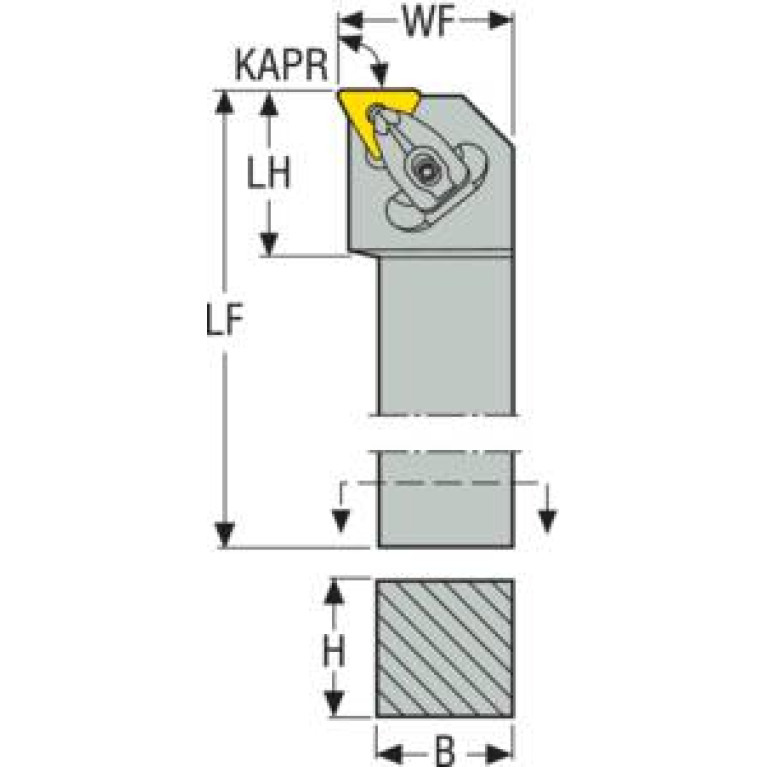

KAPR Tool cutting edge angle
90 Degree
LAMS Inclination angle
-6 Degree
LF Functional length
152.4 mm
LH Head length
35 mm
LOC-03 B Shank width
31.75 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
2020
LOC-03 H Shank height
31.75 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT20200125
MIID Master insert identification
TN2204
MTP Clamping type code
D
Name Identifying order number
DTFNL-20-4D
STDDES Standard designation
DTFNL-20-4D
THSC Tool holder shape code
A - offset shank design
WF Functional width
38.1 mm
Working process
No working processes available
WT Weight of item
1.201 kg
