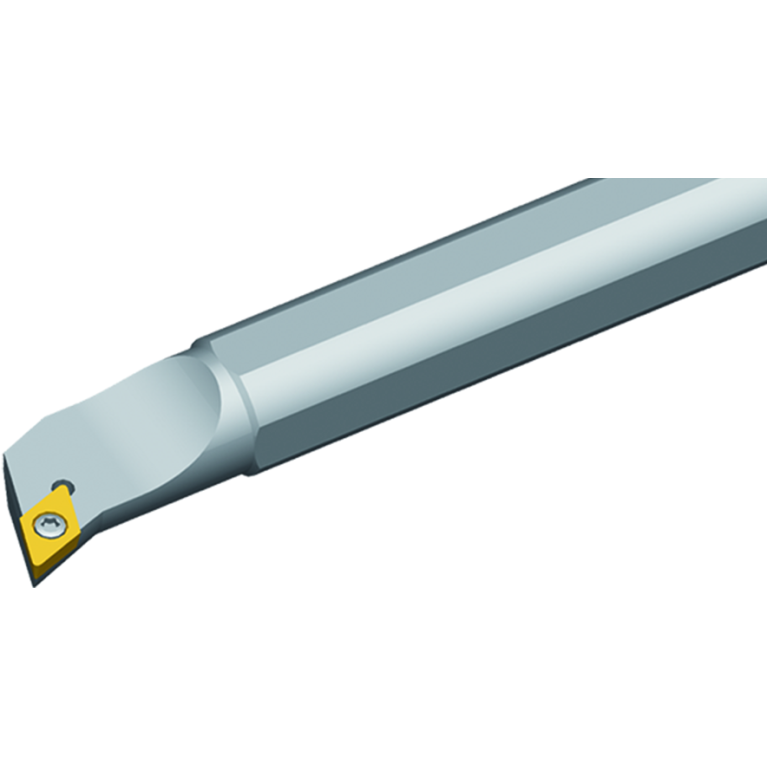

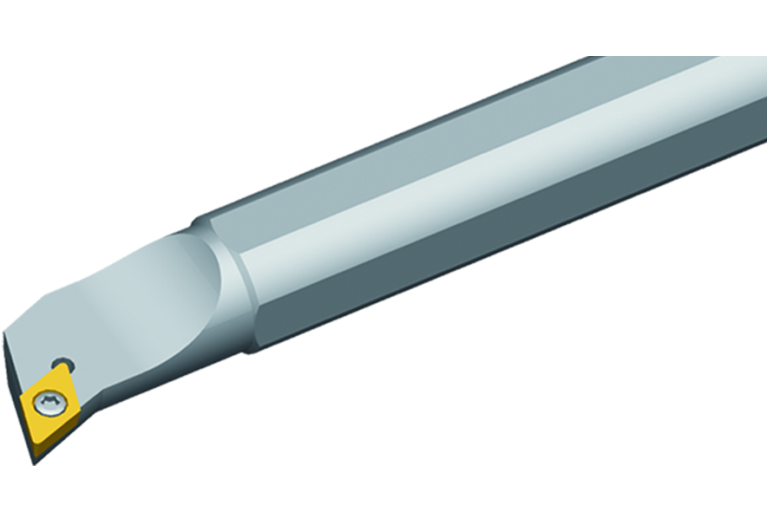

A10H-SDQCL07

Артикул: A10H-SDQCL07

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

6.35 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

2.38 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.05 mm

DCC Design configuration style code

A - Solid steel, with internal coolant supply

DCP Data chip provision

0 - Without data chip

Delivery state valid from

0.5 kg

DIN

ZYL01002215

DIN CSW1

DC0702083N

DMIN Minimum bore diameter

13 mm

EPSR Insert included angle

55 Degree

FamilyProducts

DC** steel boring bar

GAMF Rake angle radial

-8 Degree

HAND Cutting direction

L - Left

ID Identifying order number

A10H-SDQCL07

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

107.5 Degree

L Cutting edge length

7.8 mm

LF Functional length

100 mm

LH Head length

20 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03 H Shank height

9.5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01002215

MIID Master insert identification

DCGT070200

MTP Clamping type code

S - Screwed across bore with, counter bore

OAL Overall length

100 mm

STDDES Standard designation

A10H-SDQCL07

SX Shank cross section shape code

31 - (left) Round shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

7 mm

Working process

DDB - External and internal turning,DFI - Internal form turning,DPI - Profiling internal
