Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning A20S-STFCR11

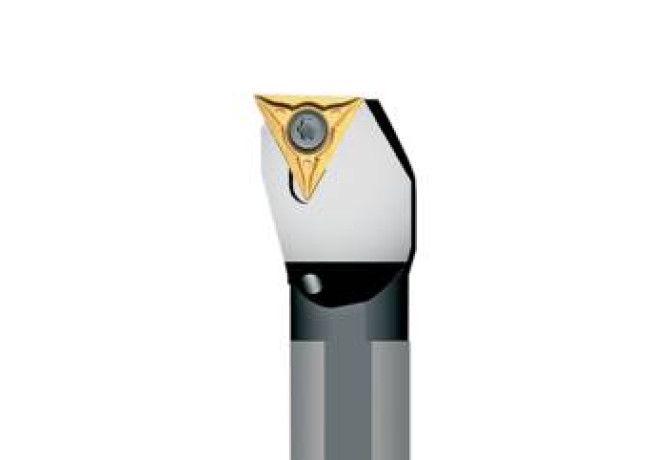

A20S-STFCR11

A20S-STFCR11

Seco

Артикул: 00093847

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

6.35 mm

BLDA Tool style code Position A

1

C1A Insert thickness Pos. A

2.38 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.1 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

ZYL02002215

DMIN Minimum bore diameter

25 mm

EPSR Insert included angle

60 Degree

FamilyProducts

A20S-STFCR11

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

R - Right

ID Technical product number

00093847

Interface codes

J6 /

Interface codes CSW1

/ J441

ISISO A Indicator for ISO cutting plate Pos.A

0

ISO CSW1

ISO$TC1102**3RB****

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

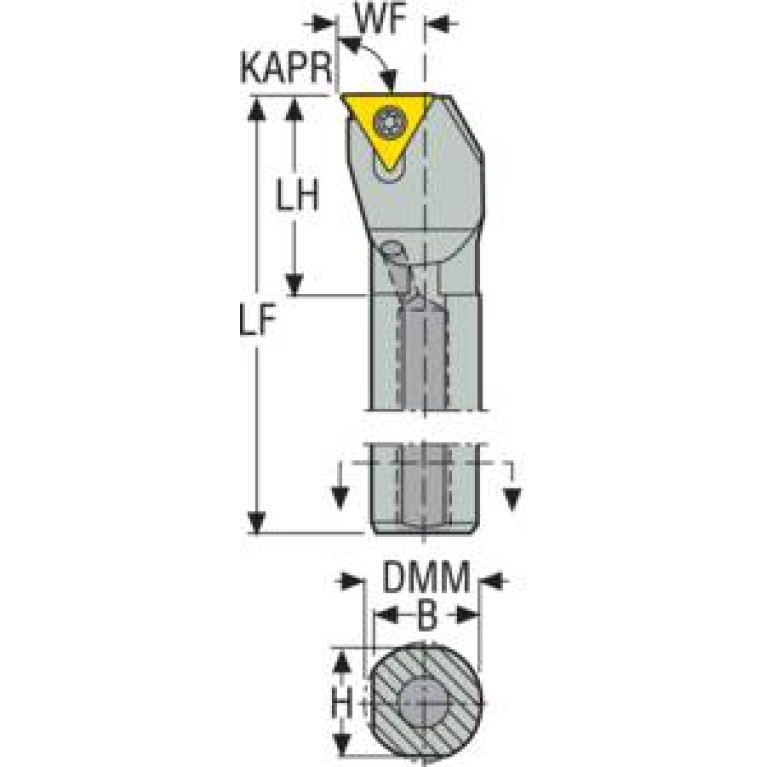

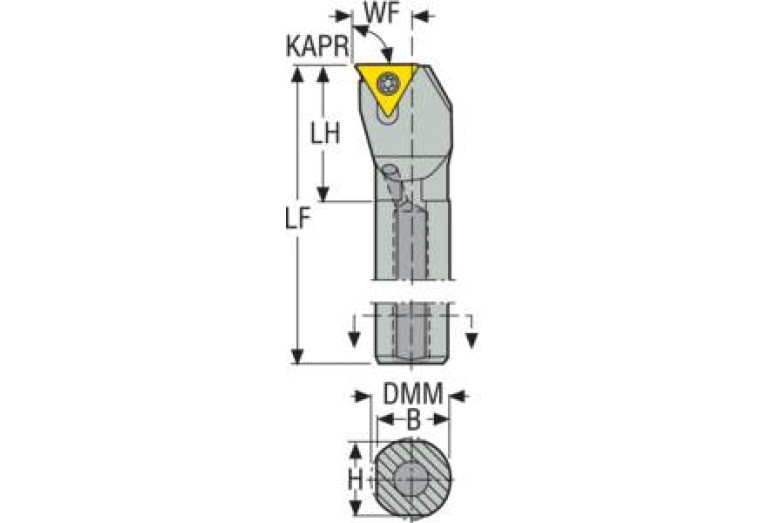

KAPR Tool cutting edge angle

90 Degree

LAMS Inclination angle

-3 Degree

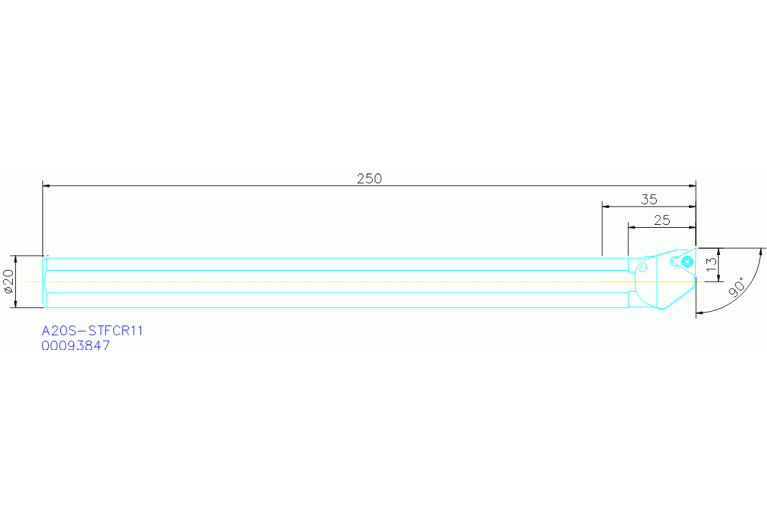

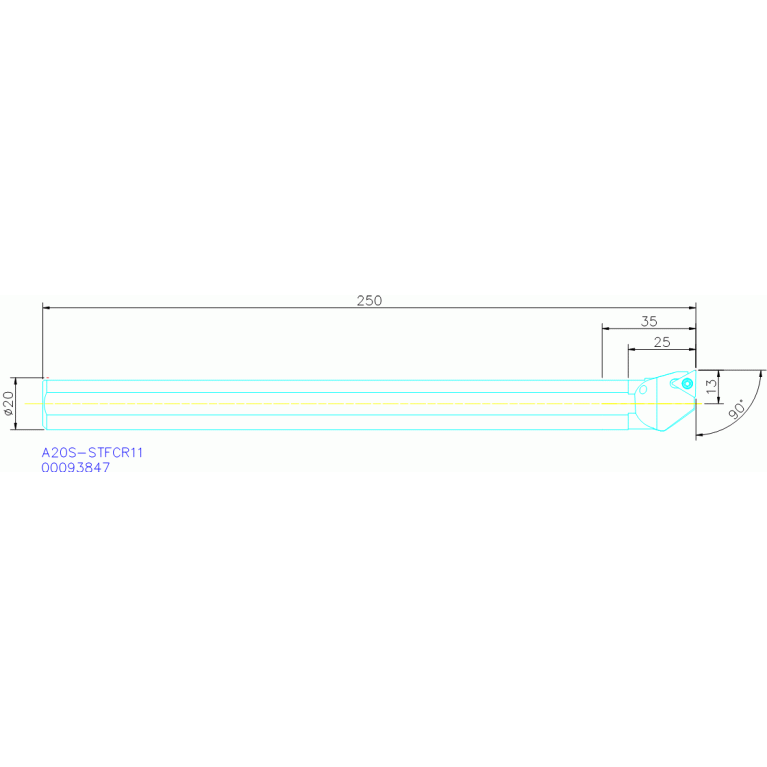

LF Functional length

250 mm

LH Head length

25 mm

LOC-03 B Shank width

18.5 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 H Shank height

18 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02002215

MIID Master insert identification

TCGT110201-F1

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

A20S-STFCR11

STDDES Standard designation

A20S-STFCR11

THSC Tool holder shape code

A - offset shank design

WF Functional width

13 mm

Working process

No working processes available

WT Weight of item

0.455 kg
