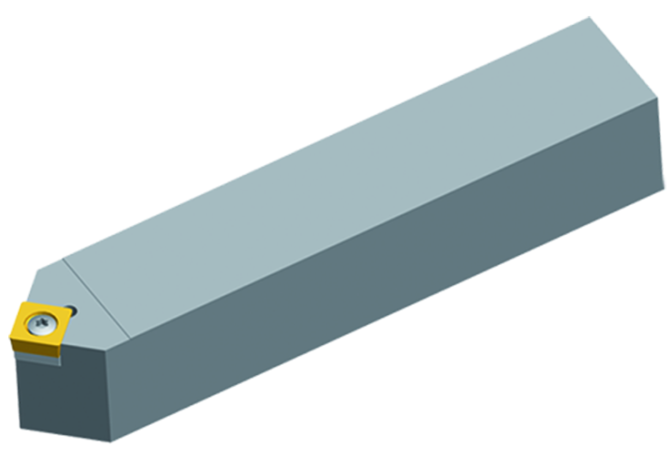

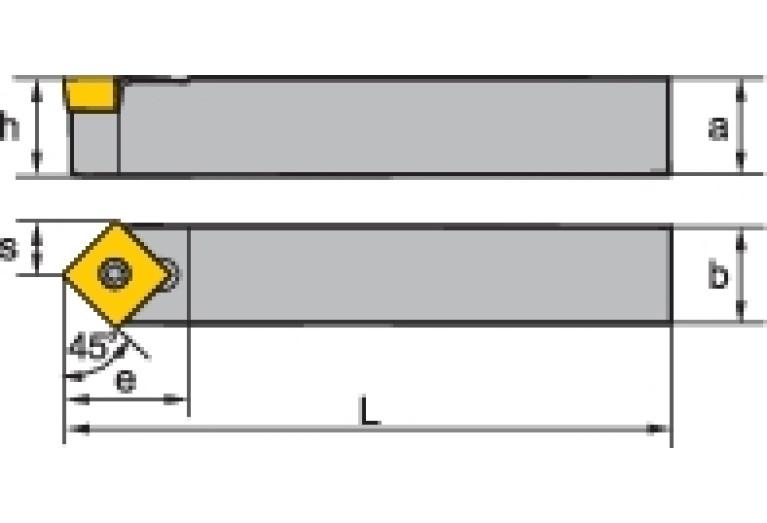

SSDCN1212F09

Артикул: SSDCN1212F09

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

9.525 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

3.97 mm

CEATC Tool cutting edge angle type code

S - Side lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.2 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

0.9 kg

DIN

VKT12120105

DIN CSW1

SC09T3123N

EPSR Insert included angle

90 Degree

FamilyProducts

SC** steel boring bar

HAND Cutting direction

N - Neutral

HF Functional height

12 mm

ID Identifying order number

SSDCN1212F09

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

45 Degree

L Cutting edge length

9.525 mm

LF Functional length

80 mm

LH Head length

15.5 mm

LOC-03 B Shank width

12 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

1212

LOC-03 H Shank height

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT12120105

MIID Master insert identification

SCMT09T302

MTP Clamping type code

S - Screwed across bore with, counter bore

OAL Overall length

80 mm

STDDES Standard designation

SSDCN1212F09

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

G - straight shank design

WF Functional width

6 mm

Working process

DDA - External turning,DFA - External form turning,DPA - Profiling external
