Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning A40T-PWLNR08

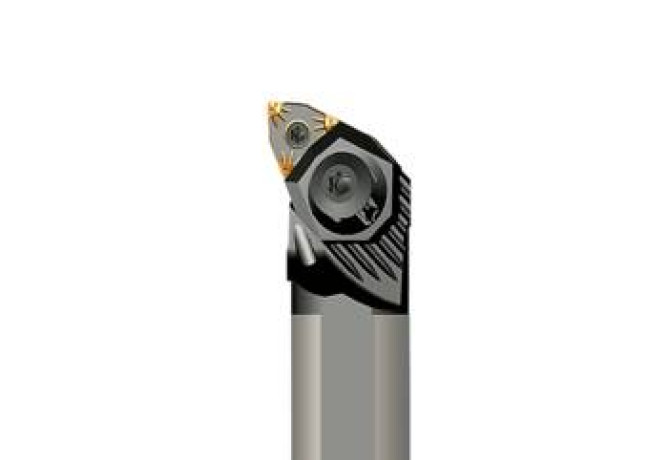

A40T-PWLNR08

A40T-PWLNR08

Seco

Артикул: 75065812

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

7

C1A Insert thickness Pos. A

4.76 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

ZYL04002215

DMIN Minimum bore diameter

50 mm

EPSR Insert included angle

80 Degree

FamilyProducts

A40T-PWLNR08

GAMO Rake angle orthogonal

-5 Degree

HAND Cutting direction

R - Right

ID Technical product number

75065812

Interface codes

J6 /

Interface codes CSW1

/ J441

ISISO A Indicator for ISO cutting plate Pos.A

0

ISO CSW1

ISO$WN0804**2RB****

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

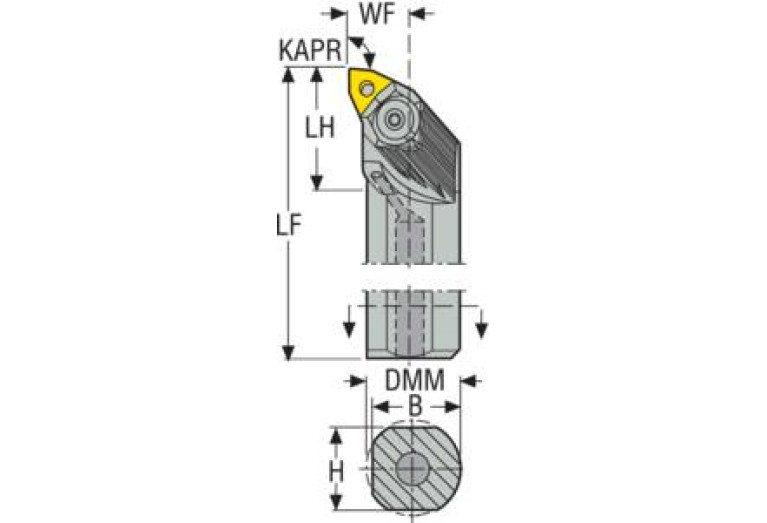

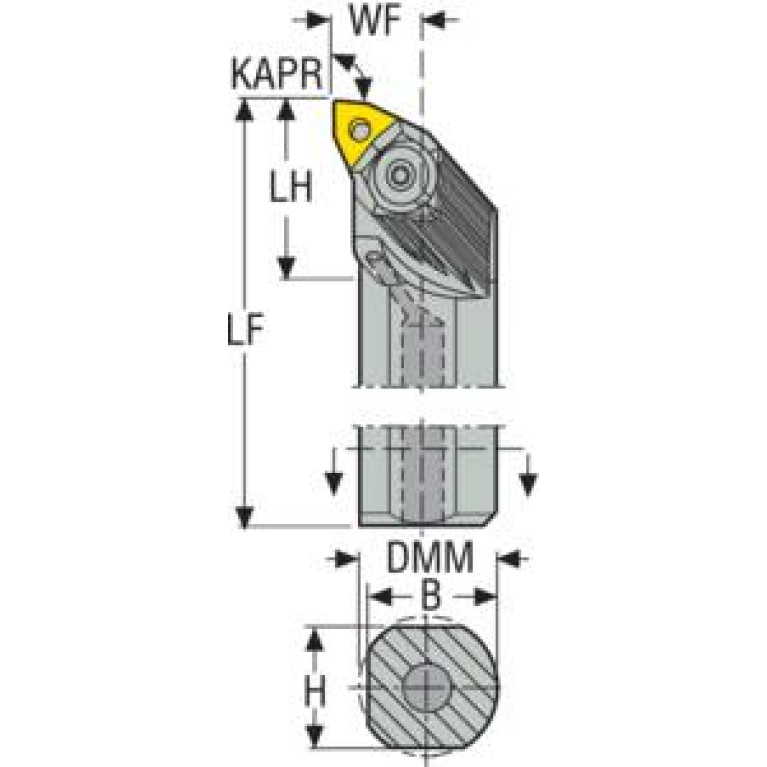

KAPR Tool cutting edge angle

95 Degree

LAMS Inclination angle

-14 Degree

LF Functional length

300 mm

LH Head length

35 mm

LOC-03 B Shank width

38.5 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03 H Shank height

37 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL04002215

MIID Master insert identification

WNGA080408S-01020-L1-C

MTP Clamping type code

W

Name Identifying order number

A40T-PWLNR08

STDDES Standard designation

A40T-PWLNR08

THSC Tool holder shape code

A - offset shank design

WF Functional width

27 mm

Working process

No working processes available

WT Weight of item

2.438 kg
