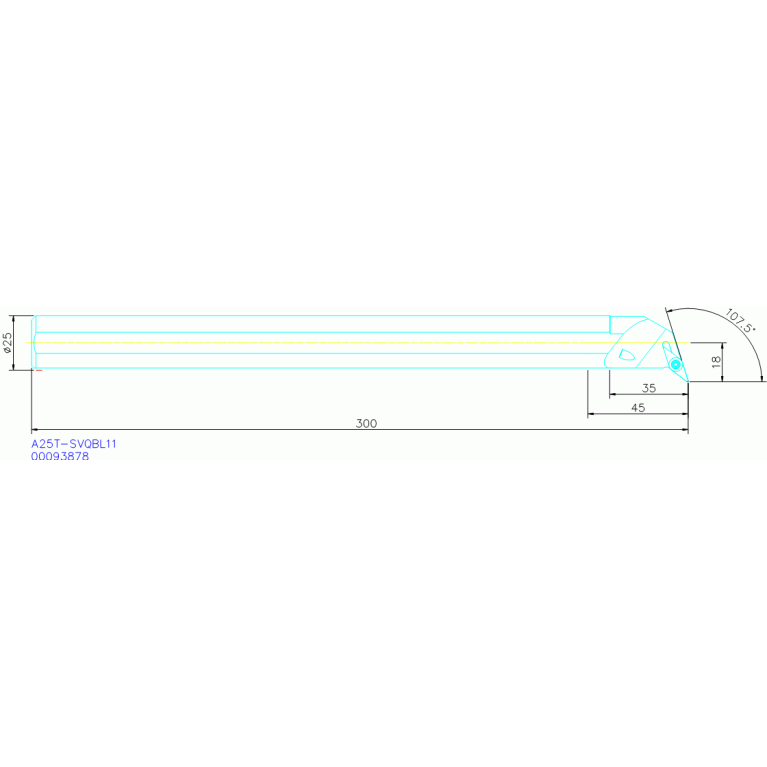

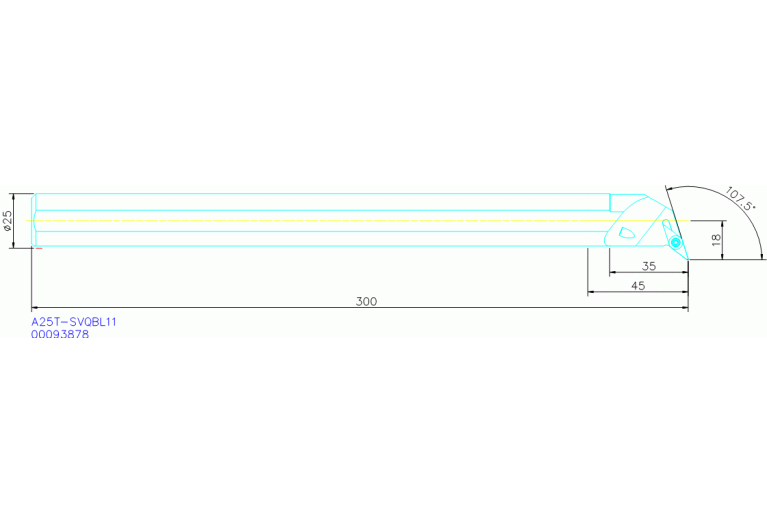

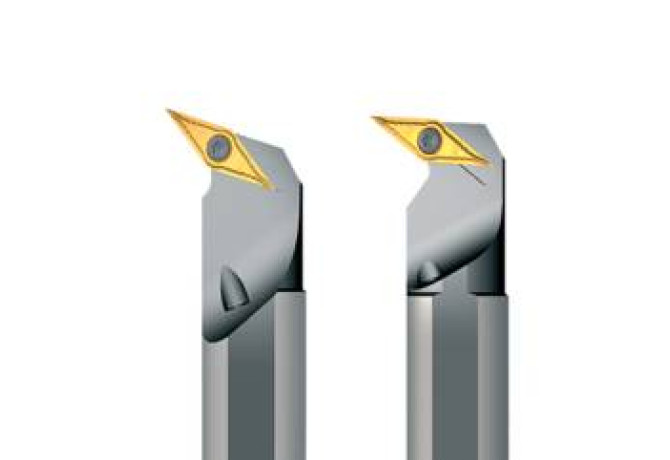

Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning A25T-SVQBL11

A25T-SVQBL11

A25T-SVQBL11

Seco

Артикул: 00093878

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

5 Degree

B3A Inscribed circle diameter Pos. A

6.35 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

2.38 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.1 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

ZYL02502215

DMIN Minimum bore diameter

33 mm

EPSR Insert included angle

35 Degree

FamilyProducts

A25T-SVQBL11

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

L - Left

ID Technical product number

00093878

Interface codes

J6 /

Interface codes CSW1

/ J441

ISISO A Indicator for ISO cutting plate Pos.A

0

ISO CSW1

ISO$VB1102**3LB****

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

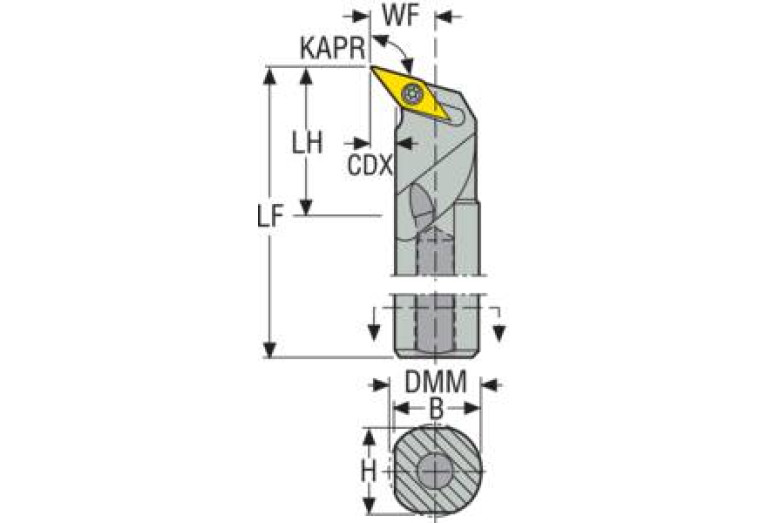

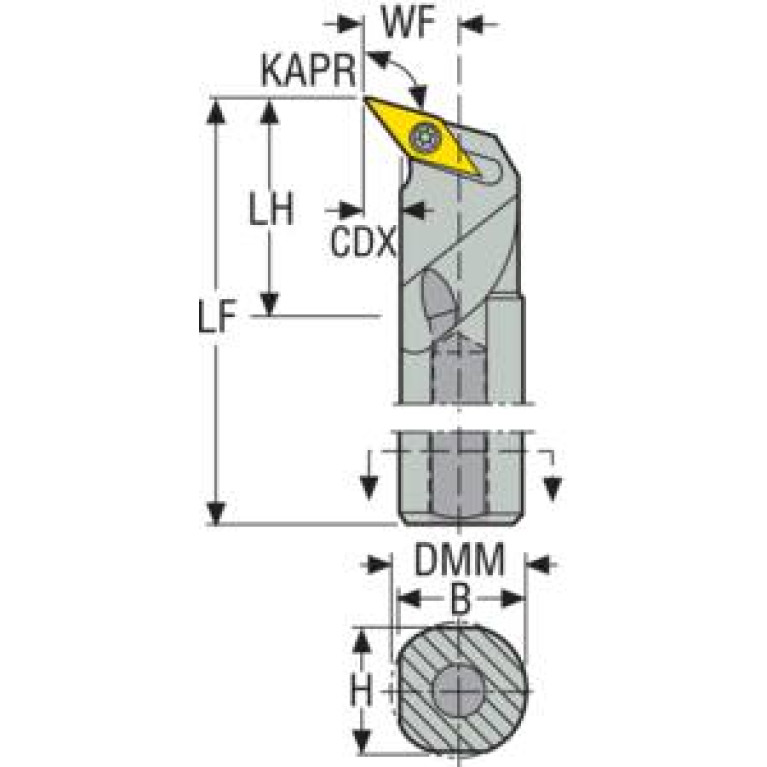

KAPR Tool cutting edge angle

107.5 Degree

LAMS Inclination angle

-4 Degree

LF Functional length

300 mm

LH Head length

35 mm

LOC-03 B Shank width

22.5 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 H Shank height

23 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02502215

MIID Master insert identification

VBGT110201-F1

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

A25T-SVQBL11

STDDES Standard designation

A25T-SVQBL11

WF Functional width

18 mm

Working process

No working processes available

WT Weight of item

0.918 kg
