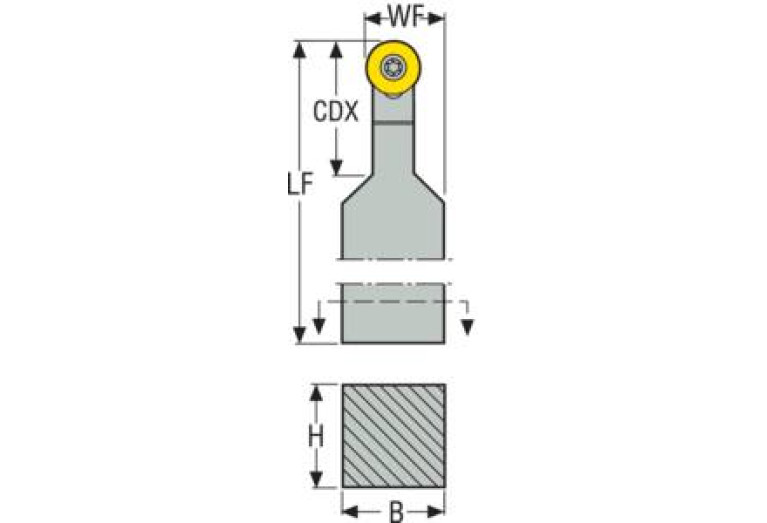

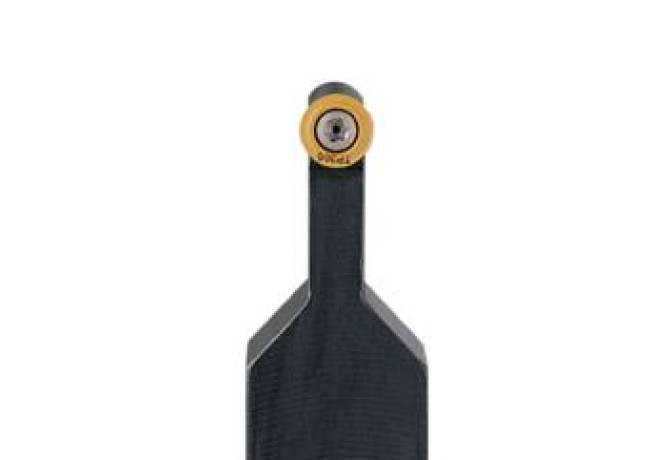

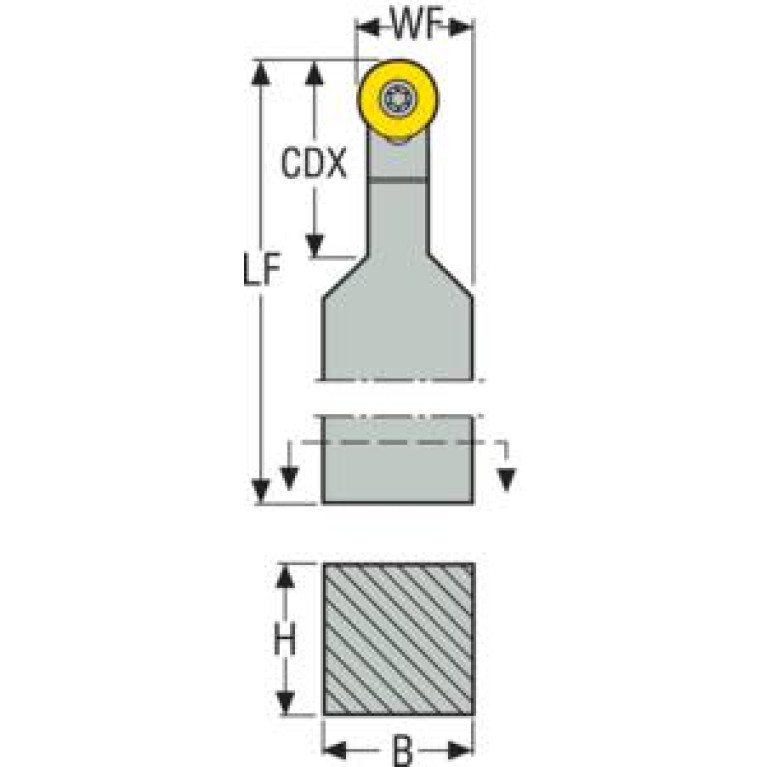

Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning SRDCN1616H08

SRDCN1616H08

SRDCN1616H08

Seco

Артикул: 75011840

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

8 mm

BLDA Tool style code Position A

10

C1A Insert thickness Pos. A

3.18 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/24/2018

DIN

VKT16160105

FamilyProducts

SRDCN1616H08

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

N - Neutral

ID Technical product number

75011840

Interface codes

J6 /

Interface codes CSW1

/ J441

ISISO A Indicator for ISO cutting plate Pos.A

0

ISO CSW1

ISO$RC0803**3NB****

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

45 Degree

LAMS Inclination angle

0 Degree

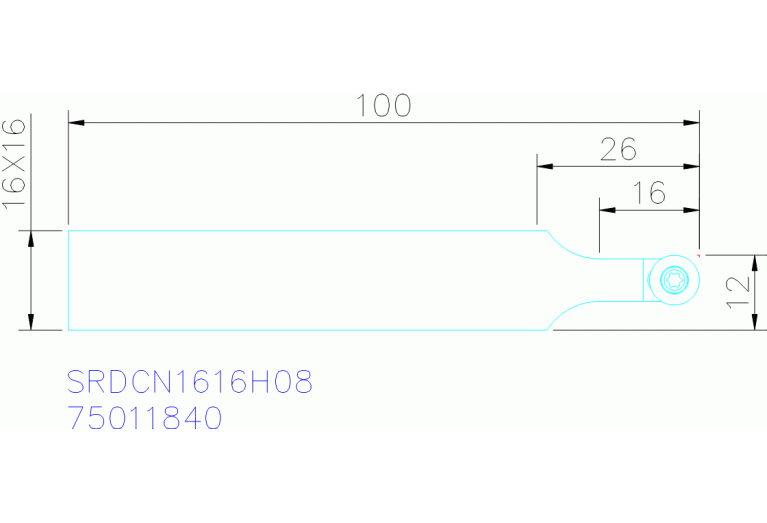

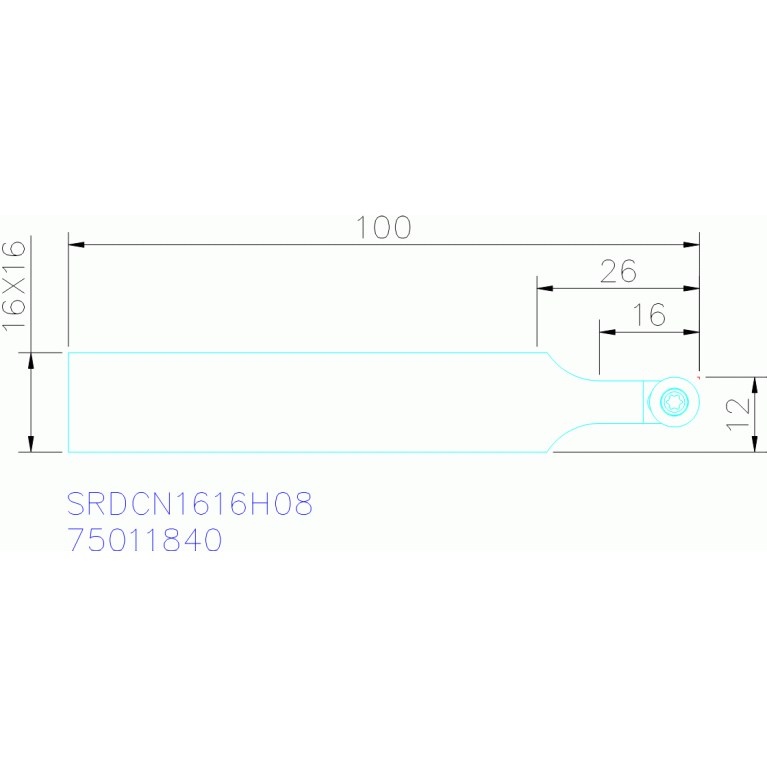

LF Functional length

100 mm

LOC-03 B Shank width

16 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

1616

LOC-03 H Shank height

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT16160105

MIID Master insert identification

RCMT0803M0-F1

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

SRDCN1616H08

STDDES Standard designation

SRDCN1616H08

THSC Tool holder shape code

G - straight shank design

WF Functional width

12 mm

Working process

No working processes available

WT Weight of item

0.186 kg
