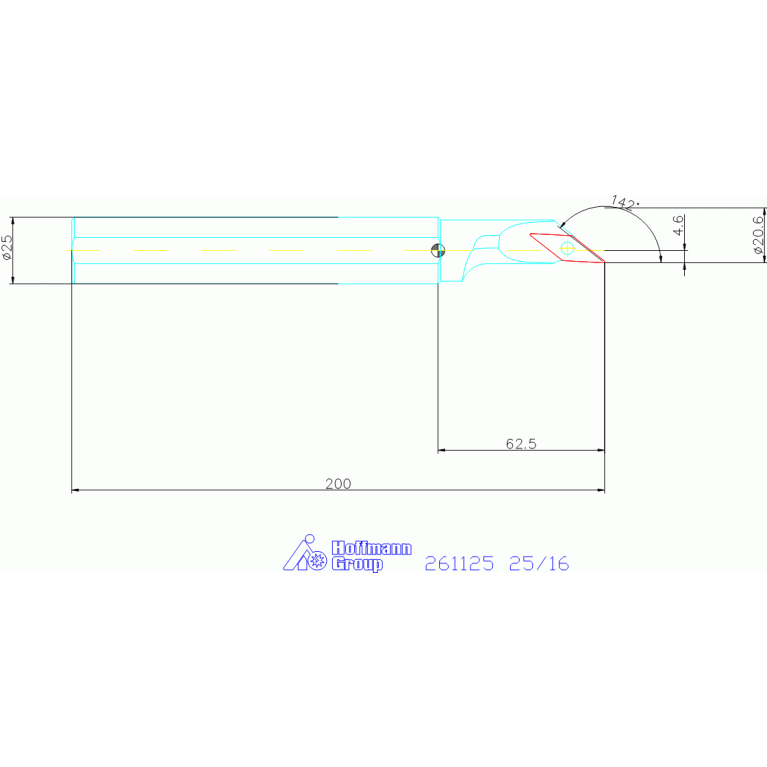

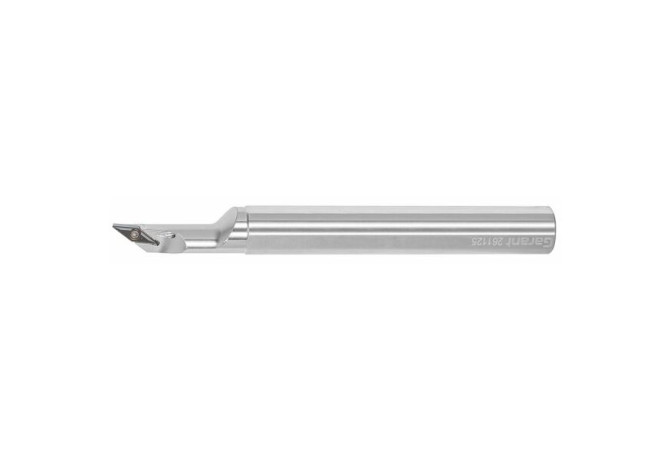

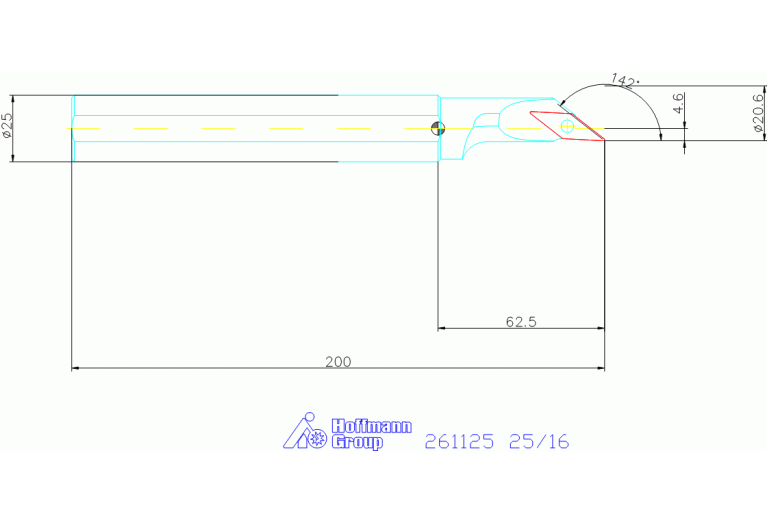

Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning 261125 25/16

261125 25/16

261125 25/16 261125 25/16 261125 25/16

261125 25/16

Hoffmann Group
Артикул: 261125 25/16
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
5 Degree
BDRED Body diameter reduced
16.5 mm
BLDA Tool style code Position A
3
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL02502215
DIN CSW1
VC1604 3N
DMIN Minimum bore diameter
28 mm
EPSR Insert included angle
35 Degree
FamilyProducts
A..SVJB 142° Boring bar left
HAND Cutting direction
L - Left
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
L Cutting edge length
16 mm
LF Functional length
200 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 H Shank height
24 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02502215
LPR Protruding length
44 mm
MIID Master insert identification
VB..1604..
Name Identifying order number
261125 25/16
OAL Overall length
200 mm
STDDES Standard designation
A25R SVJBL16
THSC Tool holder shape code
A - offset shank design
WF Functional width
4.6 mm
Working process
No working processes available
