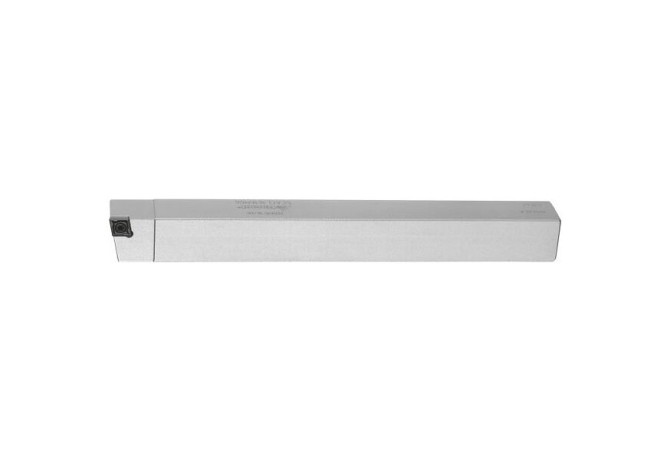

Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning 260015 8/06

260015 8/06

260015 8/06 260015 8/06 260015 8/06

260015 8/06

Hoffmann Group
Артикул: 260015 8/06
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
VKT08080105
DIN CSW1
CC0602043N
EPSR Insert included angle
80 Degree
FamilyProducts
Clamp toolholder
HAND Cutting direction
L - Left
HF Functional height
8 mm
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
90 Degree
L Cutting edge length
6.35 mm
LAMS Inclination angle
0 Degree
LF Functional length
150 mm
LFA A dimension on lf
0 mm
LOC-03 B Shank width
8 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0808
LOC-03 H Shank height
8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT08080105
LPR Protruding length
7.78 mm
MIID Master insert identification
CCM 060204
Name Identifying order number
260015 8/06
OAL Overall length
150 mm
STDDES Standard designation
SCACL0808M06
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
G - straight shank design
WF Functional width
4 mm
WFA A dimension on wf
0 mm
Working process
No working processes available
WT Weight of item
0.075 kg
