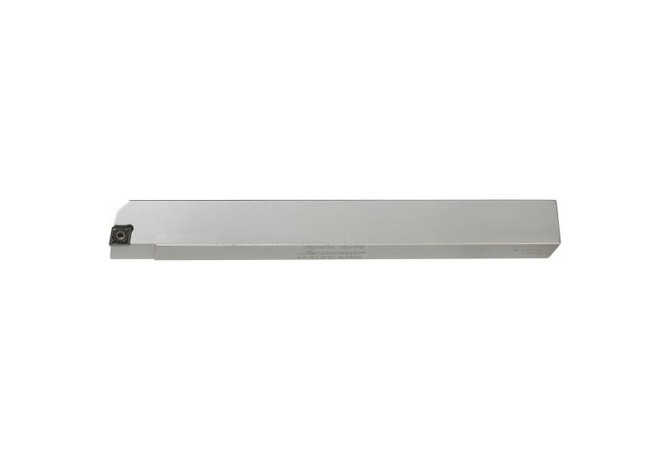

Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning 260014 10/06

260014 10/06

260014 10/06 260014 10/06 260014 10/06

260014 10/06

Hoffmann Group
Артикул: 260014 10/06
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
VKT10100105
DIN CSW1
CC0602043N
EPSR Insert included angle
80 Degree
FamilyProducts
Clamp toolholder
HAND Cutting direction
R - Right
HF Functional height
10 mm
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
90 Degree
L Cutting edge length
6.35 mm
LAMS Inclination angle
0 Degree

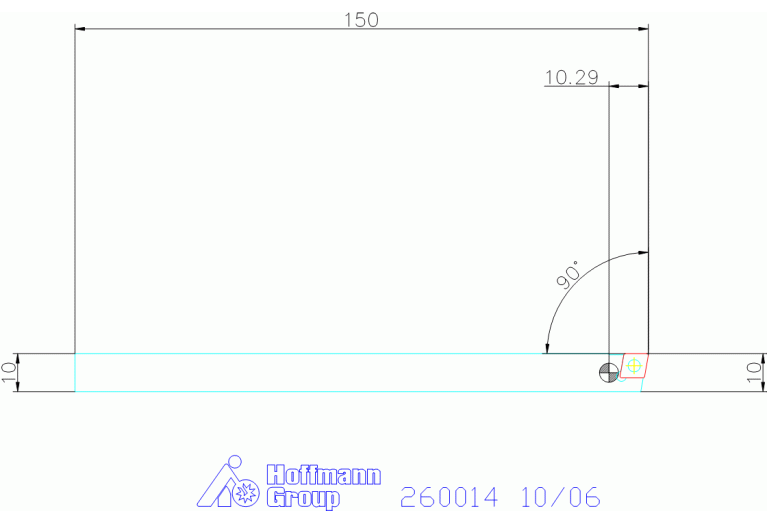

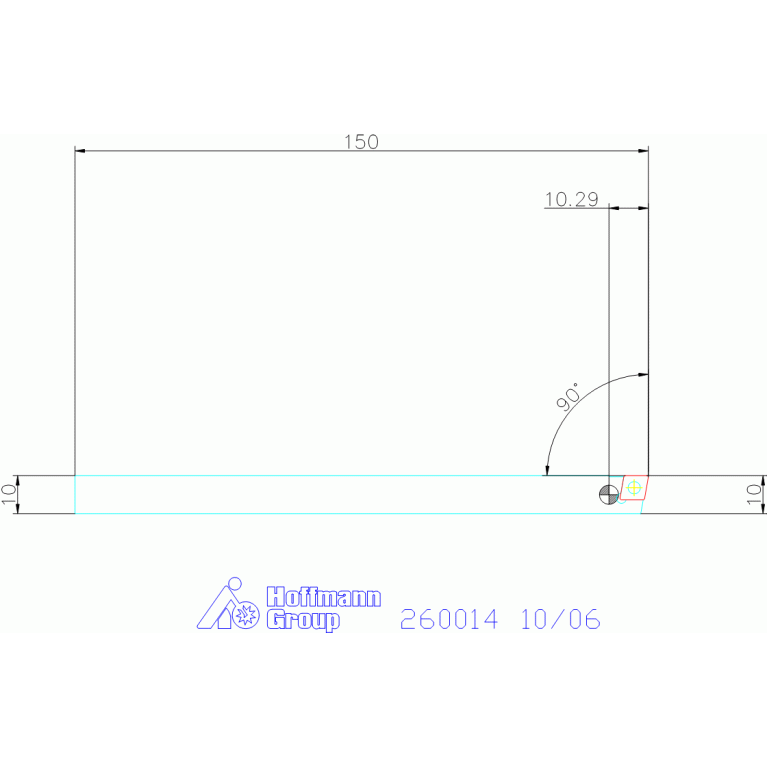

LF Functional length
150 mm
LFA A dimension on lf
0 mm
LOC-03 B Shank width
10 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
1010
LOC-03 H Shank height
10 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT10100105
LPR Protruding length
9.76 mm
MIID Master insert identification
CCM 060204
Name Identifying order number
260014 10/06
OAL Overall length
150 mm
STDDES Standard designation
SCACR1010M06
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
G - straight shank design
WF Functional width
5 mm
WFA A dimension on wf
0 mm
Working process
No working processes available
WT Weight of item
0.118 kg
