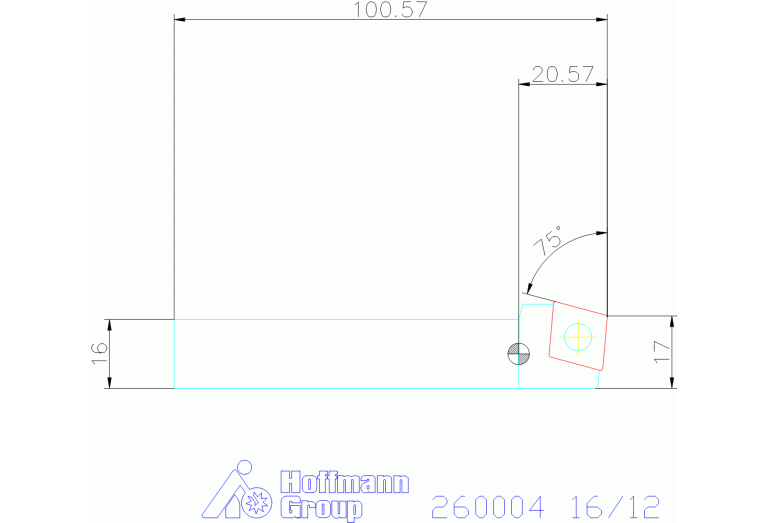

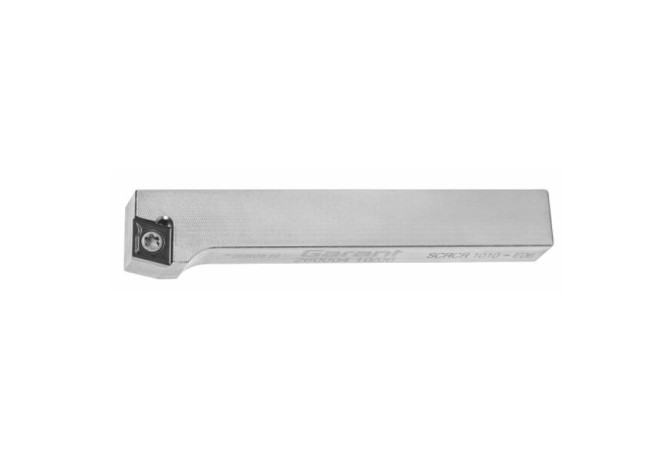

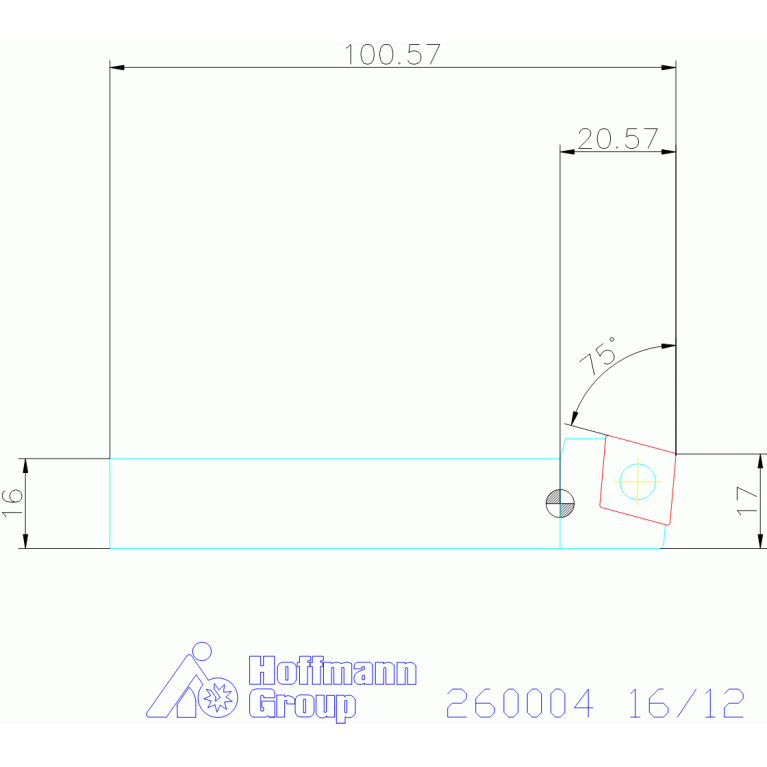

Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning 260004 16/12

260004 16/12

260004 16/12

Hoffmann Group

Артикул: 260004 16/12

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

3

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.2 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

VKT16160105

DIN CSW1

CC1204023N

EPSR Insert included angle

80 Degree

FamilyProducts

Clamp toolholder

HAND Cutting direction

R - Right

HF Functional height

16 mm

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

75 Degree

L Cutting edge length

12.9 mm

LAMS Inclination angle

0 Degree

LF Functional length

88.2 mm

LFA A dimension on lf

11.8 mm

LOC-03 B Shank width

16 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

1616

LOC-03 H Shank height

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT16160105

LPR Protruding length

19.49 mm

MIID Master insert identification

CCGT120402

Name Identifying order number

260004 16/12

OAL Overall length

100 mm

STDDES Standard designation

SCRCR 1616H12

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

9 mm

WFA A dimension on wf

3.7 mm

Working process

No working processes available

WT Weight of item

0.2 kg
