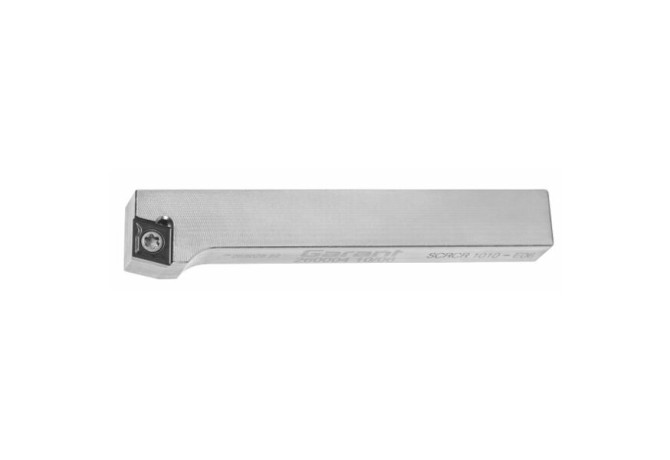

Главная Каталог продукции Toolunited 17 309-01 - Tool holder for longitudinal and transversal turning 260004 12/09

260004 12/09

260004 12/09 260004 12/09 260004 12/09

260004 12/09

Hoffmann Group
Артикул: 260004 12/09
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
9.525 mm
BLDA Tool style code Position A
3
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.2 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
VKT12120105
DIN CSW1
CC09T3023N
EPSR Insert included angle
80 Degree
FamilyProducts
Clamp toolholder
HAND Cutting direction
R - Right
HF Functional height
12 mm
Interface codes
J6 /
Interface codes CSW1
J41 /
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

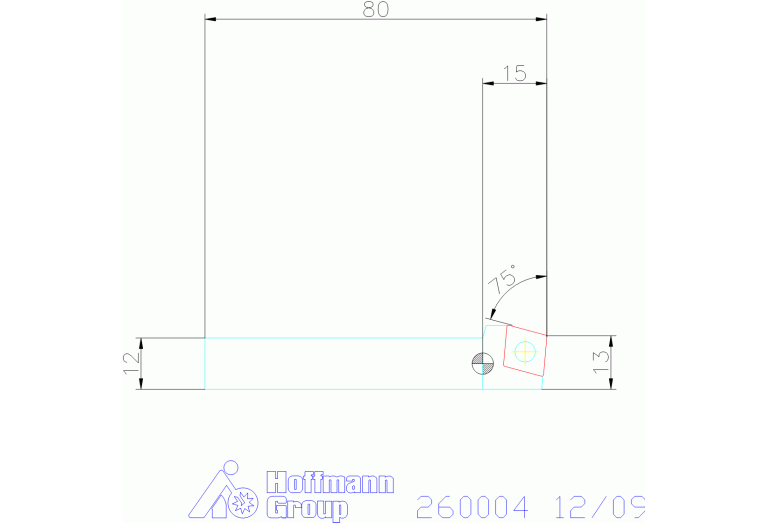

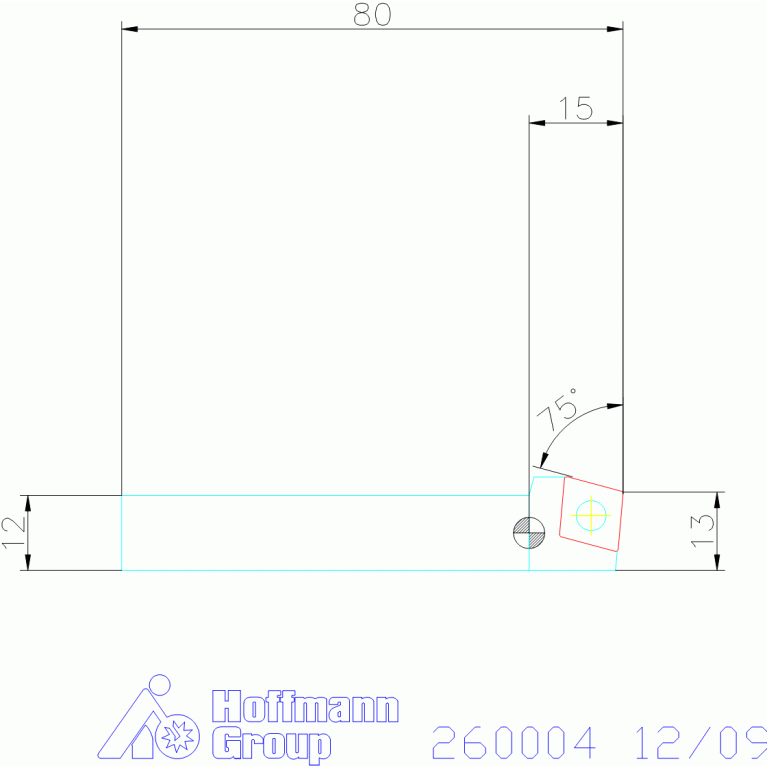

KAPR Tool cutting edge angle
75 Degree
L Cutting edge length
9.7 mm
LAMS Inclination angle
0 Degree
LF Functional length
71.3 mm
LFA A dimension on lf
8.7 mm
LOC-03 B Shank width
12 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
1212
LOC-03 H Shank height
12 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT12120105
LPR Protruding length
14.2 mm
MIID Master insert identification
CCGT09T302
Name Identifying order number
260004 12/09
OAL Overall length
80 mm
STDDES Standard designation
SCRCR 1212F09
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
7 mm
WFA A dimension on wf
2.3 mm
Working process
No working processes available
WT Weight of item
0.89 kg
