Главная Каталог продукции Toolunited 17 203-01 - Replaceable insert with chip flute FCP 126 IC908

FCP 126 IC908

Артикул: 5568106

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

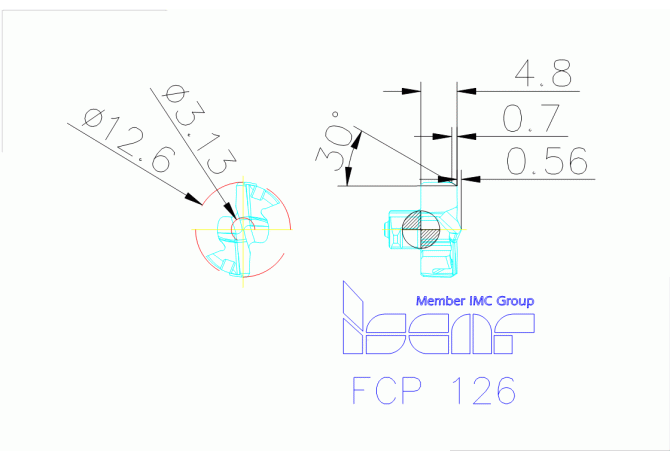

DC Cutting diameter

12.6 mm

DIN

IS-215578389657694

FamilyProducts

Exchangeable Flat Bottom DCN Drill Heads for Steel and Cast Iron (ISO P and ISO K Materials)

GRDMFG Grade manufacturers designation

IC908

ID Technical product number

5568106

Interface codes

J6 / J61

ISO

IS$$215578389657694

ISYC Subclass

203-01 - Replaceable insert with chip flute

LF Functional length

4.1 mm

LOC-03 ISO

IS$$215578389657694

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IS-215578389657694

LPR Protruding length

5.36 mm

Name Identifying order number

FCP 126 IC908

PL Point length

1.26 mm

SIG Point angle 1st step

140 Degree

Working process

BVB - Drilling

WT Weight of item

0 kg
