SPMT120408 KC710

Артикул: SPMT120408 KC710

В наличии

В корзину

Описание

Характеристики

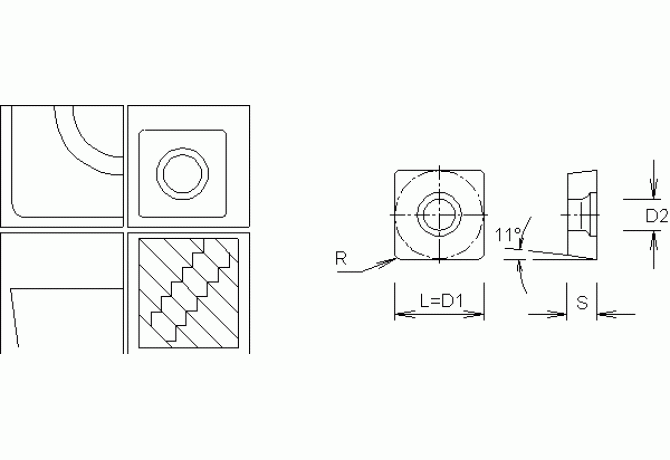

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state

LH - Stocked

DIN

SP1204083N

EPSR Insert included angle

90 Degree

FamilyProducts

Screw On Insert

GRDMFG Grade manufacturers designation

KC710

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KCH Corner chamfer angle

90 Degree

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP1204083N

Name Identifying order number

SPMT120408 KC710

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SPMT120408

STDDESAnsi Standard designation ANSI

SPMT432

TCINS Tolerance class insert

Working process

No working processes available
