Главная Каталог продукции Toolunited 17 201-02 - Square insert SPHX150504R-20 CD4

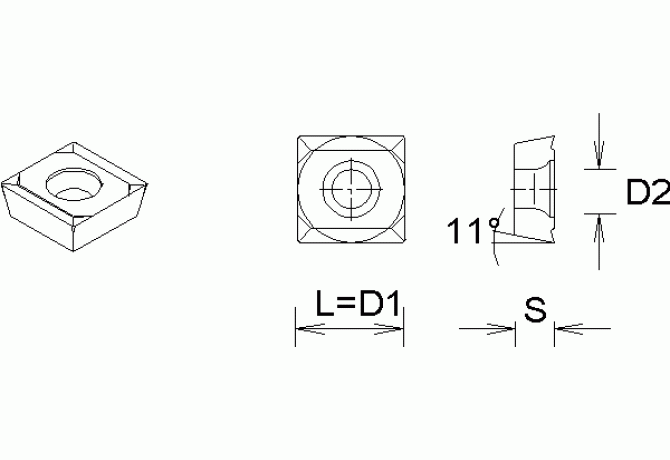

SPHX150504R-20 CD4

Артикул: SPHX150504R-20 CD4

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CBMD Chip breaker manufacturers designation

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state

LH - Stocked

DIN

SP1505 4R

EPSR Insert included angle

90 Degree

FamilyProducts

INSERT SPHX

GAN Insert rake angle

12 Degree

GRDMFG Grade manufacturers designation

CD4

IC Inscribed circle diameter

15.88 mm

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

15.88 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP1505 4R

Name Identifying order number

SPHX150504R-20 CD4

RE Corner radius

0.4 mm

S Insert thickness

5.95 mm

S1 Insert thickness total

5.95 mm

STDDES Standard designation

SPHX150504R

TCINS Tolerance class insert

Working process

No working processes available
