Главная Каталог продукции Toolunited 17 201-02 - Square insert SPHX1205ZCTLT10 P2F

SPHX1205ZCTLT10 P2F

Артикул: SPHX1205ZCTLT10 P2F

В наличии

В корзину

Описание

Характеристики

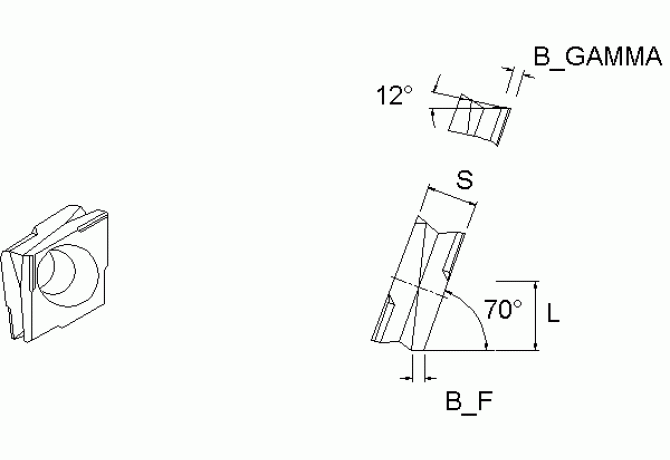

AN Clearance angle major

11 Degree

BN Face land width

5.5 mm

CHW Corner chamfer width

12.7 mm

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

Delivery state

LH - Stocked

DIN

SP1205ZC4L

EPSR Insert included angle

90 Degree

FamilyProducts

FIX-PERFECT INSERT MILLING 8S

GRDMFG Grade manufacturers designation

P2F

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP1205ZC4L

Name Identifying order number

SPHX1205ZCTLT10 P2F

RE Corner radius

0.1 mm

S Insert thickness

5 mm

S1 Insert thickness total

5 mm

STDDES Standard designation

SPHX1205ZCTL

TCINS Tolerance class insert

Working process

No working processes available
