SPHX1205PCERGNT1W KB1340

Артикул: SPHX1205PCERGNT1W KB1340

В наличии

В корзину

Описание

Характеристики

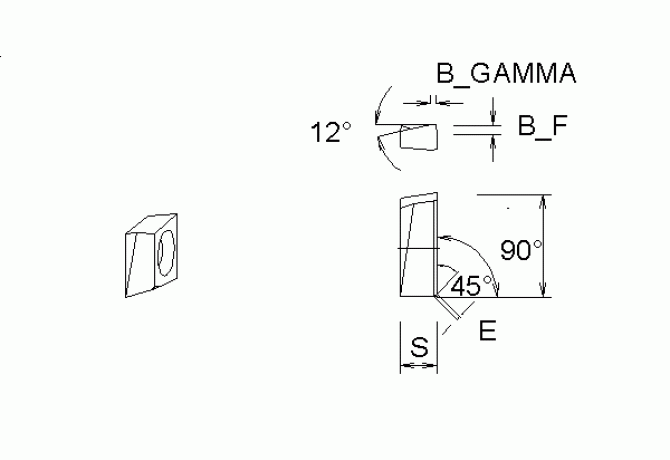

AN Clearance angle major

11 Degree

CECC Cutting edge condition code

E - Rounded

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

Delivery state

LH - Stocked

DIN

SP1205PC7R

EPSR Insert included angle

90 Degree

FamilyProducts

FIX-PERFECT INSERT MILLING 1C

GRD2ND Standard designation of the grade 2nd application

BN-K30

GRDMFG Grade manufacturers designation

KB1340

GRDPRIO Standard designation of the grade main application

BN-K10

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

10.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP1205PC7R

Name Identifying order number

SPHX1205PCERGNT1W KB1340

S Insert thickness

5.5 mm

S1 Insert thickness total

5.5 mm

STDDES Standard designation

SPHX1205PCER

TCINS Tolerance class insert

Working process

No working processes available
