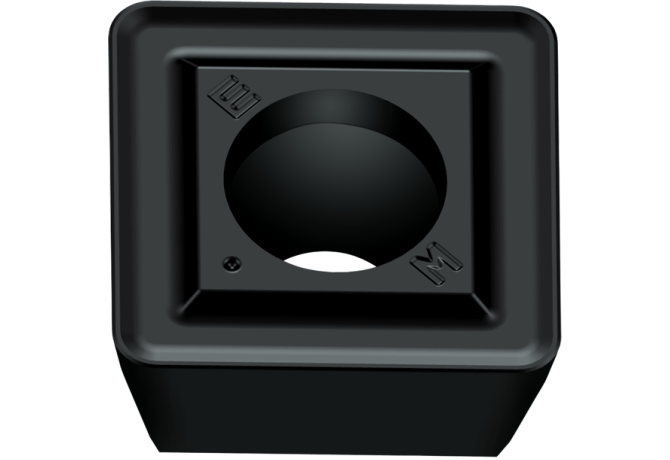

SPGT140512-EM YBG212

SPGT140512-EM YBG212

ZCC Cutting Tools
Артикул: SPGT140512-EM YBG212
В наличии
В корзину

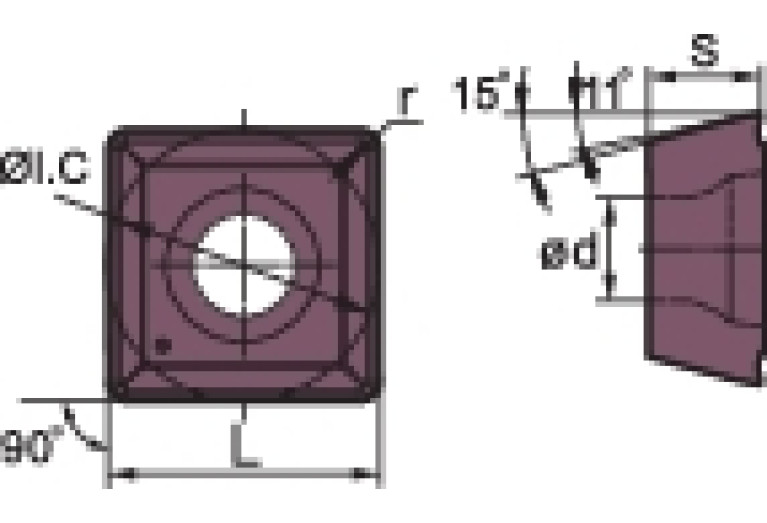

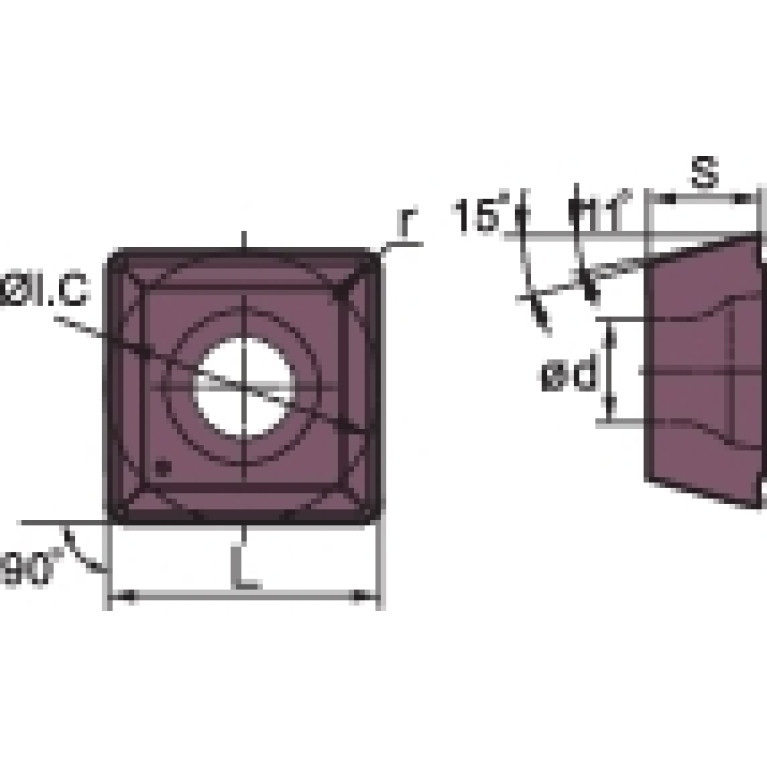

Характеристики
AN Clearance angle major
11 Degree
CBMD Chip breaker manufacturers designation
EM
COMPC Company code
ZCC - ZCC Cutting Tools
D1 Fixing hole diameter
5.75 mm
Delivery state valid from
0.11 kg
DIN
ZCC-SPGT1405
EPSR Insert included angle
90 Degree
FamilyProducts
SP** drilling insert
GRDMFG Grade manufacturers designation
YBG212
IC Inscribed circle diameter
14.3 mm
ID Identifying order number
SPGT140512-EM YBG212
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-02 - Square insert
L Cutting edge length
14.3 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
ZCC-SPGT1405
RE Corner radius
1.2 mm
S Insert thickness
5.2 mm
S1 Insert thickness total
5.2 mm
TCINS Tolerance class insert
G
Working process
No working processes available
