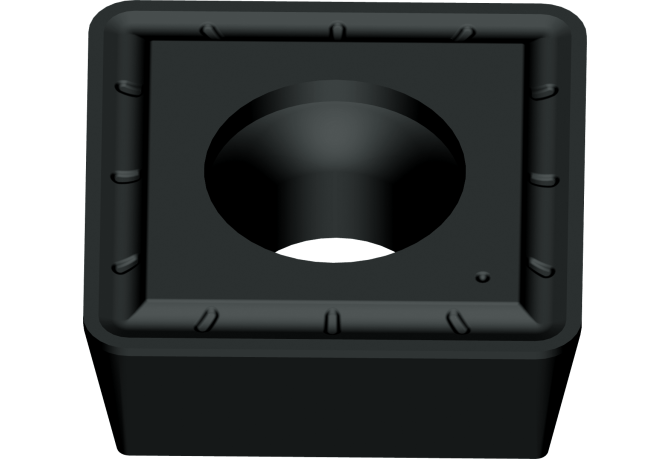

SPGT07T308-PM YB6338

Артикул: SPGT07T308-PM YB6338

В наличии

В корзину

Описание

Характеристики

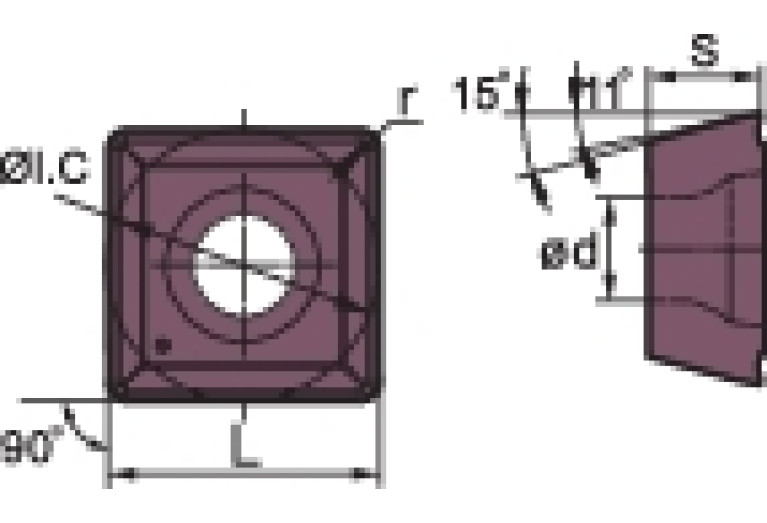

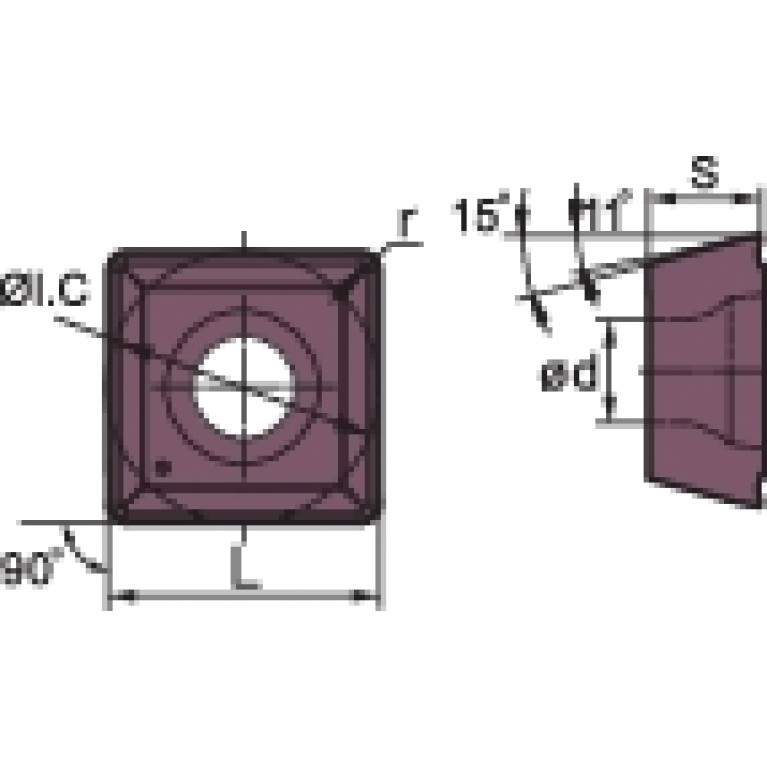

AN Clearance angle major

11 Degree

COMPC Company code

ZCC - ZCC Cutting Tools

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

0.02 kg

DIN

ZCC-SPGT07T3

EPSR Insert included angle

90 Degree

FamilyProducts

SP** drilling insert

GRDMFG Grade manufacturers designation

YB6338

IC Inscribed circle diameter

7.94 mm

ID Identifying order number

SPGT07T308-PM YB6338

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

7.94 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

ZCC-SPGT07T3

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

TCINS Tolerance class insert

Working process

No working processes available
