Главная Каталог продукции Toolunited 17 201-02 - Square insert SPGN090304 883

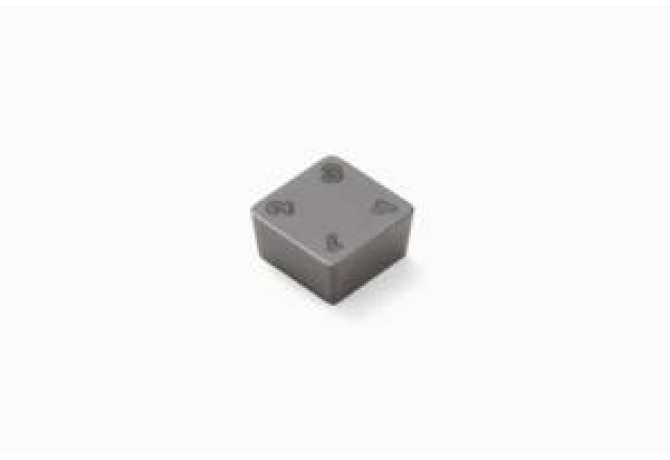

SPGN090304 883

Артикул: 00047649

В наличии

В корзину

Описание

Характеристики

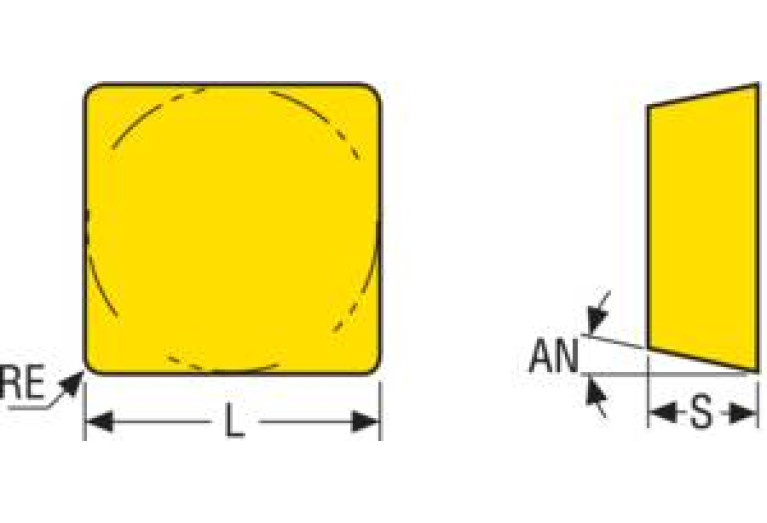

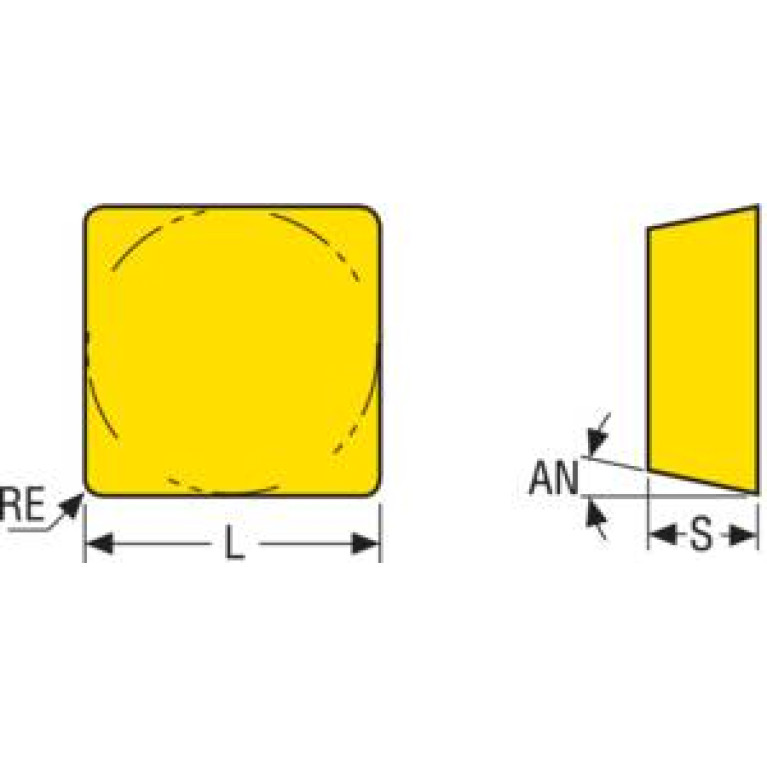

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

SO - SECO Tools

Delivery state valid from

4/24/2018

DIN

SP0903041N

EPSR Insert included angle

90 Degree

FamilyProducts

SPGN090304 883

GRDMFG Grade manufacturers designation

883

IC Inscribed circle diameter

9.52 mm

ID Technical product number

00047649

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$SP0903041NA$$04

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.52 mm

LE Cutting edge effective length

8.6 mm

LOC-03 ISO

ISO$SP0903041NA$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP0903041N

MIID Master insert identification

SPGN090304 883

Name Identifying order number

SPGN090304 883

NameAnsi Identifying order number inch alternative

SPG321F 883

NOI Insert index count

RE Corner radius

0.4 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SPGN090304

STDDESAnsi Standard designation ANSI

SPGN321

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.004 kg
