SPCB090308T KC730

Артикул: SPCB090308T KC730

В наличии

В корзину

Описание

Характеристики

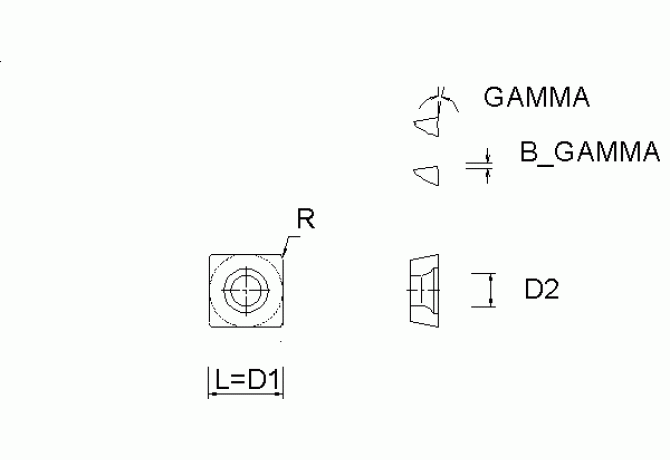

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4 mm

Delivery state

LH - Stocked

DIN

SP0903084N

EPSR Insert included angle

90 Degree

FamilyProducts

ISO INSERT MILLING

GRDMFG Grade manufacturers designation

KC730

IC Inscribed circle diameter

9.525 mm

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.525 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP0903084N

Name Identifying order number

SPCB090308T KC730

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SPCB090308T

STDDESAnsi Standard designation ANSI

SPCB322T

TCINS Tolerance class insert

Working process

No working processes available
