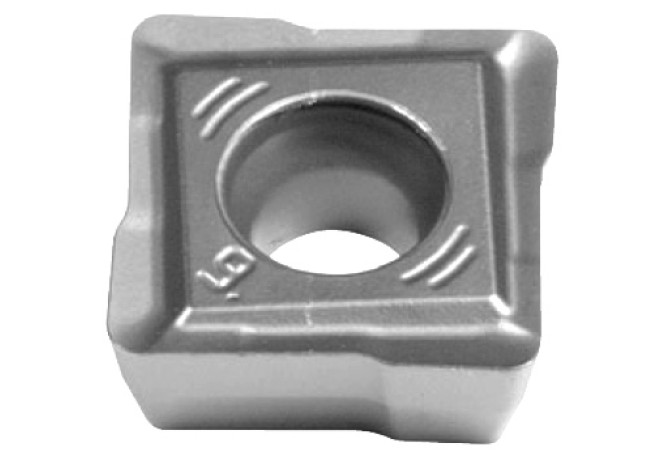

SONT 031804ER-M30 CTPP430

Артикул: 11889300

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

8 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

PVD TiAlN

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.1 mm

DIN

SO0318043R

EPSR Insert included angle

90 Degree

FamilyProducts

drilling insert

GB Face land angle

12 Degree

GRD2ND Standard designation of the grade 2nd application

HC-M25

GRD3RD Standard designation of the grade 3rd application

HC-S25

GRDMFG Grade manufacturers designation

CTPP430

GRDPRIO Standard designation of the grade main application

HC-P30

IC Inscribed circle diameter

4.3 mm

ID Technical product number

11889300

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

3.9 mm

LE Cutting edge effective length

4.3 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SO0318043R

Name Identifying order number

SONT 031804ER-M30 CTPP430

RE Corner radius

0.4 mm

S Insert thickness

1.8 mm

S1 Insert thickness total

1.8 mm

STDDES Standard designation

SONT031804ER

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

BVB - Drilling
