SNXF120412SNGP TN5515

SNXF120412SNGP TN5515

Kennametal
Артикул: SNXF120412SNGP TN5515
В наличии
В корзину
Характеристики
AN Clearance angle major
0 Degree
COMPC Company code
KH - Kennametal
CSP Coolant supply property
0 - Without coolant supply
Delivery state valid from
1/4/2011
DIN
SN1204121N
EPSR Insert included angle
90 Degree
FamilyProducts

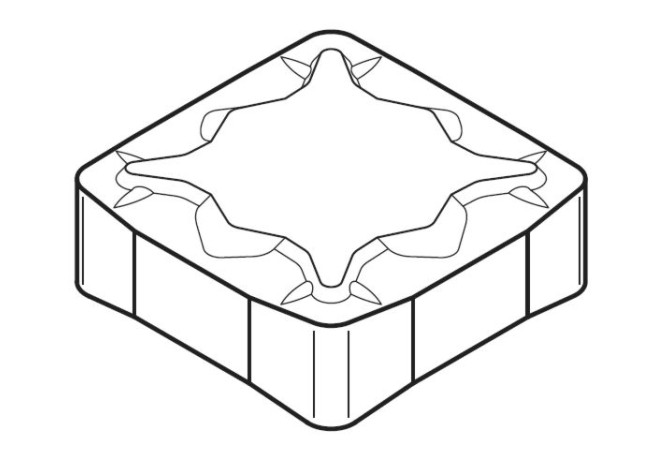

insert for KSSR Face Mill, SNXF type
GRDMFG Grade manufacturers designation
TN5515
IC Inscribed circle diameter
12.7 mm
IFS Insert mounting style code
1 - Without bore
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-02 - Square insert
L Cutting edge length
12.7 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SN1204121N
Name Identifying order number
SNXF120412SNGP TN5515
RE Corner radius
1.2 mm
S Insert thickness
4.76 mm
S1 Insert thickness total
4.76 mm
STDDES Standard designation
SNXF120412SNGP
STDDESAnsi Standard designation ANSI
SNXF433SNGP
Working process
No working processes available
