SNMX190640S-WT5 KC9025

SNMX190640S-WT5 KC9025

Kennametal
Артикул: SNMX190640S-WT5 KC9025
В наличии
В корзину
Характеристики
AN Clearance angle major
0 Degree
COATN Coating / Покрытие
CVD
COMPC Company code
KH - Kennametal
CSP Coolant supply property
0 - Without coolant supply

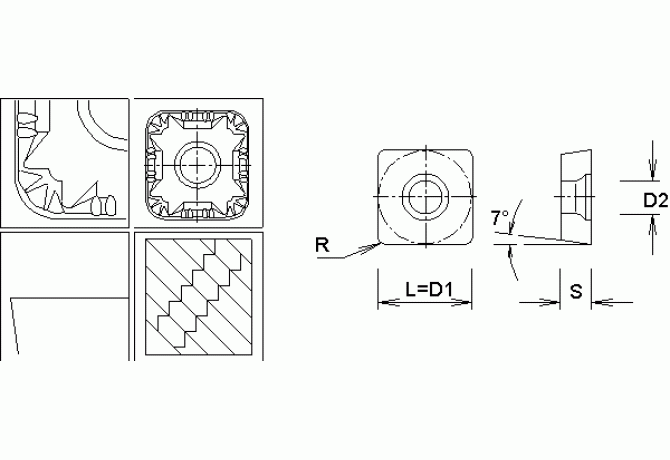

D1 Fixing hole diameter
6.35 mm
Delivery state
LH - Stocked
DIN
KH-WP KL SNMX1906
EPSR Insert included angle
90 Degree
FamilyProducts
Top Notch Insert
GRDMFG Grade manufacturers designation
KC9025
IC Inscribed circle diameter
19.05 mm
IFS Insert mounting style code
7 - Prismatic clamping, concave
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-02 - Square insert
KCH Corner chamfer angle
90 Degree
L Cutting edge length
19.05 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
KH-WP KL SNMX1906
Name Identifying order number
SNMX190640S-WT5 KC9025
RE Corner radius
4 mm
S Insert thickness
6.35 mm
S1 Insert thickness total
6.35 mm
STDDES Standard designation
SNMX190640S-WT5
TCINS Tolerance class insert
M
Working process
No working processes available
